Where is the fuse

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by believe456, Jul 5, 2018.

  1. Jul 5, 2018 #1
    believe456

    believe456 Light Load Member

    191
    22
    Apr 22, 2015
    0
    2006 Volvo 670. Where is the fuse located for 5th wheel air bags and diff lock. None of them are working. And it’s not labeled on panel

    believe456, Jul 5, 2018
    believe456, Jul 5, 2018
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jul 5, 2018 #2
    Working2party

    Working2party Medium Load Member

    608
    729
    Feb 10, 2018
    Kansas
    0
    I’ll tell you up front I don’t know anything about Volvo. But most trucks operate those items with air. And your problem would be a valve mounted on your secondary air tank that operates these accessories which is probably stuck.

    But Volvo could be different.

    Working2party, Jul 5, 2018
    Working2party, Jul 5, 2018
    #2
  4. Jul 6, 2018 #3
    believe456

    believe456 Light Load Member

    191
    22
    Apr 22, 2015
    0
    I think it’s electrical. Because the indicator light isn’t showing it has been selected

    believe456, Jul 6, 2018
    believe456, Jul 6, 2018
    #3
  5. Jul 6, 2018 #4
    believe456

    believe456 Light Load Member

    191
    22
    Apr 22, 2015
    0
    The light usually lights up when i press it and i get a message on the dash that tells me as well

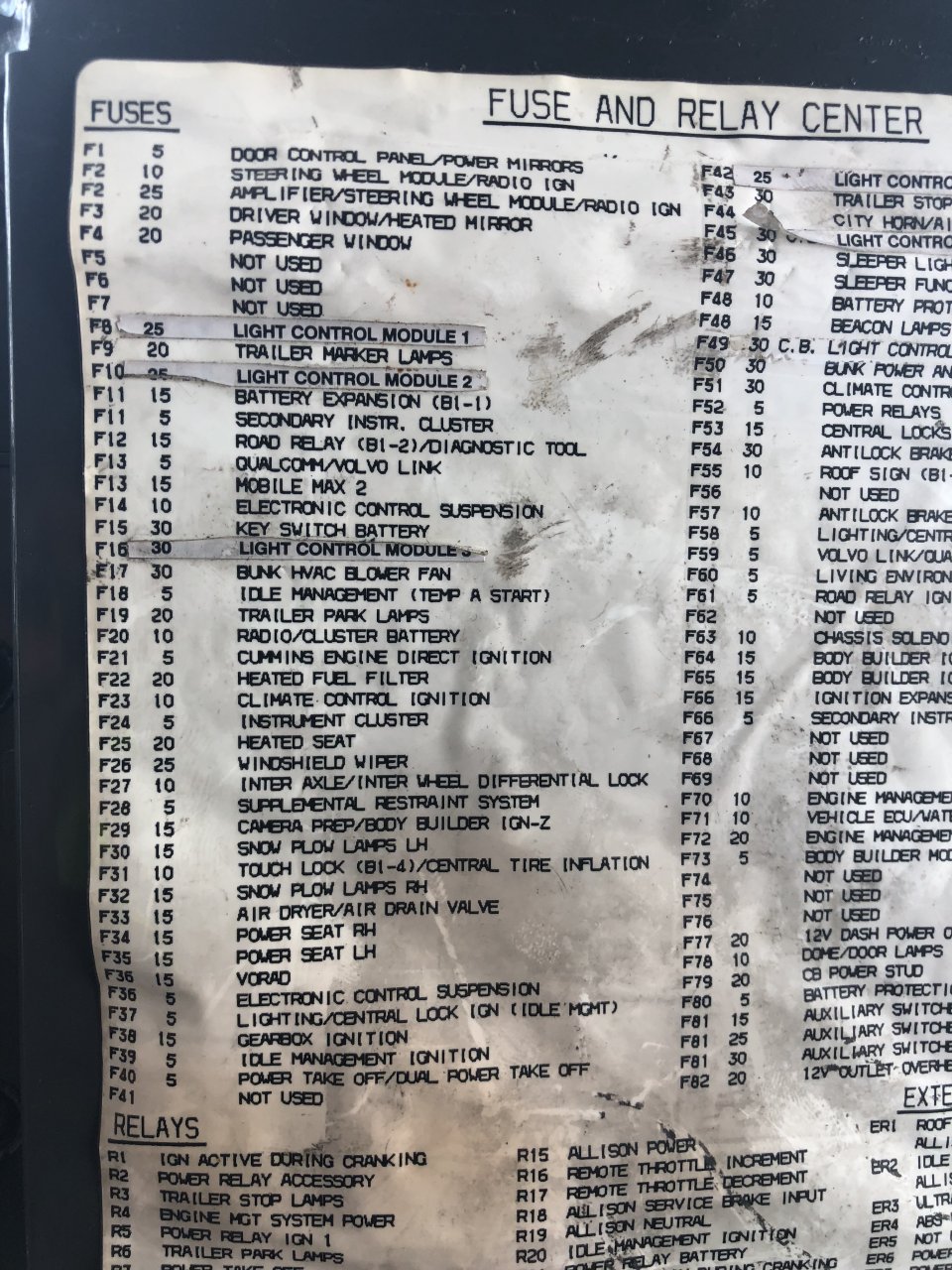

    Attached Files:

    believe456, Jul 6, 2018
    believe456, Jul 6, 2018
    #4
  7. Jul 6, 2018 #5
    DieselTech_Aus

    DieselTech_Aus Light Load Member

    274
    309
    Dec 20, 2017
    WA
    0
    F16 is diff lock fuse
    F23 is air suspension

    F01-F40 fuses are in the front facing fuse panel F40 and up are in top fuse panel.

    as far as the web reckons

    DieselTech_Aus, Jul 6, 2018
    DieselTech_Aus, Jul 6, 2018
    #5
  8. Jul 6, 2018 #6
    believe456

    believe456 Light Load Member

    191
    22
    Apr 22, 2015
    0

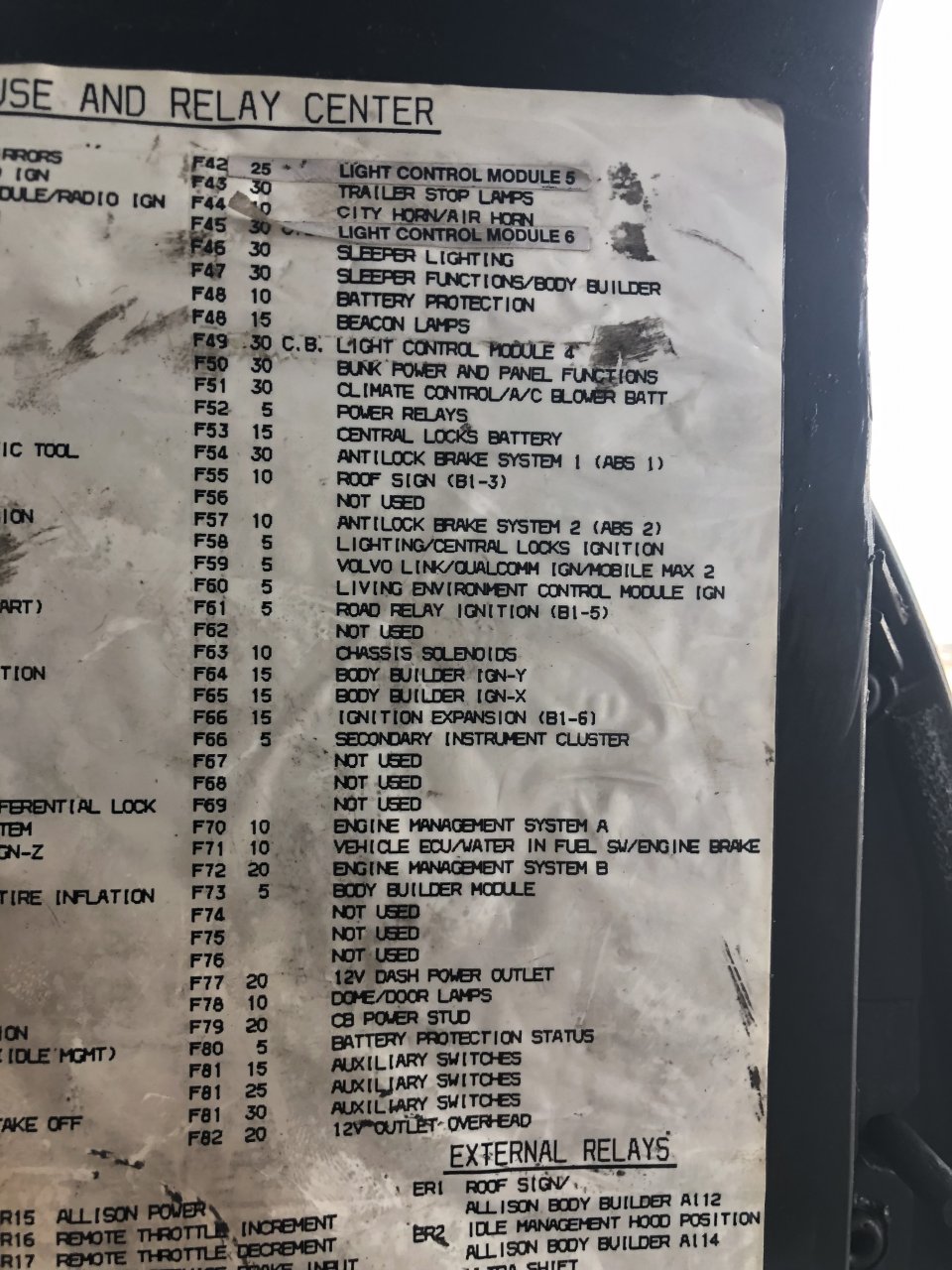

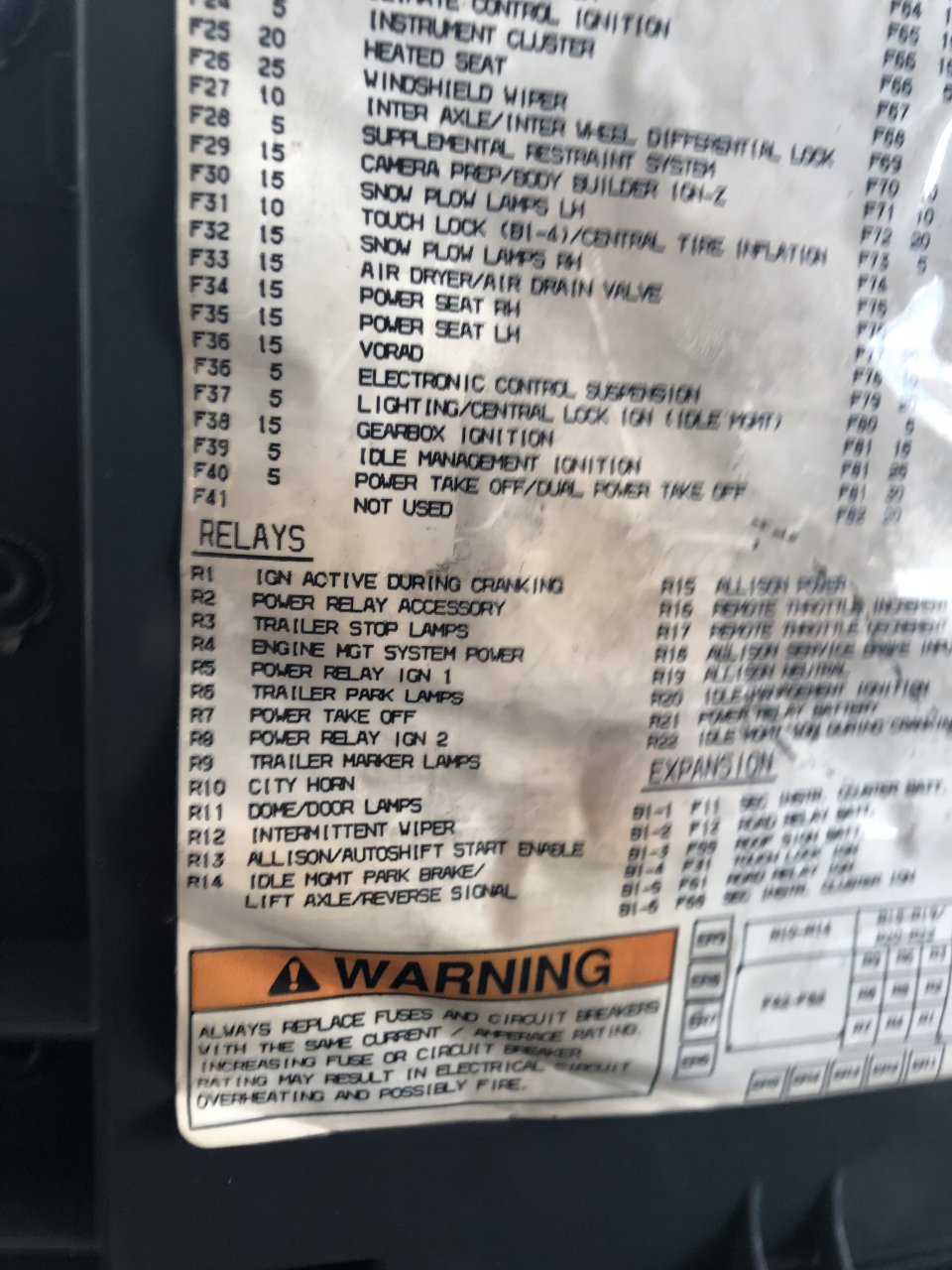

    Attached Files:

    believe456, Jul 6, 2018
    believe456, Jul 6, 2018
    #6
  9. Dec 8, 2021 #7
    PatrickWilliams

    PatrickWilliams Bobtail Member

    1
    0
    Dec 8, 2021
    0
    Did you find the problem? I got same problem on my 2014 Volvo vnl670

    PatrickWilliams, Dec 8, 2021
    PatrickWilliams, Dec 8, 2021
    #7
