Trying to replace hood hinge pins and bushings.

Discussion in 'Trucks [ Eighteen Wheelers ]' started by insertnamehere, May 17, 2016.

  1. insertnamehere

    insertnamehere Light Load Member

    111
    122
    Dec 16, 2013
    0

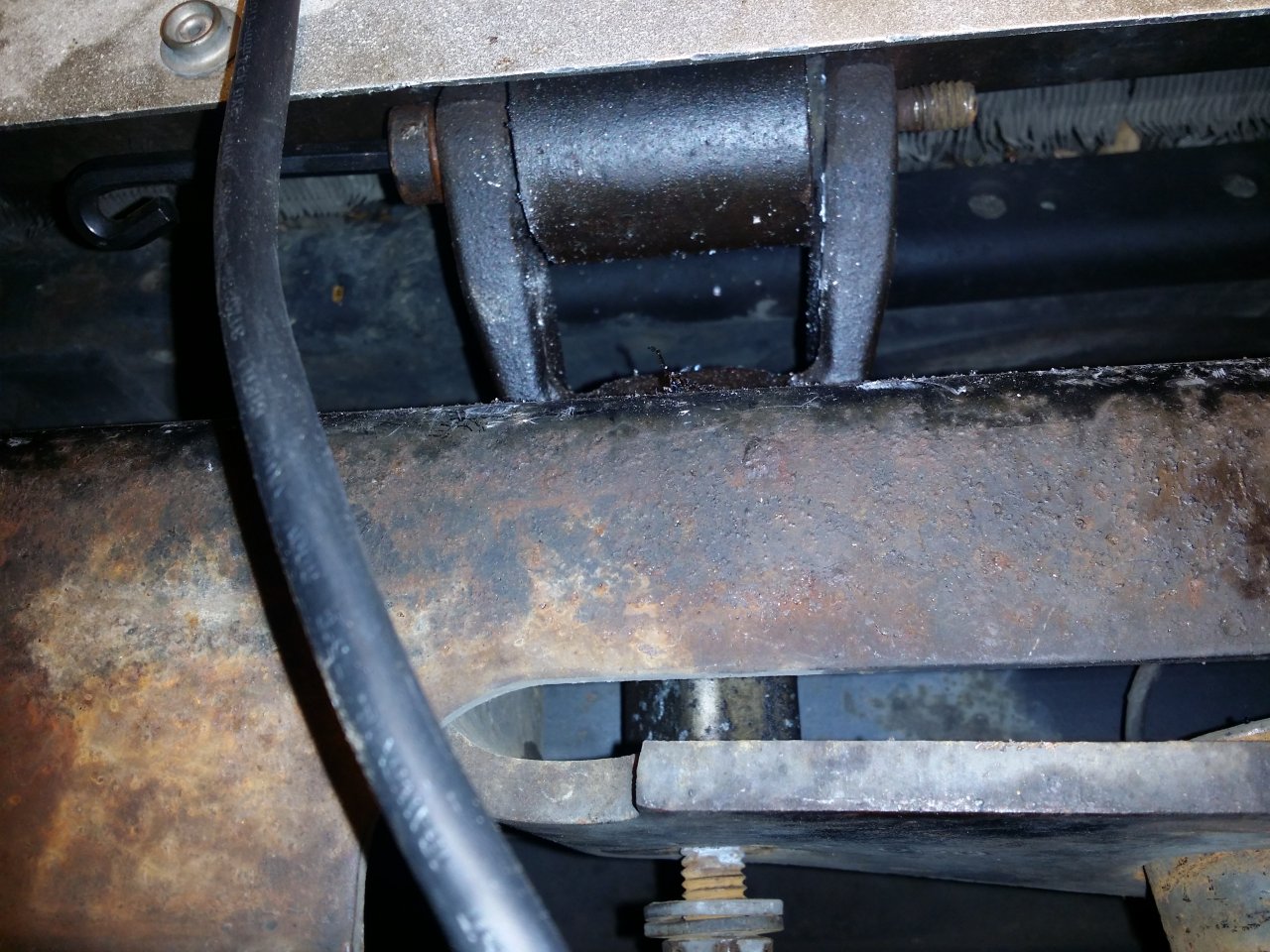

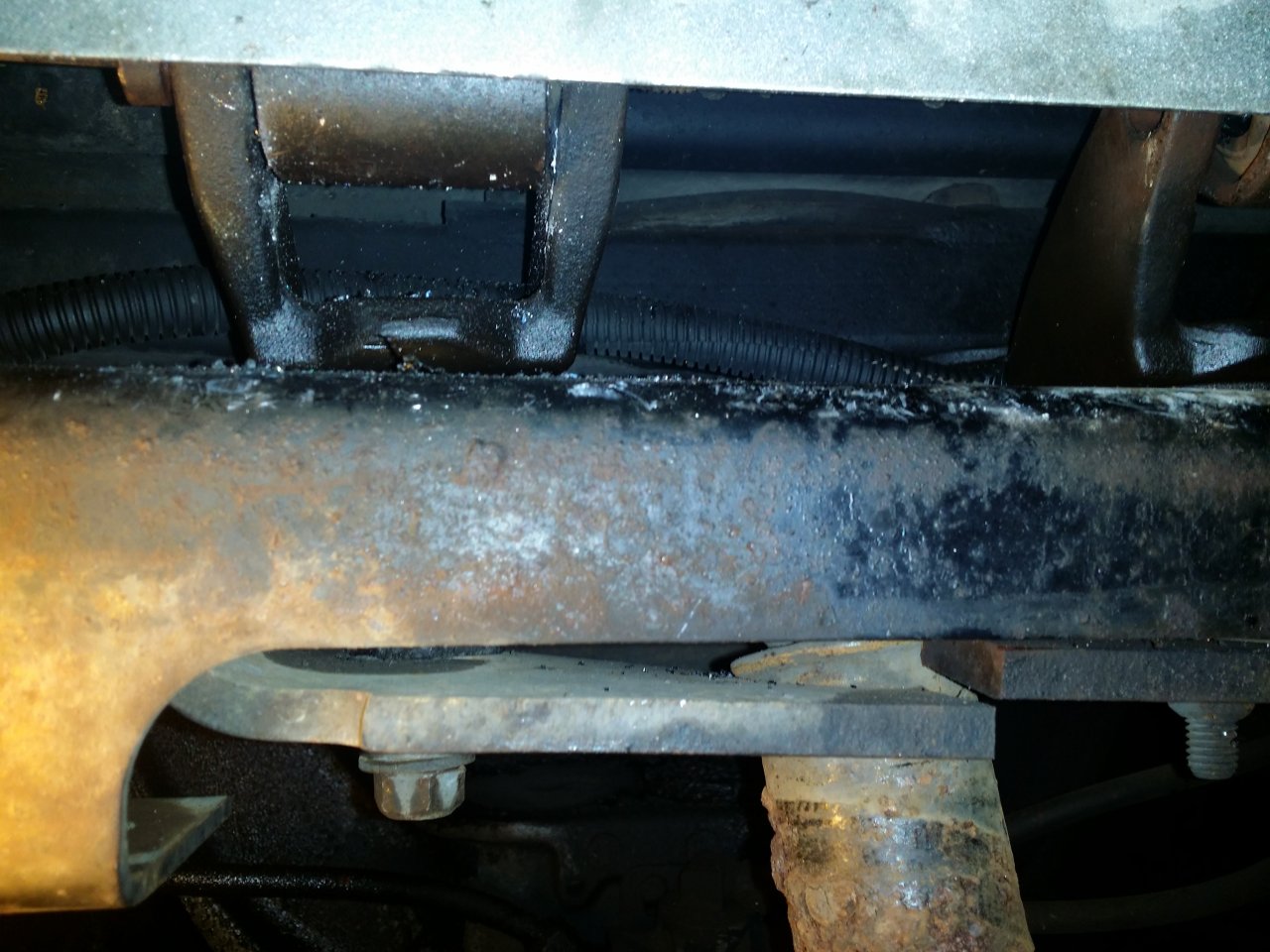

    This truck is whupping my butt. Got the drivers side to come out easy but the passenger side is winning. I've even pulled out my reciprocating saw and tried cutting the pin. Wife came outside and made me quit because I was making to much noise. There's not a lot of room so now im going to try and remove the entire hinge assembly. I've unbolted it from the bottom but it's not moving. Any suggestions? 20160517_214640.jpg 20160517_214635.jpg


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. xsetra

    xsetra Road Train Member

    5,094
    6,940
    Aug 21, 2011
    0
    Cutting torch on the bolts. Wet everything first. If you have a helper they can spray area while you're cutting. This will minimize surrounding damage or prevent any damage. Good luck

    insertnamehere Thanks this.
  4. The Admiral

    The Admiral Heavy Load Member

    894
    561
    Jul 18, 2010
    Akron,Ohio
    0
    Put a bottle jack under the end of the bolt and try putting some pressure on it.

  5. tommymonza

    tommymonza Road Train Member

    4,519
    12,848
    Sep 10, 2013
    S.W. Florida
    0
    Air chisel with a drift bit.

    insertnamehere Thanks this.
  6. insertnamehere

    insertnamehere Light Load Member

    111
    122
    Dec 16, 2013
    0
    This is what im trying next.

    tommymonza Thanks this.
  7. DL550CAT

    DL550CAT Road Train Member

    1,427
    1,482
    Oct 18, 2009
    Waynesburg, Pa
    0
    I
    If the recip. saw was to loud she's really not gonna like the air hammer!

  8. northernhopper

    northernhopper Light Load Member

    260
    367
    Mar 15, 2015
    isanti mn
    0
    Air powered cutoff wheel is your friend my friend. If you have a large enough air compressor.

  9. tommymonza

    tommymonza Road Train Member

    4,519
    12,848
    Sep 10, 2013
    S.W. Florida
    0
    You can almost here the yelling out the front door now.

  10. Skate-Board

    Skate-Board Road Train Member

    3,801
    3,995
    Aug 9, 2014
    Merrimack, NH
    0
    Ya, what was said above. Torch and cut off the bolts.

  11. tommymonza

    tommymonza Road Train Member

    4,519
    12,848
    Sep 10, 2013
    S.W. Florida
    0
    Call the fire department 1st. May as well get them on their way.

    I think the saws all is the safest. Cut the bolt in between the bushing and the bracket. Remove the hood and try to drive the bolt out with the air hammer , if it does not move put some heat to the bushing.

    Good chance the bolt is bent and is froze up in the bushing.

    insertnamehere and Bean Jr. Thank this.
