Transmission comparison

Discussion in 'Trucks [ Eighteen Wheelers ]' started by cat13, Dec 11, 2017.

  1. Dec 11, 2017 #1
    cat13

    cat13 Light Load Member

    192
    60
    Jul 8, 2013
    Central FL
    0

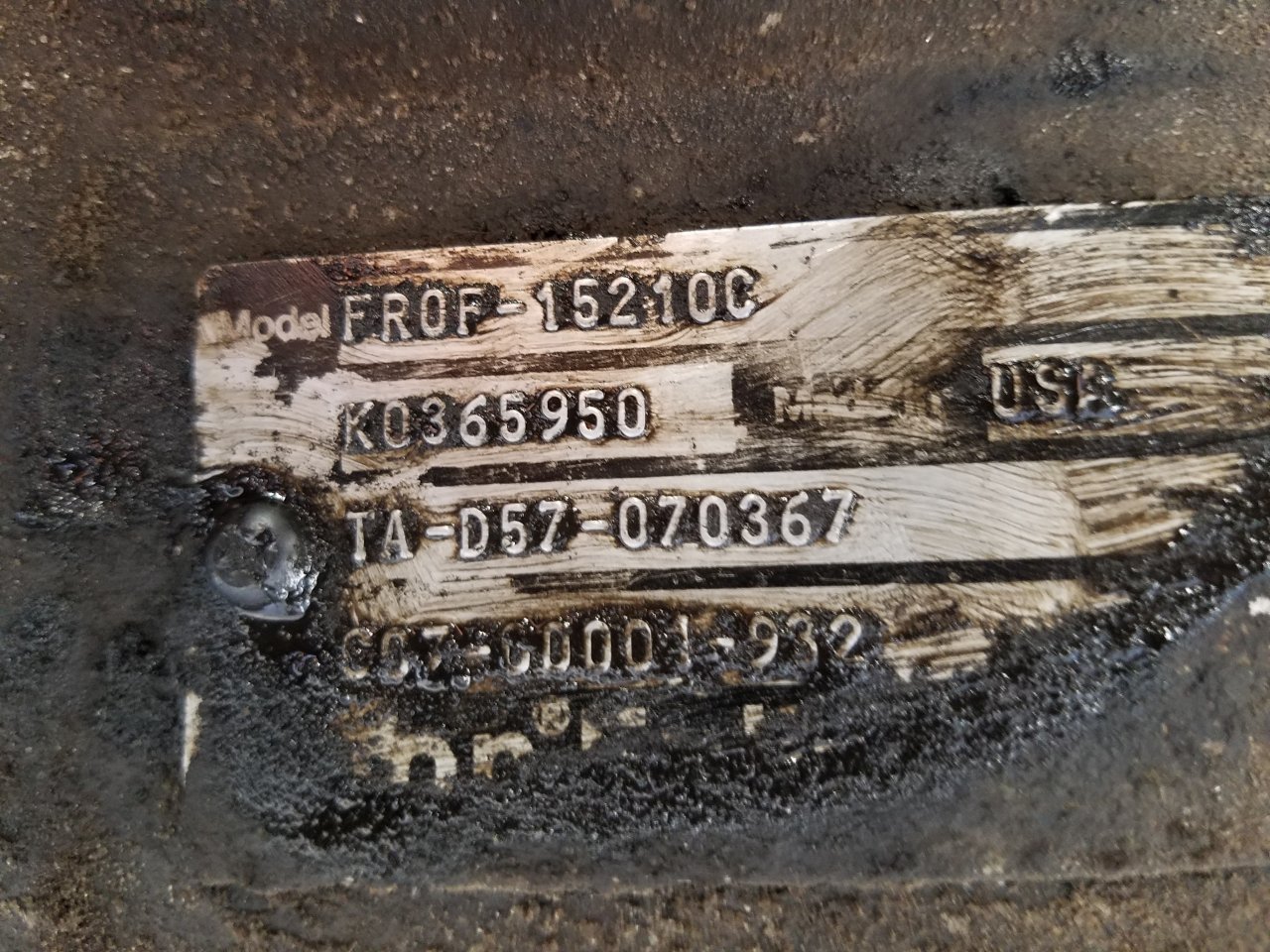

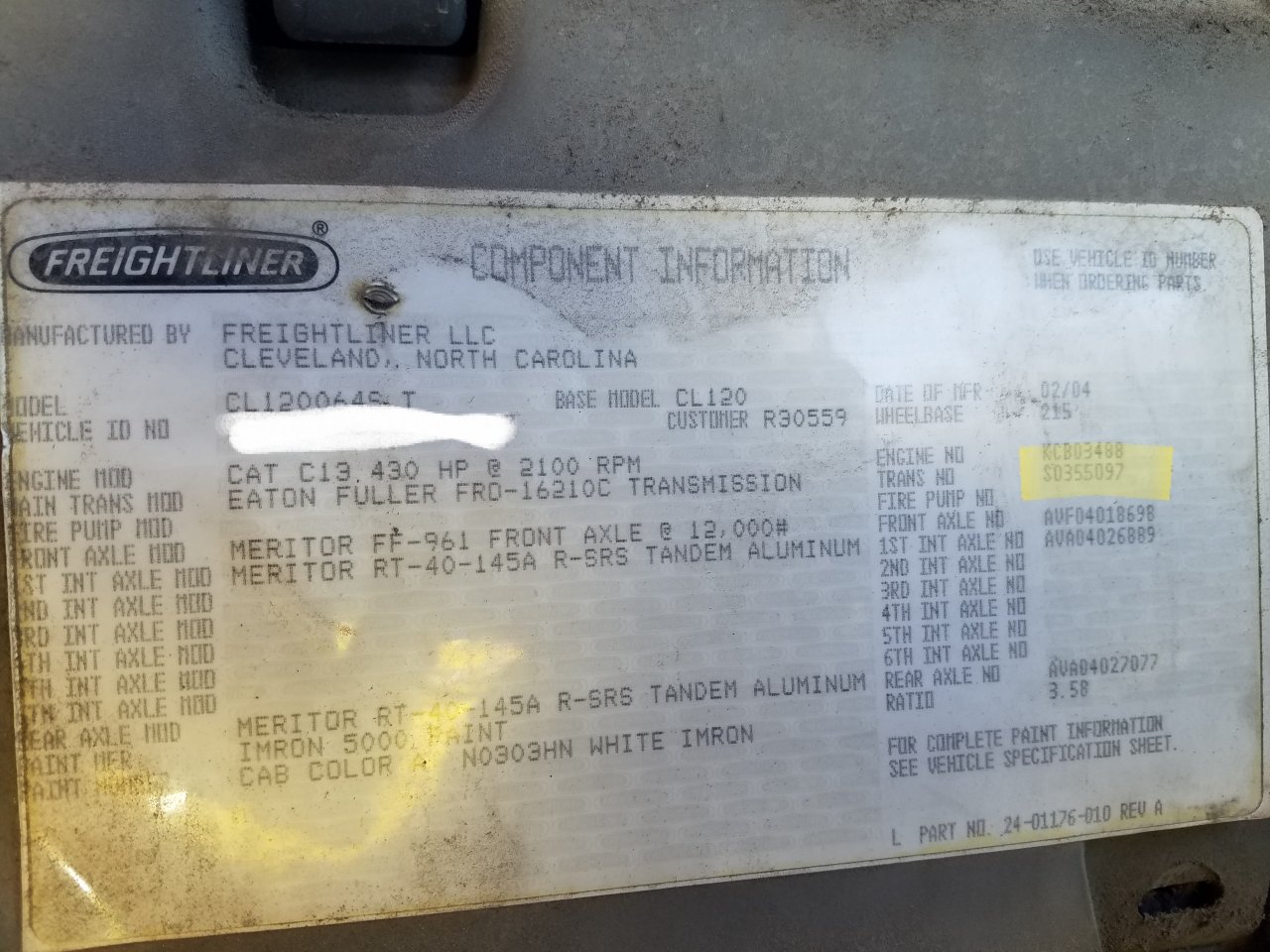

    Can anyone tell me the difference, if any between the transmission in my truck vs what it came factory with? Other then the torque rating. 20171211_141632.jpg 20171211_140559.jpg

    cat13, Dec 11, 2017
    cat13, Dec 11, 2017
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 11, 2017 #2
    KVB

    KVB Heavy Load Member

    877
    2,875
    Jun 30, 2012
    0
    As you already mentioned, torque rating is different.
    Ratios and dimesions should be all the same.
    Shift housing should be different, FRO vs FROF but maybe somebody simply put on another housing, or Freightliner did not put the F on the plate.

    If you want to know exactly, download these 2 documents and compare all the parts.

    http://www.roadranger.com/ecm/group...oadranger/documents/content/rr_fro-16210c.pdf

    http://www.roadranger.com/ecm/group...adranger/documents/content/rr_frof-15210c.pdf

    Have fun.

    KVB, Dec 11, 2017
    KVB, Dec 11, 2017
    #2
  4. Dec 11, 2017 #3
    aussiejosh

    aussiejosh Road Train Member

    4,709
    5,408
    Aug 28, 2009
    Airlie Beach QLd
    0
    Yep defiantly an Eaton Fuller

    aussiejosh, Dec 11, 2017
    aussiejosh, Dec 11, 2017
    #3
  5. Dec 11, 2017 #4
    cat13

    cat13 Light Load Member

    192
    60
    Jul 8, 2013
    Central FL
    0
    Mostly worried about ratios. I've had the truck a year and the trans is still holding so I guess that's not an issue right now. Don't know how long it's been in there before I got the truck.

    cat13, Dec 11, 2017
    cat13, Dec 11, 2017
    #4
  7. Dec 11, 2017 #5
    maggard359

    maggard359 Medium Load Member

    476
    413
    Nov 20, 2013
    Florida
    0
    The frof instead of fro is the shift tower forward location. 15210 is rated at 1550ft/lb where the 16210 is rated at 1650ft/lbs. Last two gears are rated for an additional 100ft/lbs in both. Ratio is same. You should be fine with a c13 depends on how wore out it was when they installed it.

    maggard359, Dec 11, 2017
    maggard359, Dec 11, 2017
    #5
  8. Dec 12, 2017 #6
    cat13

    cat13 Light Load Member

    192
    60
    Jul 8, 2013
    Central FL
    0
    Good enough for me. It's held up this long. I've put roughly 80k miles on it hauling 88k lbs locally. Don't know anything else about it at this point.

    cat13, Dec 12, 2017
    cat13, Dec 12, 2017
    #6
