Socket Size for Semi Truck and Trailer Lug Nuts?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by PE_T, Aug 28, 2019.

  1. PE_T

    PE_T Road Train Member

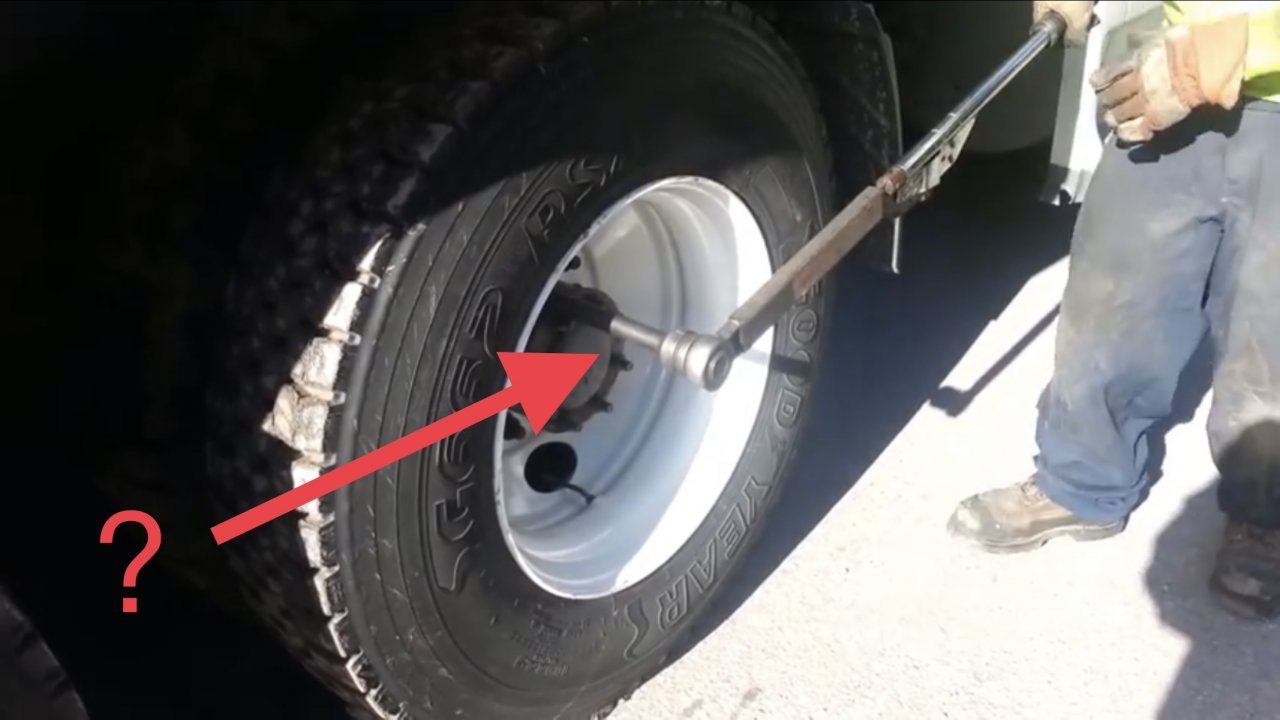

    I have a 2014 Freightliner Cascadia and a 2019 Utility trailer. I hear it’s 33 mm. Would that be true for both truck and trailer? I also notice my trailer may need a long socket. Am I right about that?


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. stayinback

    stayinback Road Train Member

    3,911
    8,255
    Jan 24, 2014
    chicago,il
    0
    Yep- If you dont have a 33.. 1 5/16 will work- But dont get too comfortable with it.

    As for the Long studs.....You should be good with a Deep 33.

  4. PE_T

    PE_T Road Train Member

    I can’t believe Harbor Freight doesn’t carry a 33mm socket. They have a set of impact, but they skip 33mm!

  5. PE_T

    PE_T Road Train Member

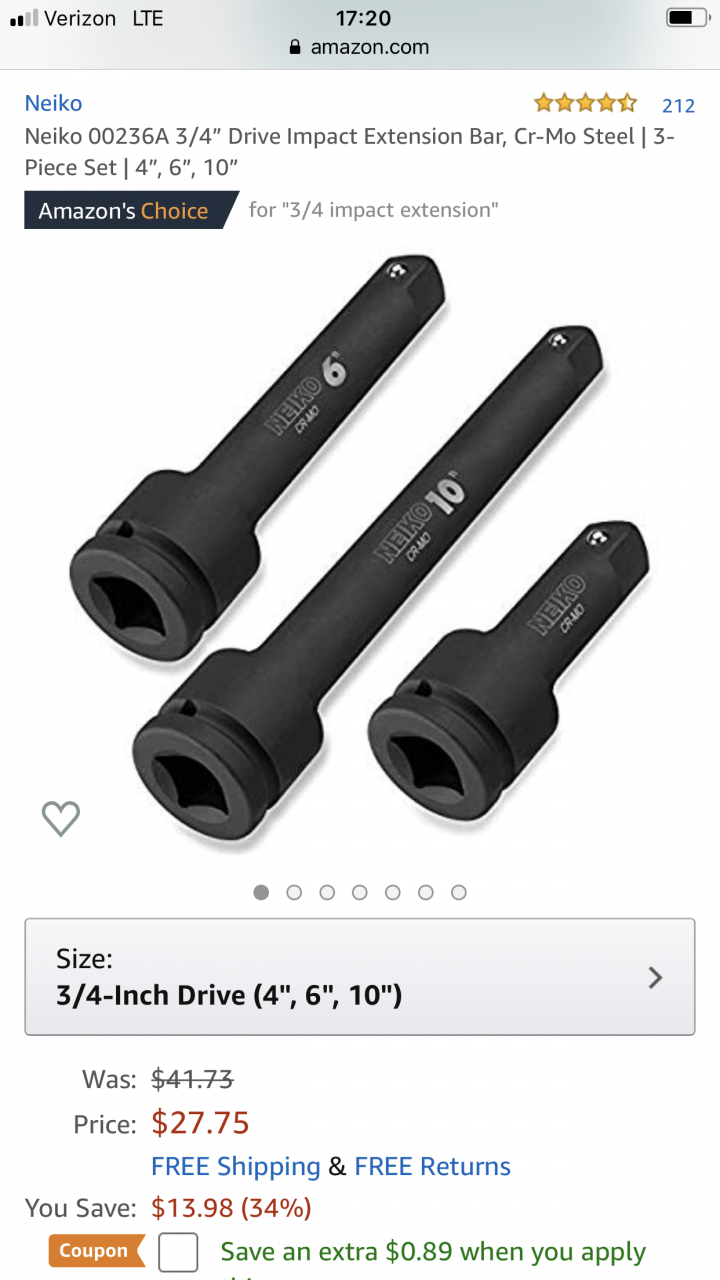

    Do you guys use a 9+ inch socket extension bar with the torque wrench for lug nuts other than the steer axle?

    Ok, I found the answer. They have them on Amazon. The 10-inch appears to do the trick.


    Attached Files:

    Last edited: Aug 28, 2019
    Dave_in_AZ and Rideandrepair Thank this.
  6. starmac

    starmac Road Train Member

    6,639
    12,528
    Apr 11, 2019
    Fairbanks Ak
    0
    Like he said, the 1 5/16 is the same as 33 mm, but it is available anywhere tire sockets are sold.
    If you have steel wheels you will need the long one. You can also get by with a shorter extension, in fact the shortest one you can use is the easiest.

    Rideandrepair and PE_T Thank this.
  7. PE_T

    PE_T Road Train Member

    I was thinking about rotating my own tires, but I may have to put this idea on hold. It costs about $150 to rotate 8 tires (no dismount), which is not bad. Maybe in the future if I decide to grow a fleet, I’ll invest in all the necessary tools.

    I think I need to focus on addressing my irregular tire wear much sooner, and not postpone it. I knew my trailer tires were wearing unevenly, but decided to put it off for later when all I needed to do is take a couple days off during the week to take it to a shop for inspection. The main problem was wheel seal leaks, which then probably caused a misalignment. Luckily all of my truck tires have been wearing off evenly despite the irregular wear on all of my trailer tires.

  8. Rideandrepair

    Rideandrepair Road Train Member

    17,198
    55,776
    Aug 8, 2015
    0
    I’m thinking of investing in a 3x torque multiplier. Used with my 300 lb torque wrench, should cover anything needed. About $230 on Amazon or eBay, if I remember correct.

    Dino soar, Dave_in_AZ and PE_T Thank this.
  9. Rideandrepair

    Rideandrepair Road Train Member

    17,198
    55,776
    Aug 8, 2015
    0
    How much are those?

    PE_T Thanks this.
  10. PE_T

    PE_T Road Train Member

    They’re cheap.

    I think I may just get all the tools to remove wheels, but not the tools to remove tires.


    Attached Files:

  11. PE_T

    PE_T Road Train Member

    Don’t get a torque multiplier. They’re too expensive and almost unnecessary. I’d go with a 3/4” long breaker bar ($50) and a 1400 foot-pound Milwaukee electric impact tool ($400). In reality, you only need the breaker bar, but it may take several minutes to remove one tire, and you’ll probably be tired by then.

    The Milwaukee impact can remove a few tires without the breaker bar, but if you use a breaker bar, the battery will last longer. Or you can get two battery packs.

    EDIT——

    On a second thought, torque multipliers are not expensive, just a little over $200. In my case, I already own a Milwaukee impact, the 220 foot-pound, though, with one battery pack. I’d need to spend $200 to get the 1400 foot-pound and about $50 for a 3/4” breaker bar.

    Last edited: Aug 28, 2019
    Rideandrepair Thanks this.
