Self drill screws to repair semi trailer floor

Discussion in 'Ask An Owner Operator' started by Ikamob01, Jan 20, 2023.

  1. Ikamob01

    Ikamob01 Medium Load Member

    314
    195
    Dec 4, 2021
    0

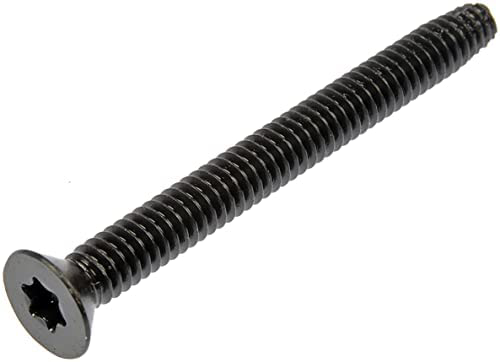

    I'm trying to use self drilling screws knowns as Tek to attach wood flooring to semi trailer instead of the regular screws..see pics below. The regular screws will take for ever to drill them through the trailer metals. Have anyone use a self-drilling screw to do flooring before?

    Vs


    TallJoe and Rideandrepair Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. FLHT

    FLHT Road Train Member

    1,329
    2,260
    Aug 2, 2014
    0
    Did two trailers with the black ones.
    Ended up pre drilling a hole with drill bit and went much better.
    If you are using a battery powered drill have plenty of batteries charged,
    Hammer drill works best on the screws.
    Their is also the Bear claw decking fastener that work well in some applications.

    BennysPennys, TallJoe, ducnut and 4 others Thank this.
  4. Ikamob01

    Ikamob01 Medium Load Member

    314
    195
    Dec 4, 2021
    0
  5. zinita17601

    zinita17601 Road Train Member

    1,317
    1,603
    Aug 19, 2010
    lancaster pa
    0
    I dont think the self drilling screws metal is hard enough to go thru the trailer metal,the way i did mine was using two drills with two sizes drill bits to drill a pre hole while lubricating with wd 40 to cool and preserve the sharpness of the bits,once all the holes are done i used an impact gun to drive the screws in.

  6. HoneyBadger67

    HoneyBadger67 Road Train Member

    2,056
    4,511
    Dec 15, 2018
    Savannah, TN
    0
    Teks are Phillips head, so if you don't predrill the holes you're going to strip out the head. I've used them on a small bridge we have going over a drainage creek. Once the head strips out, your day just got worse.

  7. Kshaw0960

    Kshaw0960 Road Train Member

    1,581
    5,023
    Jun 17, 2018
    0
    The self drilling screws will dull too fast or snap. When I replaced flooring and bought like 150 of the screws they gave me 2 drill bits.

    Rideandrepair Thanks this.
  8. Ikamob01

    Ikamob01 Medium Load Member

    314
    195
    Dec 4, 2021
    0
    Yes I went ahead and get 2 drill today. Plus 100 . Trailer Deck Screws 1/4-20 2" Torx T30 1/2.
    But the drills are just for the woods. I finally drilled through the trailer metals but just don't know what drill bit size to use.

    Rideandrepair Thanks this.
  9. FLHT

    FLHT Road Train Member

    1,329
    2,260
    Aug 2, 2014
    0
    Use a bit just smaller than the screw head...
    Dunk the screw tip in a bottle of Anti seize

    Rideandrepair and Ruthless Thank this.
  10. bags

    bags Bobtail Member

    20
    58
    Aug 6, 2009
    Colorado
    0
    Contact the manufacturer of the deck screws you bought for a drill bit size. You should be use'in self "Tapping" torx head screws.
    One size drill bit to drill through the deck material and through the trailer steel.

    Rideandrepair Thanks this.
  11. bags

    bags Bobtail Member

    20
    58
    Aug 6, 2009
    Colorado
    0
    The drill bit is just a tad smaller than the screw "shaft" ---not the screw head.

    MAMservices and Rideandrepair Thank this.
