Rule about where to position a single steel coil on a flatbed

Discussion in 'Experienced Truckers' Advice' started by olympic7, Oct 15, 2012.

Page 1 of 3
  1. Oct 15, 2012 #1
    olympic7

    olympic7 Bobtail Member

    2
    0
    Oct 15, 2012
    0
    Good evening. Is there a rule or best practice on where should a single coils should be placed on a flatbed trailer. Placing a single steel coil in the center/middle of a 48' or 53' flatbed trailer will for sure place more stress on a trailer but placing a single steel coil closer to the suspension of the flatbed trailer will make it hard to distribute the weight evenly on all axles.
    What do you think about this topic?

    Thank you,

    olympic7, Oct 15, 2012
    olympic7, Oct 15, 2012
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 15, 2012 #2
    crazydriver88

    crazydriver88 Bobtail Member

    6
    1
    Sep 9, 2012
    0
    ah the heck with it..throw it on topof the sleeper and bungie cord it down and you'll be fine

    crazydriver88, Oct 15, 2012
    crazydriver88, Oct 15, 2012
    #2
    DrtyDiesel Thanks this.
  4. Oct 15, 2012 #3
    volvodriver01

    volvodriver01 Road Train Member

    1,332
    1,026
    Feb 10, 2011
    Usually the one on ur leftside. Ind
    0
    Depending on the weight of the coil I most generally place my coil in between my front tandem and center of trailer. This is on a 48 ft flat.

    Last edited: Oct 15, 2012
    volvodriver01, Oct 15, 2012
    volvodriver01, Oct 15, 2012
    #3
  5. Oct 15, 2012 #4
    skellr

    skellr Road Train Member

    8,737
    12,184
    Jul 17, 2011
    The Village, Portmeirion
    0
    A tad behind center. I don't like the trailer flex but I hate a heavy spread.

    skellr, Oct 15, 2012
    skellr, Oct 15, 2012
    #4
    CondoCruiser Thanks this.
  7. Oct 16, 2012 #5
    skateboardman

    skateboardman Road Train Member

    6,232
    5,706
    Jan 14, 2012
    flatbed heaven
    0
    a foot behind center on a spread axle, and axle weights will be fine.

    skateboardman, Oct 16, 2012
    skateboardman, Oct 16, 2012
    #5
    volvodriver01 Thanks this.
  8. Oct 16, 2012 #6
    The Bird

    The Bird Medium Load Member

    386
    268
    Apr 10, 2012
    White Rock, NM
    0
    I center all my coils, unless I need room for another pick.

    The Bird, Oct 16, 2012
    The Bird, Oct 16, 2012
    #6
    volvodriver01 Thanks this.
  9. Oct 16, 2012 #7
    heavyhaulerss

    heavyhaulerss Road Train Member

    3,723
    2,040
    Dec 23, 2009
    AL/TN BORDER
    0
    I center most all of mine. on a spread, just a tad back from center is o.k. too. I do not like going too far to the rear, even if I am good on the axle weight. on spread axle the rear frame takes a beating & coils that are more to the back when not needed will put more strain on it.

    heavyhaulerss, Oct 16, 2012
    heavyhaulerss, Oct 16, 2012
    #7
    volvodriver01 Thanks this.
  10. Oct 16, 2012 #8
    Semi Crazy

    Semi Crazy Road Train Member

    3,033
    2,044
    May 13, 2011
    Middle Tennessee
    0
    Look under the trailer at the coil package. On my Fontaine it's just 2 or 3 extra I-beams welded between the rails 1 ft. rear of center of the trailer. Put it right there.

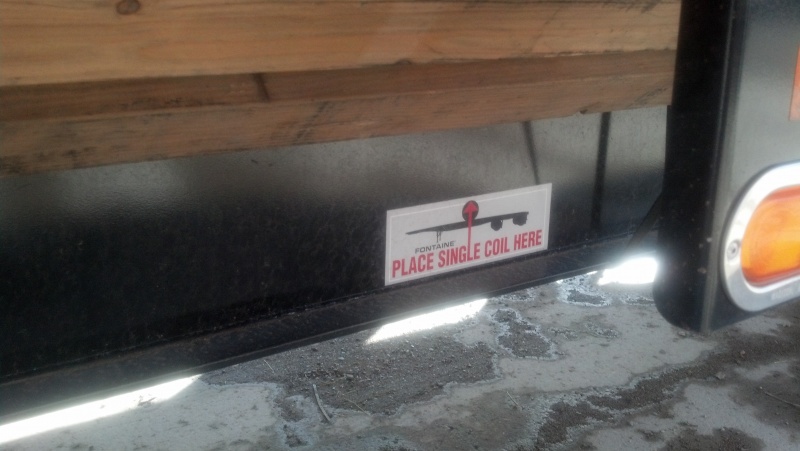

    Another clue could be the sticker "place coil here".

    Semi Crazy, Oct 16, 2012
    Semi Crazy, Oct 16, 2012
    #8
    dannythetrucker, volvodriver01 and Mountain Hummingbird Thank this.
  11. Oct 16, 2012 #9
    WMGUY

    WMGUY Road Train Member

    1,684
    800
    Jan 1, 2011
    Nine Mile Falls, WA
    0
    2012-10-16_11-02-23_653.jpg 2012-10-16_11-02-11_522.jpg

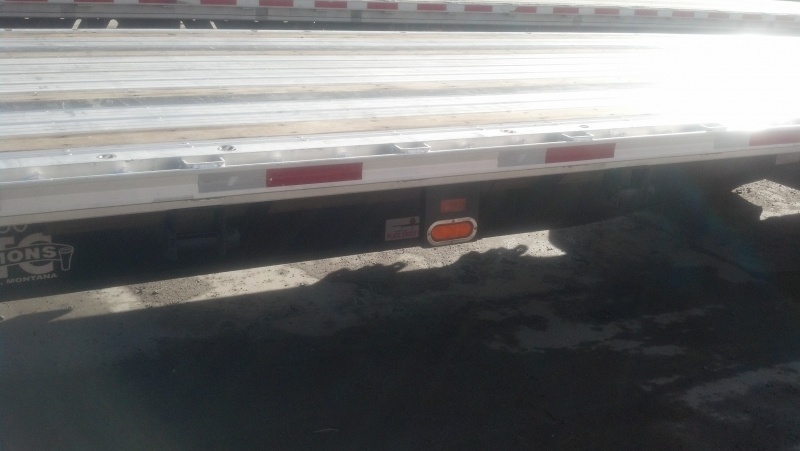

    right there is where the trailer mfg recomends

    WMGUY, Oct 16, 2012
    WMGUY, Oct 16, 2012
    #9
    volvodriver01 and dannythetrucker Thank this.
  12. Oct 16, 2012 #10
    skateboardman

    skateboardman Road Train Member

    6,232
    5,706
    Jan 14, 2012
    flatbed heaven
    0
    dang you gave away the secret of 1 foot rear of center, lol

    skateboardman, Oct 16, 2012
    skateboardman, Oct 16, 2012
    #10
    Logan76 Thanks this.
