Push connect air line fitting

Discussion in 'Trucks [ Eighteen Wheelers ]' started by mitmaks, Mar 28, 2018.

  1. mitmaks

    mitmaks Road Train Member

    2,569
    2,082
    May 16, 2014
    0
    I've replaced my air bag today and now push connect fitting is leaking a bit of air. I tried cleaning it, etc and still leaking just a little bit of air. Is there way to fix air leak on these or they're just throw away part?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. daf105paccar

    daf105paccar Road Train Member

    6,564
    7,293
    Apr 15, 2012
    0
    Replace the O ring inside

  4. miszel

    miszel Light Load Member

    79
    51
    Aug 17, 2016
    0
    They are less than $10. Get yourself a new one.

    Matt1924 Thanks this.
  5. mitmaks

    mitmaks Road Train Member

    2,569
    2,082
    May 16, 2014
    0
    Theres no oring inside

  6. boneebone

    boneebone Road Train Member

    2,296
    2,369
    Mar 13, 2009
    0

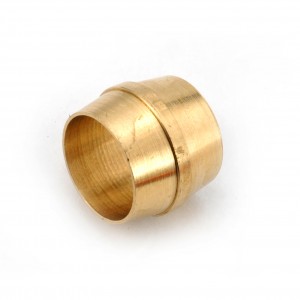

    If they are brass quick connect fittings, they have o-rings inside.

    If they are plastic quick connect, they are disposable.

    Matt1924 Thanks this.
  7. BoxCarKidd

    BoxCarKidd Road Train Member

    4,516
    6,570
    Aug 26, 2014
    0
    I have a very bad taste for those. The first ones I know of were on CL9000's. Ford must have had a major accident claim. A guy in the shop was put on one to replace every fitting throughout the truck.
    Three weeks latter he was finished. Thanks you did a great job! Will you get the other 9000 parked in the back and do it the same way?
    After almost accepting them as improved version and good to use I went on a service call today. Plastic piece of junk broke in half and lost all the air pressure.
    I have to live with them in places but will always use DOT compression fittings when possible.

    rollin coal and xsetra Thank this.
  8. 86mechanic

    86mechanic Medium Load Member

    372
    62,101
    Sep 6, 2016
    Northridge, CA
    0
    If you got enough air line you can trim the end of it a little bit and then reconnect it.
    Sometimes that helps, if not new fitting.

    BoxCarKidd Thanks this.
  9. truckdriver31

    truckdriver31 Road Train Member

    6,998
    8,358
    Sep 18, 2013
    0
    never seen a brass airline connector with o rings.

  10. truckdriver31

    truckdriver31 Road Train Member

    6,998
    8,358
    Sep 18, 2013
    0
