Oil cooler lines on Eaton 10 speed.

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Zethull, Jul 28, 2023.

Page 1 of 2
  1. Jul 28, 2023 #1
    Zethull

    Zethull Bobtail Member

    48
    21
    May 26, 2023
    KY
    0
    Got a new eaton 10 speed and on pass side where old one was it had in and out for cooler lines. This one only has 1 hole that says out/ Where is or where do i put the in line?


    Attached Files:

    Zethull, Jul 28, 2023
    Zethull, Jul 28, 2023
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jul 28, 2023 #2
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,691
    29,648
    May 2, 2021
    0

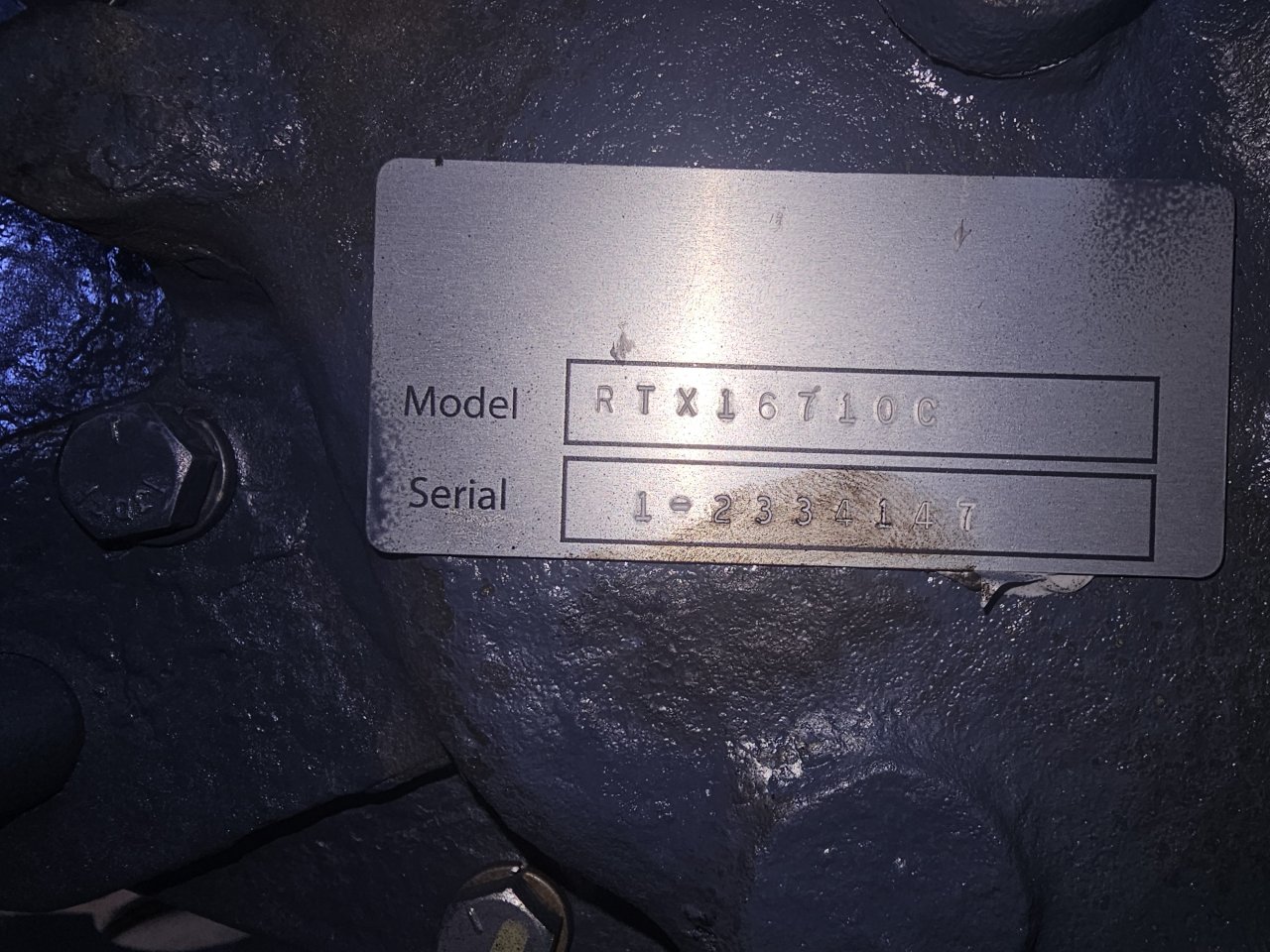

    What model# is that? Looks odd. Possibly a return up top?

    Big Road Skateboard, Jul 28, 2023
    Big Road Skateboard, Jul 28, 2023
    #2
  4. Jul 28, 2023 #3
    Zethull

    Zethull Bobtail Member

    48
    21
    May 26, 2023
    KY
    0

    Zethull, Jul 28, 2023
    Zethull, Jul 28, 2023
    #3
    Flint1 Thanks this.
  5. Jul 28, 2023 #4
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,691
    29,648
    May 2, 2021
    0
    I honestly don't know. Any other pipe plugs in it? Up top? Does it have the HALO?

    Big Road Skateboard, Jul 28, 2023
    Big Road Skateboard, Jul 28, 2023
    #4
  7. Jul 28, 2023 #5
    Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    Pretty sure the cooler line ports “In and out” are under the 5 bolt plate/cover. The cover allows oil flow thru the trans when a cooler is not installed.

    The pipe plug bottom left of out is just open to the case and is common to see trans temp sensor.

    Last edited: Jul 28, 2023
    Goodysnap, Jul 28, 2023
    Goodysnap, Jul 28, 2023
    #5
    skallagrime, IH9300SBA, AModelCat and 2 others Thank this.
  8. Jul 28, 2023 #6
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,691
    29,648
    May 2, 2021
    0
    That would make sense. The out is a pretty good ways from that plug. Good info.

    Yep

    Last edited: Jul 28, 2023
    Big Road Skateboard, Jul 28, 2023
    Big Road Skateboard, Jul 28, 2023
    #6
    Last Call and Goodysnap Thank this.
  9. Jul 28, 2023 #8
    Zethull

    Zethull Bobtail Member

    48
    21
    May 26, 2023
    KY
    0
    Do I even need a cooler? I'm only 35k heavy

    Zethull, Jul 28, 2023
    Zethull, Jul 28, 2023
    #8
  10. Jul 28, 2023 #8
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,691
    29,648
    May 2, 2021
    0
    Where do you run? You can get by without it. I wouldn't personally. You'll get oil temps up around 250* summertime.

    Big Road Skateboard, Jul 28, 2023
    Big Road Skateboard, Jul 28, 2023
    #8
  11. Jul 28, 2023 #9
    Zethull

    Zethull Bobtail Member

    48
    21
    May 26, 2023
    KY
    0
    I do campers all over the states

    Zethull, Jul 28, 2023
    Zethull, Jul 28, 2023
    #9
    Big Road Skateboard Thanks this.
  12. Jul 28, 2023 #10
    Arctic_fox

    Arctic_fox Experienced mx13 execrator

    3,864
    19,461
    Sep 16, 2016
    0
    Better question. Do you want to risk cooking it with how hot things have been?

    Arctic_fox, Jul 28, 2023
    Arctic_fox, Jul 28, 2023
    #10
    JB7 Thanks this.
