N14 new oil pump priming instructions

Did a quick online search using this phrase.
"N14 oil pump needs priming procedure"

It shows information you want.



as before: register your engine serial number in Cummins Quick Serve. all the parts are there. all the procedures are there.



Easy way is prime it before you install it….. by pushing a 1/2 a tube of assembly lube inside around the gears.

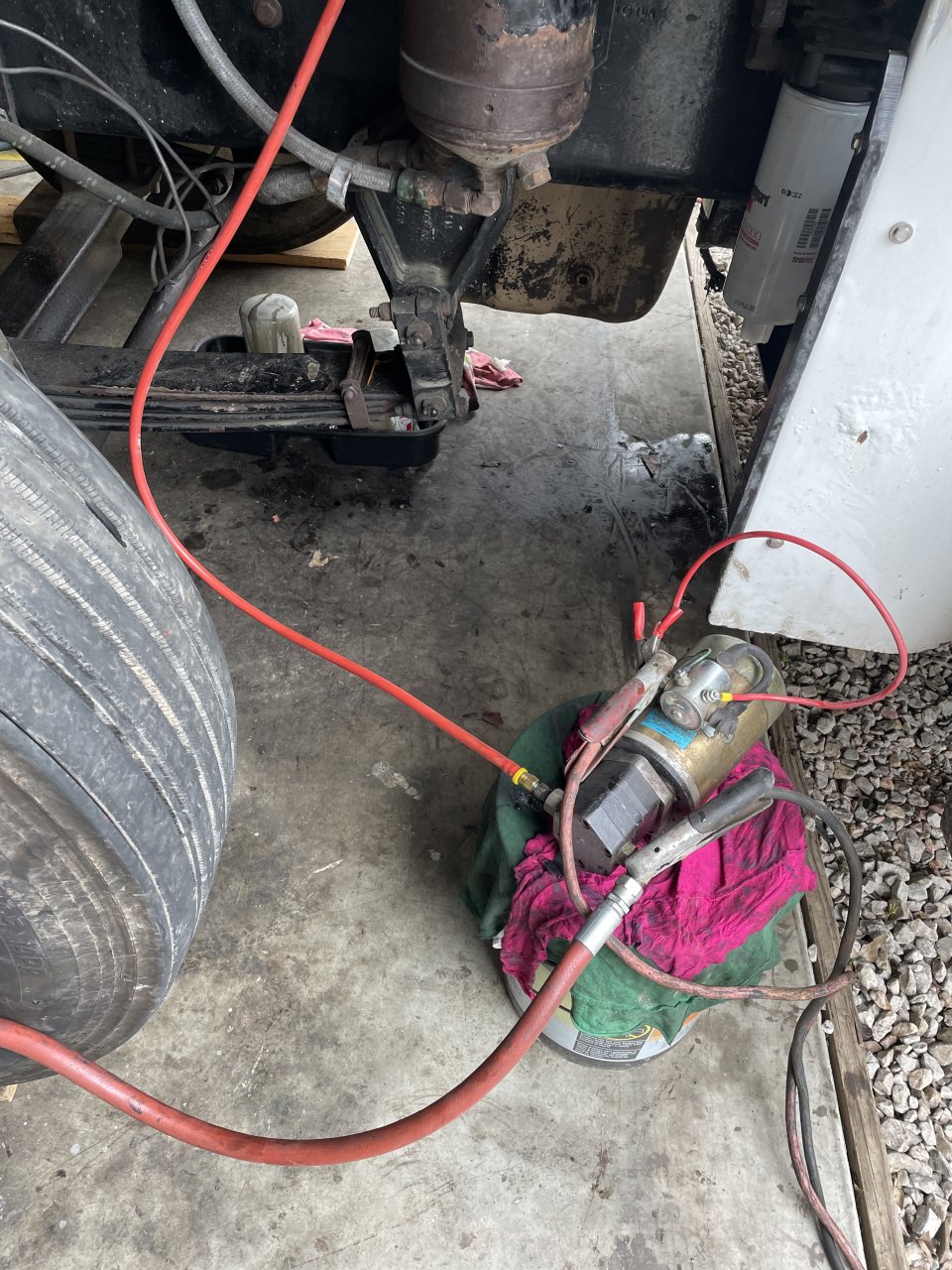

I have a small pump I hook into the oil galley right above the starter, pump a few gallons of oil in it and it should pick up fine when the engine starts….

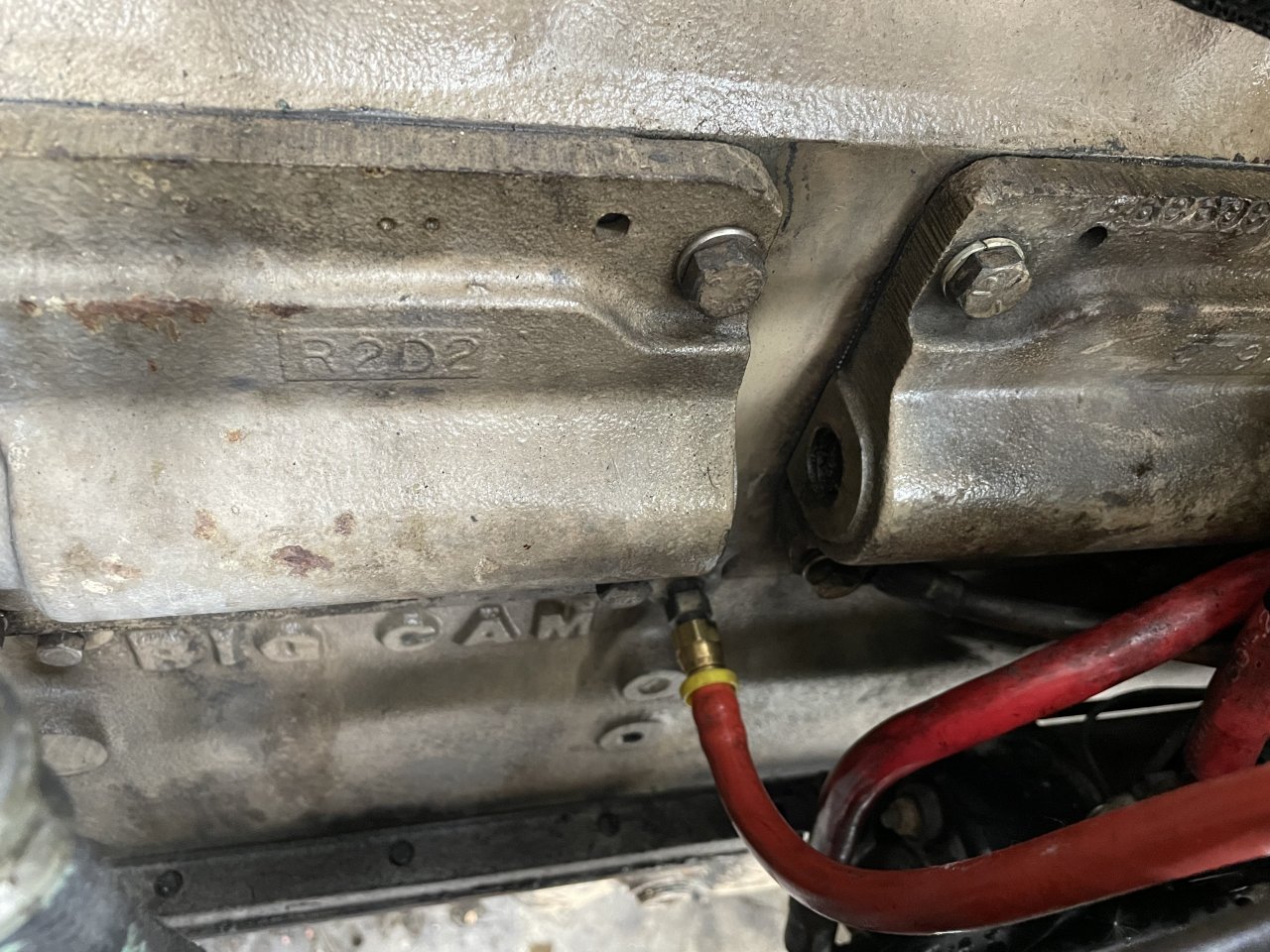

Trying to remember, but thinking there’s a plug you can just put oil in on the front side of the engine. I’ll double check my Cummins book after while when I go to the shop….

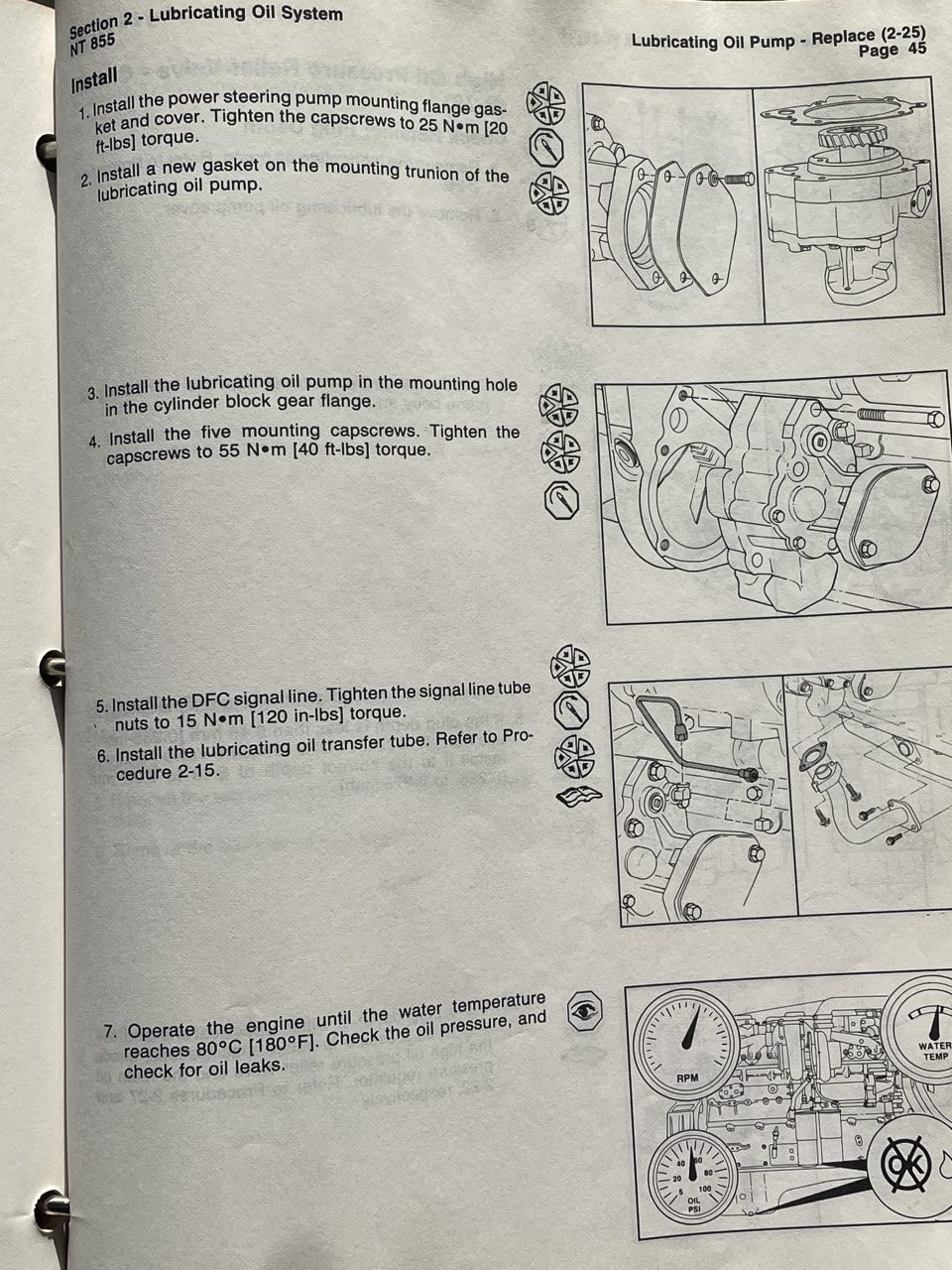

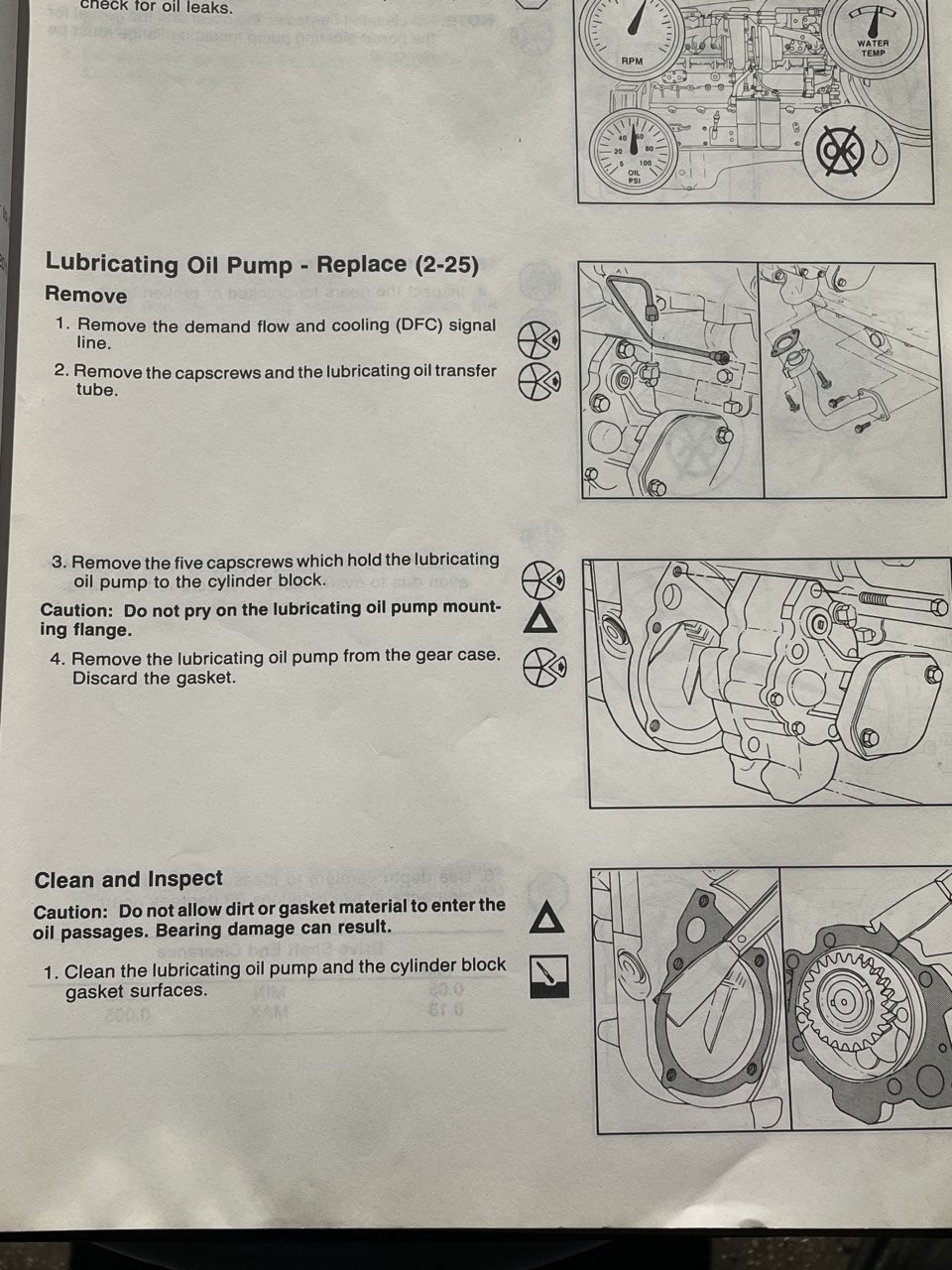

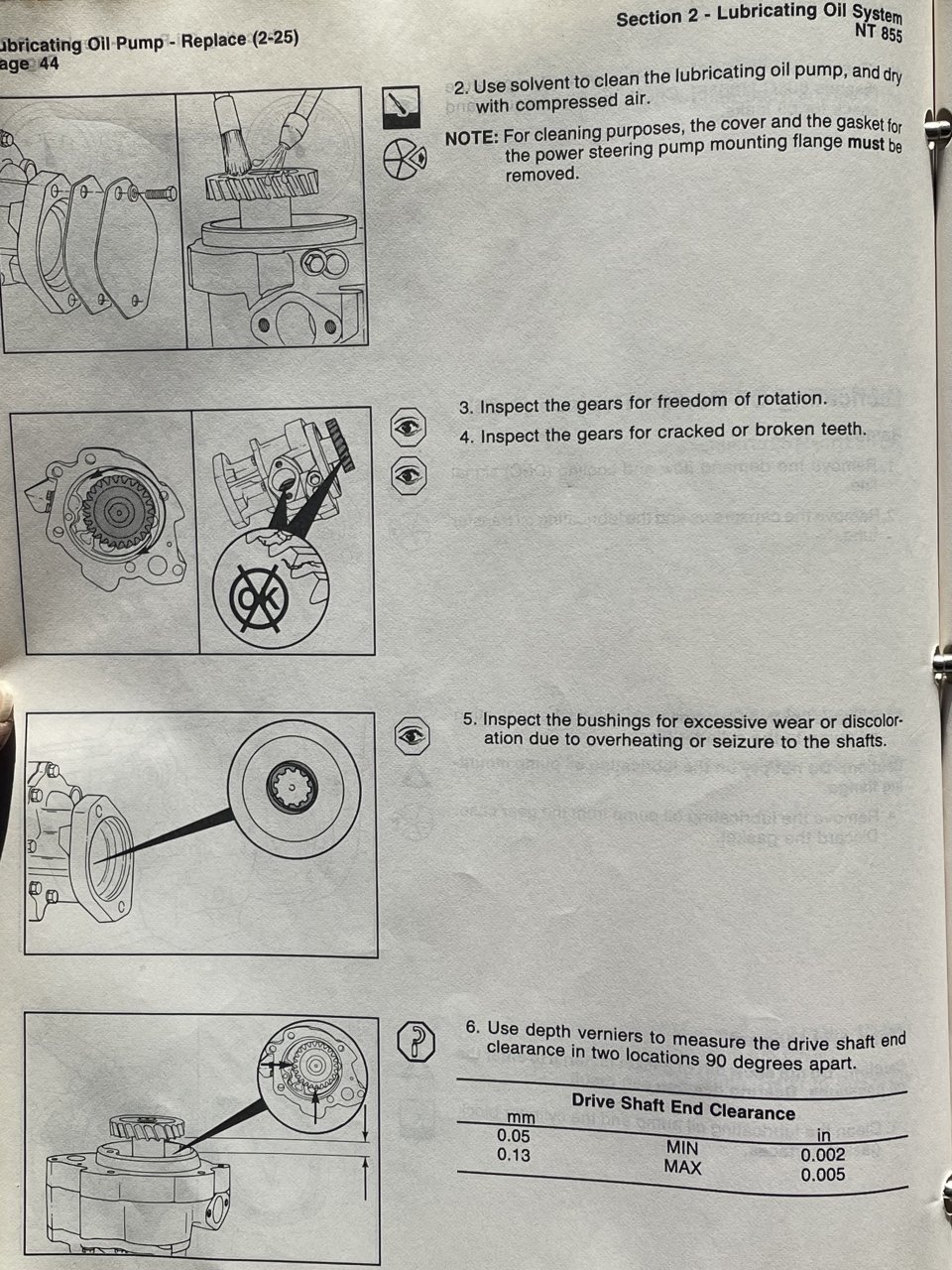

There’s all the info the Cummins manual gives.

Did you put any oil inside the pump where the gears are….?
