Mx13 heater hose fittings on block

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Edjahman, Oct 5, 2021.

  1. Edjahman

    Edjahman Medium Load Member

    648
    444
    Apr 2, 2013
    0

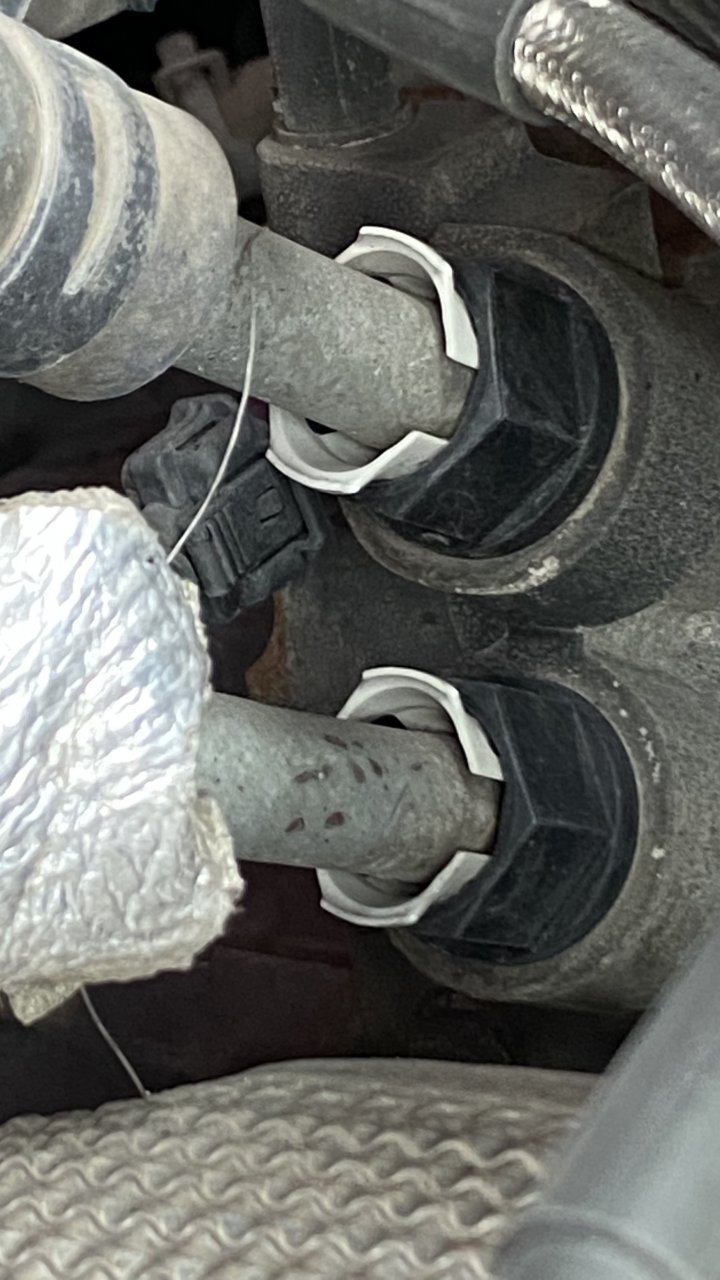

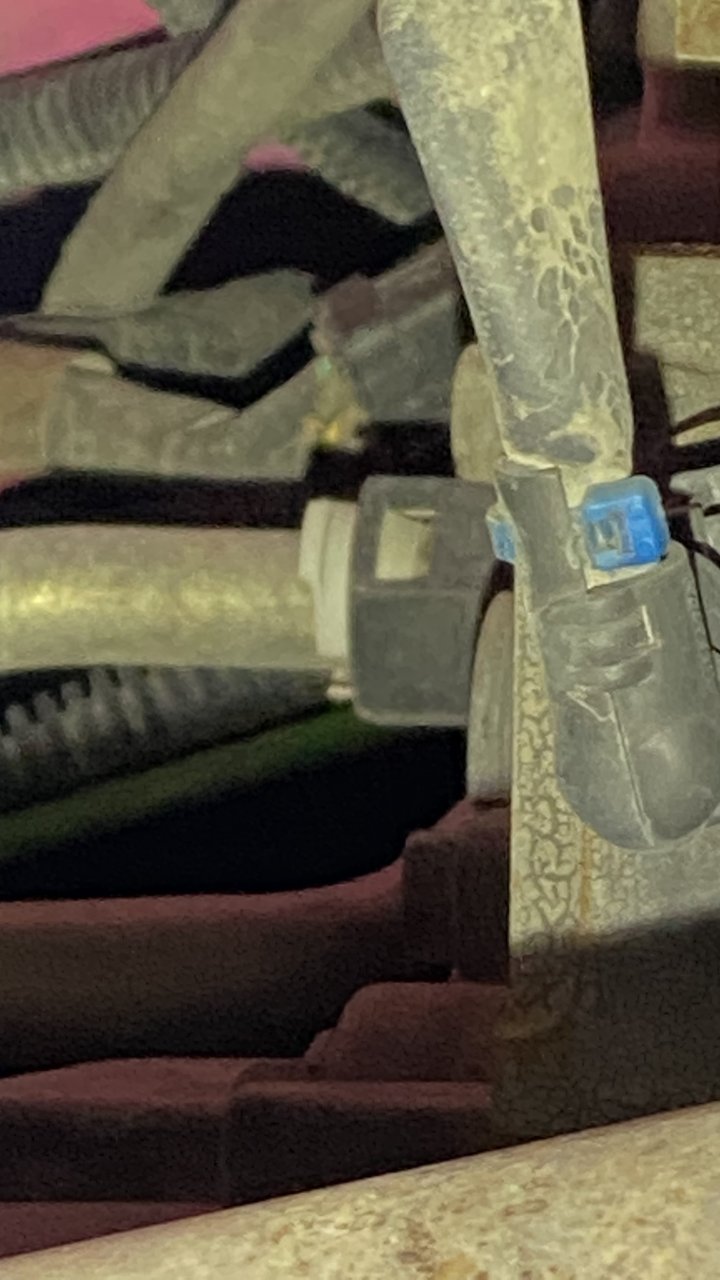

    106C83CD-4EAA-4C1A-87D3-B6B3CC24003A.jpeg CF9F5F5D-40BB-4F21-95B5-75F0B9206211.jpeg It looks like 3 plastic fittings on my MX13 need to be replaced with brass ones. 2 are behind the turbo and it only looks like 1 on the back of the motor.

    Do any of you have tips for replacing these. I heard they'll probably break when I try to get them out.

    Can I reach the one behind the head if I take off the filter assembly?

    Thank you

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    They can break off which you will have to extract the broken threads. I have a couple small guys that can reach behind with the air cleaner off. Its blind and by feel and very tight.

    Only other choice really is to pull the shifter cover.

    Flint1, BoxCarKidd and Edjahman Thank this.
  4. Mattmanstroked

    Mattmanstroked Light Load Member

    185
    278
    Nov 24, 2019
    0
    They have been known to break while going down the road and dump all your coolant in a hurry.

    Edjahman Thanks this.
  5. Edjahman

    Edjahman Medium Load Member

    648
    444
    Apr 2, 2013
    0
    Is there only 3?

    I was told 4.


    Yeah thats why I'm replacing them. I have to do the water pump so I was going to do these also.

    Ty

  6. Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    Varies by model/ year.

    Sleeper is usually 3. Never seen 4.

    Flint1 and Edjahman Thank this.
  7. Edjahman

    Edjahman Medium Load Member

    648
    444
    Apr 2, 2013
    0
    Thank you!

    I was hoping to get to the one behind the head by removing the air filter assembly.

    Anyway. Thank you for the information!

    Goodysnap Thanks this.
  8. Arctic_fox

    Arctic_fox Experienced mx13 execrator

    3,861
    19,417
    Sep 16, 2016
    0
    Can 100% confirm, had the one on the back of my block break off at the block and dump my coolant. Also had both on the side of the block break and dump all my coolant a few days before that....before you ask i didnt know about the one on the back till it broke.

    As to getting them replaced also ensure you check for the and i kid you not....PAPER gaskets, it tends to leave bits behind that do really really bad things to your coolant system.

    Edjahman Thanks this.
  9. Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    Internal pipe wrench works swell if they do twist off. These can be had at any hardware or home depot. The plastic threads turn out pretty easy after the hex and the oring break off.

    Edjahman and Flint1 Thank this.
  10. Edjahman

    Edjahman Medium Load Member

    648
    444
    Apr 2, 2013
    0

    Thank you!

    Goodysnap Thanks this.
  11. Edjahman

    Edjahman Medium Load Member

    648
    444
    Apr 2, 2013
    0

    Thank you
