Led light issue

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by reelheavy, Mar 15, 2022.

  1. reelheavy

    reelheavy Light Load Member

    94
    55
    Mar 15, 2017
    Maryland
    0
    Have a 2000 utility flatbed recently changed the light on the rear of the trailer to grote Led lights that act as stop, turn, and running lights.

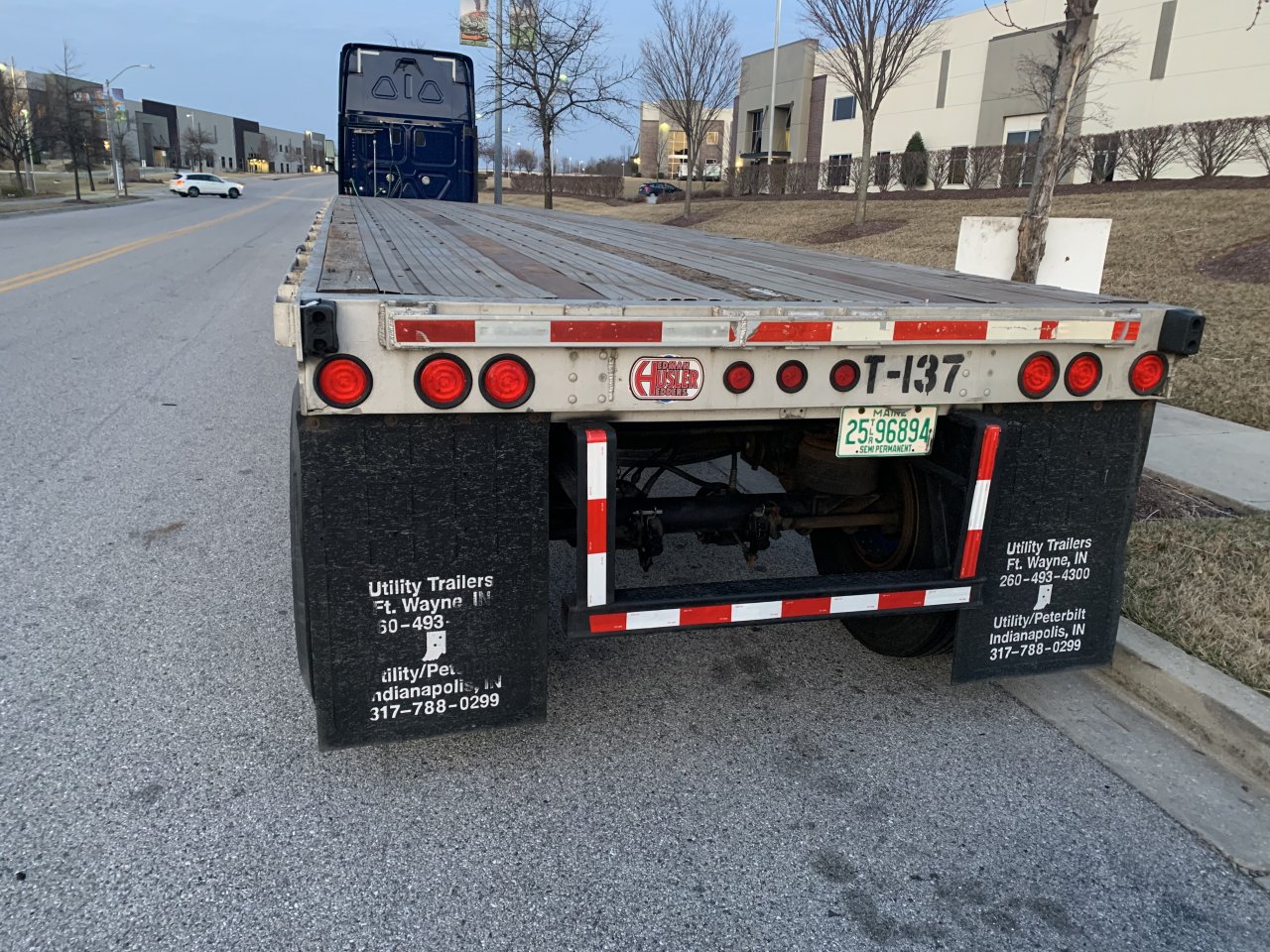

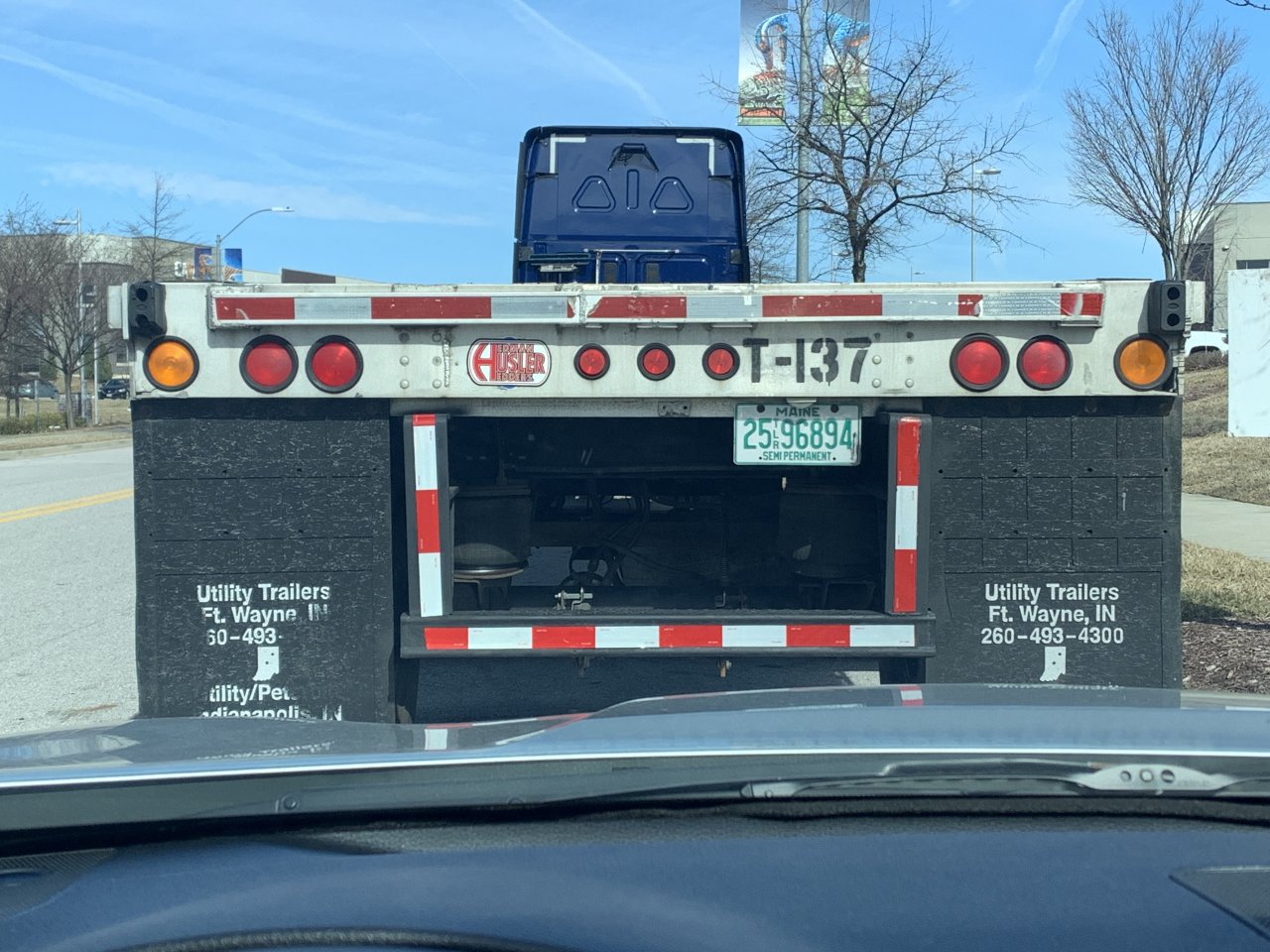

    All light come on and work but the 4 lights that act as running and brake lights in the middle are constantly on as running light even when I have no lights on in the trucks. Pic with yellow turn signals are old lights. Didn’t have to change anything they were plug in play noticed the issue when I pre tripped this morning.

    is there a relay I need to change or what usually causes this? B80883F6-2F13-4C25-AB17-D4A55F5023A6.jpeg A64FD3EF-D316-408B-9568-BE6373EEC64F.jpeg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. BoxCarKidd

    BoxCarKidd Road Train Member

    4,418
    6,431
    Aug 26, 2014
    0
    LED lights require very little amperage in order to work. Electrical feed from grease across a 7 way plug or moisture where insulation is poor can migrate enough power to light an LED. Break the system down connector to connector, junction box etc.

    Hammer166 and reelheavy Thank this.
  4. reelheavy

    reelheavy Light Load Member

    94
    55
    Mar 15, 2017
    Maryland
    0
    So I messed with it when I stopped today. And the 4 lights on would come on every time I turned the ignition on and would go off every time I shut the ignition off. So I put one of the old non led lights back in and now it works normal. The lights now come on when I turn them on as opposed to when I turn the ignition on.

    BoxCarKidd Thanks this.
  5. SmallPackage

    SmallPackage Road Train Member

    5,273
    16,442
    Dec 20, 2019
    Marion Texas
    0
    Check the plugs going into the back of the grote lights. It may need an adapter. (Some do). The red wire is the bright side and black is normal (dimmer) marker and on non turn/stop positions sometimes the factory plug ignites the red wire instead of black making it burn the bright stop and not normal marker light.

    reelheavy Thanks this.
