ISX 2350 BLEW FUEL FILTER UP

Discussion in 'Trucks [ Eighteen Wheelers ]' started by little cat 500, Dec 25, 2023.

Page 1 of 2
  1. Dec 25, 2023 #1
    little cat 500

    little cat 500 Road Train Member

    2,044
    1,090
    Jan 17, 2010
    Abbottstown PA
    0
    Started smelling fuel and seen filter was pouring fuel out. Blew up filter any idea what would blow the filter apart? has new high-pressure pump and rail pressure valve.

    little cat 500, Dec 25, 2023
    little cat 500, Dec 25, 2023
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 25, 2023 #2
    062

    062 Road Train Member

    6,142
    33,155
    Oct 20, 2013
    0
    Did it blow the media out or just split the side?
    Fleetguard had a bad run of filters about 6-7 years ago.

    062, Dec 25, 2023
    062, Dec 25, 2023
    #2
  4. Dec 25, 2023 #3
    Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    Please share photos of the failure.

    HP Fuel pump and relief valve have nothing to do with the filter failure as the filter is on the low pressure side of the system.

    Goodysnap, Dec 25, 2023
    Goodysnap, Dec 25, 2023
    #3
    blairandgretchen, AModelCat and little cat 500 Thank this.
  5. Dec 25, 2023 #4
    little cat 500

    little cat 500 Road Train Member

    2,044
    1,090
    Jan 17, 2010
    Abbottstown PA
    0
    blew the filter off were the lip is rolled down to hold guts in ill try an post a pic

    little cat 500, Dec 25, 2023
    little cat 500, Dec 25, 2023
    #4
  7. Dec 25, 2023 #5
    little cat 500

    little cat 500 Road Train Member

    2,044
    1,090
    Jan 17, 2010
    Abbottstown PA
    0
    any idea how much pressure is in the low-pressure pump. that part is old transferred it to new short block.

    little cat 500, Dec 25, 2023
    little cat 500, Dec 25, 2023
    #5
  8. Dec 25, 2023 #6
    AModelCat

    AModelCat Road Train Member

    28,847
    154,265
    Jul 7, 2015
    Canuckistan
    0
    Sounds like a filter that should have failed quality control.

    AModelCat, Dec 25, 2023
    AModelCat, Dec 25, 2023
    #6
  9. Dec 25, 2023 #7
    Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    I would have to look up exact specs. Only around 100-150 psi gear pump pressure.

    I have seen the large threads on the filter head get screwed up. Are you sure the filter is seating fully? It’s only blowing out the gasket?

    Goodysnap, Dec 25, 2023
    Goodysnap, Dec 25, 2023
    #7
  10. Dec 25, 2023 #8
    Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    8,520
    23,433
    Jan 20, 2010
    Hesperia, Ca.
    0
    Do you mean the bowl blew apart ?

    Diesel Dave, Dec 25, 2023
    Diesel Dave, Dec 25, 2023
    #8
  11. Dec 25, 2023 #9
    little cat 500

    little cat 500 Road Train Member

    2,044
    1,090
    Jan 17, 2010
    Abbottstown PA
    0
    filter came apart at the top where it is put together like it had way to must fuel pressure.

    little cat 500, Dec 25, 2023
    little cat 500, Dec 25, 2023
    #9
    Diesel Dave Thanks this.
  12. Dec 25, 2023 #10
    little cat 500

    little cat 500 Road Train Member

    2,044
    1,090
    Jan 17, 2010
    Abbottstown PA
    0

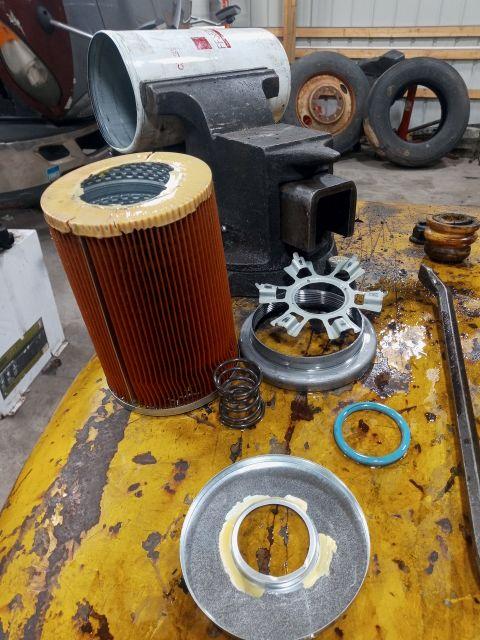

    fuel filter.jpg

    little cat 500, Dec 25, 2023
    little cat 500, Dec 25, 2023
    #10
    Diesel Dave Thanks this.
