How to unhook airline going to seat

Discussion in 'Questions From New Drivers' started by Buckeye91, Oct 3, 2013.

  1. Buckeye91

    Buckeye91 Road Train Member

    1,095
    677
    Sep 26, 2011
    Midwest, USA
    0
    I want to unhook the airline going to the seat so I can hook up an air chuck. Looks like maybe the current line is crimped? Do I just cut close to the current coupler?2010 freight liner cascadia.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jumbo

    Jumbo Road Train Member

    3,669
    7,389
    Sep 4, 2009
    Appleton, Wisconsin
    0
    Why would you have to cut anything? Just unscrew the fitting, either from the floor or the seat, then connect whatever you want to.

  4. The Admiral

    The Admiral Heavy Load Member

    894
    561
    Jul 18, 2010
    Akron,Ohio
    0
    There may be a plastic ring instead of a brass fitting. If you have the plastic ring drain your air tanks, push in on the ring while pulling out on the air supply line. Should come right out. If you are going to add the air chuck, more than likely you will need to add a T somewhere, which means changing your seat air supply line.

  5. Mark Kling

    Mark Kling Technology Contributor

    10,935
    4,214
    Sep 23, 2007
    Statesville, NC
    0
    You can buy the glad hand and connect to another air line. Then just disconnect the trailer, connect your airline via the glad hand and then connect your air chuck to the air line.

    oops, misread post. A T-connector can be bought to connect to the seat Air Line.

  6. Cranky Yankee

    Cranky Yankee Cranky old ######

    15,317
    209
    Jan 31, 2012
    Green Bay Wi
    0
    just a plastic line get a T thread it all back together then you have both

  7. Buckeye91

    Buckeye91 Road Train Member

    1,095
    677
    Sep 26, 2011
    Midwest, USA
    0

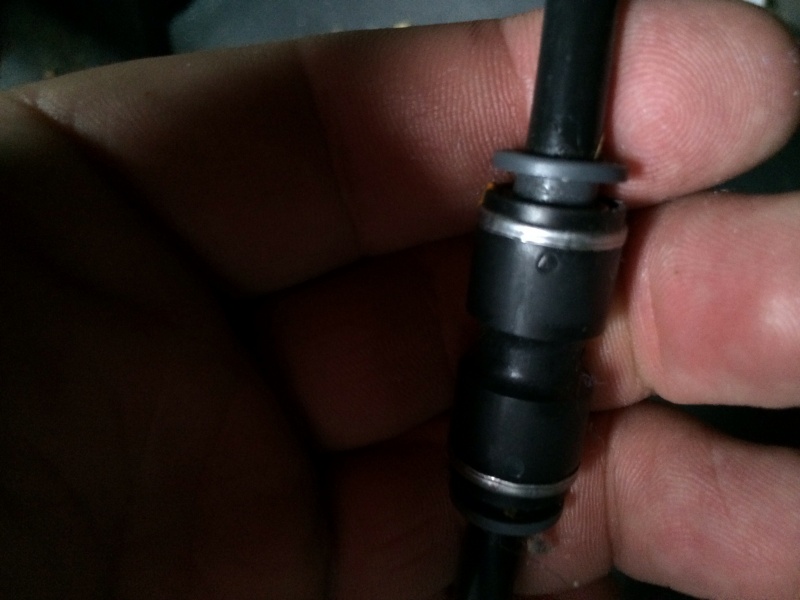

    It came with a T already. Here is the picture of the connector I have. It's a little dark.


    Attached Files:

  8. brian991219

    brian991219 Road Train Member

    2,921
    5,811
    Aug 10, 2013
    Lords Valley, PA
    0
    That is a quick connector, do as said above, drain all the air out of your tanks, then exhaust the air out of your seat. This takes the pressure off the line and then you can push in on the little collar as you pull the air line out and it will come right apart.

    Buckeye91 and The Admiral Thank this.
  9. A21CAV

    A21CAV Road Train Member

    1,848
    2,156
    Oct 4, 2011
    Laredo, TX
    0
    I'm curious why you wouldn't get an air hose with the air chuck on one end and the gladhand on the other. Why risk creating another air leak?

  10. Charli Girl

    Charli Girl Road Train Member

    1,371
    668
    Mar 23, 2013
    Houston,Tx
    0
    Omg,I've had the worst luck with these darn things, I use mine everyday at the end of my shift to keep my dash and floors free of dust. And I kept popping an air leak! Driving down the hwy and the loudest air noise you ever heard! Lmao so I had hold the line and try to get over before I lost all my air.UGH! But is was a lot easier than when my fire extinguisher got caught in my seat belt and went off and I was covered in white powder though!!!! :biggrin_25521: Bahahaha

    luvtotruck Thanks this.
  11. Pmracing

    Pmracing Road Train Member

    6,354
    3,178
    Jan 28, 2011
    Arlington Heights, IL
    0
    What do you want an air "chuck" in the seat air line for?

    For a nozzle to blow the cab clean? Some people like that. I have one in the truck I was assigned. Never used it more than once. All it does is spray the dirt around.

    Get a 12v vacuum cleaner for $20-35 with your fuel points at a truck stop.

    Mikeeee
