How do I retrieve codes

Discussion in 'Trucks [ Eighteen Wheelers ]' started by stolpsaddles, Dec 13, 2012.

Page 1 of 2
  1. Dec 13, 2012 #1
    stolpsaddles

    stolpsaddles Bobtail Member

    18
    2
    Dec 13, 2012
    Langley BC
    0
    I have a new to me 2005 Western Star constellation with a MBE 4000. Is there a way to retrieve fault codes without a reader. I have seen that there is a flashing light system but do not know how or where to activate it. read some where about a diagnostic switch on the dash but I do not have one.
    I have a check engine light that comes on after I start to drive and is off the next time I start up and repears as i drive


    Also looking for a manual on the DataStar that is in the truck.

    Thanks for any information.

    stolpsaddles, Dec 13, 2012
    stolpsaddles, Dec 13, 2012
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 14, 2012 #2
    Pablo-UA

    Pablo-UA Road Train Member

    7,604
    1,642
    Oct 11, 2010
    Borispol, Ukraine
    0
    use dashboard display. Engine codes are all MID 128

    Pablo-UA, Dec 14, 2012
    Pablo-UA, Dec 14, 2012
    #2
  4. Dec 14, 2012 #3
    stolpsaddles

    stolpsaddles Bobtail Member

    18
    2
    Dec 13, 2012
    Langley BC
    0
    Sorry I will play stupid as the truck is new to me, how do I use the dashboard display and where is it displayed.
    I know it can be done I just need to learn how.

    stolpsaddles, Dec 14, 2012
    stolpsaddles, Dec 14, 2012
    #3
  5. Dec 14, 2012 #4
    Pablo-UA

    Pablo-UA Road Train Member

    7,604
    1,642
    Oct 11, 2010
    Borispol, Ukraine
    0
    really there is no direct connection with engine ECM and diagnostic datalink. Mercedes engine control differs. All switches, gas pedal, road speed sensor are connected to VCU (in Europe ADM ore FR on MB trucks), and engine ECM is controlled with propreate CAN. So really mounted in cabine VCU got MID128 ID, and it converts Engine fault codes in SAE format. To get direct connection to EECU pin 13 on 16 pin connector is used. It is empty on US trucks and you can connect directly to EECU with Mercedes Star Diagnose tool. Via VCU you can read fault codes with dashboard ore with DDDL software.

    Pablo-UA, Dec 14, 2012
    Pablo-UA, Dec 14, 2012
    #4
  7. Dec 14, 2012 #5
    stolpsaddles

    stolpsaddles Bobtail Member

    18
    2
    Dec 13, 2012
    Langley BC
    0
    That is what I am trying to find out...How do you read the Fault codes with the dashboard on the 2005 Western Star Constellation

    stolpsaddles, Dec 14, 2012
    stolpsaddles, Dec 14, 2012
    #5
  8. Dec 15, 2012 #6
    Pablo-UA

    Pablo-UA Road Train Member

    7,604
    1,642
    Oct 11, 2010
    Borispol, Ukraine
    0
    I saw WS with Columbia dashboard, but I sugest they may use any Daimler dashboard. Can you post a picture of dash?

    But I saw WS with dashboard like in Century Class S/T with control buttond for right hand. Brows menu to get DIAGNOSTIC menu. This dashboard reads active codes only

    Pablo-UA, Dec 15, 2012
    Pablo-UA, Dec 15, 2012
    #6
  9. Dec 15, 2012 #7
    stolpsaddles

    stolpsaddles Bobtail Member

    18
    2
    Dec 13, 2012
    Langley BC
    0
    This dash has no diagnostic button.

    stolpsaddles, Dec 15, 2012
    stolpsaddles, Dec 15, 2012
    #7
  10. Dec 15, 2012 #8
    Pablo-UA

    Pablo-UA Road Train Member

    7,604
    1,642
    Oct 11, 2010
    Borispol, Ukraine
    0
    plz post a pic! I sugest dashboard is similar with shaker

    Pablo-UA, Dec 15, 2012
    Pablo-UA, Dec 15, 2012
    #8
  11. Dec 15, 2012 #9
    stolpsaddles

    stolpsaddles Bobtail Member

    18
    2
    Dec 13, 2012
    Langley BC
    0

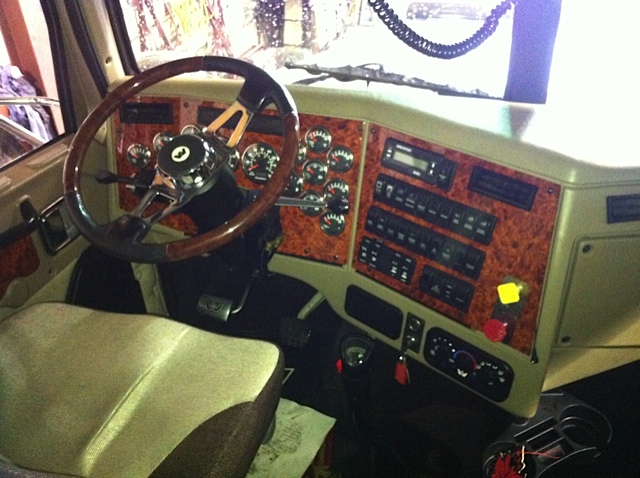

    Here are a couple of pics


    Attached Files:

    stolpsaddles, Dec 15, 2012
    stolpsaddles, Dec 15, 2012
    #9
  12. Dec 15, 2012 #10
    Pablo-UA

    Pablo-UA Road Train Member

    7,604
    1,642
    Oct 11, 2010
    Borispol, Ukraine
    0
    do you have small text display in center of dashcboard?

    Pablo-UA, Dec 15, 2012
    Pablo-UA, Dec 15, 2012
    #10
