Fan belts replacement on T2000 with 3406E

Discussion in 'Kenworth Forum' started by Slow302, Oct 7, 2018.

  1. Oct 7, 2018 #1
    Slow302

    Slow302 Medium Load Member

    348
    117
    Jul 12, 2013
    MO
    0
    Well i need replace 2 V fan belts on my 99 T2000 with 3406E. I did replece alternator belts 6 months ago and i install them over fan. But im not sure i can do same thing with fan belts since thay are 8" shorter than alternator belts. I did some research and looks like guys with W900 and 379 removed fan hub or fan but on T2000 fan is too close to the radiator so there is no way removing fan with radiator in place since i cant put any wrench in front of te fan. What other options i have
    Thanks

    Last edited: Oct 7, 2018
    Slow302, Oct 7, 2018
    Slow302, Oct 7, 2018
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 7, 2018 #2
    062

    062 Road Train Member

    6,142
    33,155
    Oct 20, 2013
    0
    Never worked on a t2000,but on old Freightliner I had. If you have a extra pair of hands,unbolt the bracket with someone holding it up with a strap and slip the on from the back side. Otherwise you’ll have to loosen up the radiator to make room.

    062, Oct 7, 2018
    062, Oct 7, 2018
    #2
  4. Oct 7, 2018 #3
    Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    CAT fan to crank v belts you almost always have to pull the fan blade to get em' on. Belts wont fit around the blade in most cases.

    Goodysnap, Oct 7, 2018
    Goodysnap, Oct 7, 2018
    #3
  5. Oct 7, 2018 #4
    Slow302

    Slow302 Medium Load Member

    348
    117
    Jul 12, 2013
    MO
    0
    Are you talkin about 4 bolts that hold fan hub to the block ?

    Slow302, Oct 7, 2018
    Slow302, Oct 7, 2018
    #4
  7. Oct 7, 2018 #5
    062

    062 Road Train Member

    6,142
    33,155
    Oct 20, 2013
    0
    Yes that and the air line. It’s heavy and whoever you get to hold it needs to be fairly strong cause of no good way to stand.

    062, Oct 7, 2018
    062, Oct 7, 2018
    #5
  8. Oct 7, 2018 #6
    Lyle H

    Lyle H Road Train Member

    1,289
    2,931
    Apr 16, 2014
    0
    You can’t get the belt over the fan even if you only do it one blade at a time?

    Lyle H, Oct 7, 2018
    Lyle H, Oct 7, 2018
    #6
  9. Oct 7, 2018 #7
    Slow302

    Slow302 Medium Load Member

    348
    117
    Jul 12, 2013
    MO
    0
    Well i have 5.5" wife, she is small but helped me twice pull radiator and CAC on Volovo. I had to buy her dinner hahha
    Anyway i tested one blade at time and it passes. Looks like T2000 have smaller fan or longer fan belt
    Thanks

    Slow302, Oct 7, 2018
    Slow302, Oct 7, 2018
    #7
  10. Oct 14, 2018 #8
    Slow302

    Slow302 Medium Load Member

    348
    117
    Jul 12, 2013
    MO
    0

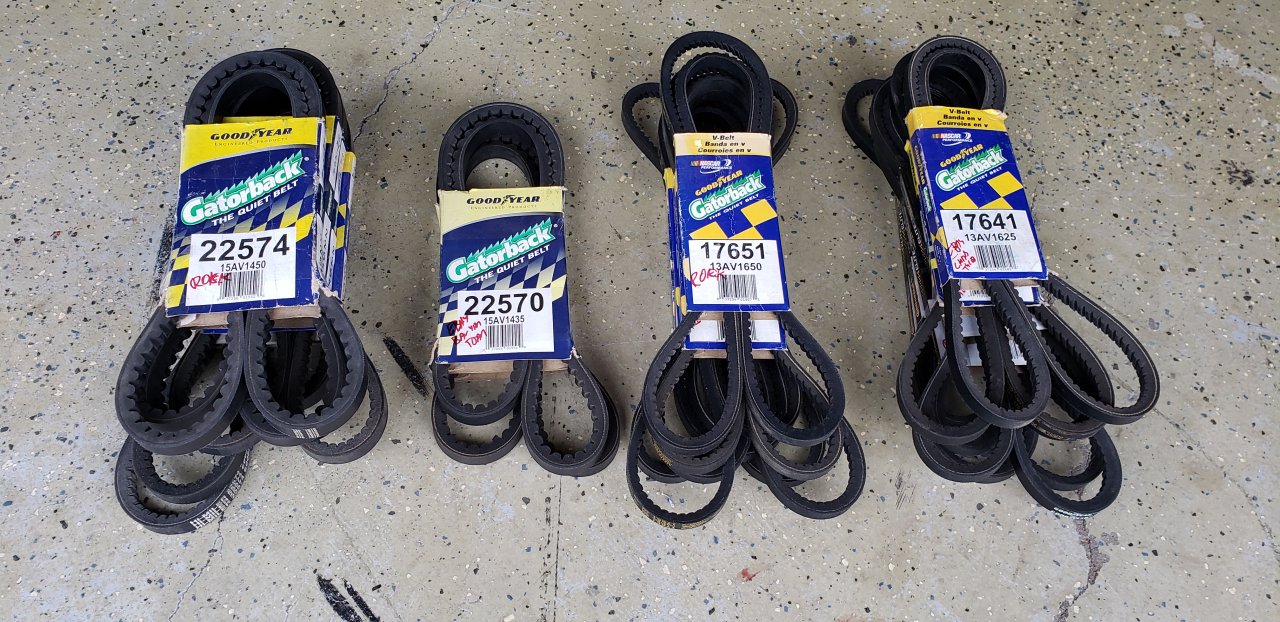

    Yesterday i replaced fan belts. It wasnt bad at all. I dont know if 379s with 3406 have bigger fan but i could easily ran belts over mine. Also i found ceap belts on Rock Auto for $.72 a piece. All Gatorbacks


    Attached Files:

    Slow302, Oct 14, 2018
    Slow302, Oct 14, 2018
    #8
