Driveshaft Orientation, Slip yoke at the trans or at the axle?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Diesel Dan 92, Apr 16, 2019.

  1. Apr 16, 2019 #1
    Diesel Dan 92

    Diesel Dan 92 Light Load Member

    137
    50
    Nov 27, 2015
    0
    Slip yoke at the trans or at the axle?

    Diesel Dan 92, Apr 16, 2019
    Diesel Dan 92, Apr 16, 2019
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Apr 16, 2019 #2
    spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    I was taught that the splines always point to power.

    spsauerland, Apr 16, 2019
    spsauerland, Apr 16, 2019
    #2
    BoxCarKidd and Oxbow Thank this.
  4. Apr 16, 2019 #4
    Diesel Dan 92

    Diesel Dan 92 Light Load Member

    137
    50
    Nov 27, 2015
    0
    The internal or external ones? Lol

    Diesel Dan 92, Apr 16, 2019
    Diesel Dan 92, Apr 16, 2019
    #4
    tucker Thanks this.
  5. Apr 16, 2019 #4
    spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    The external splines! The slip yoke would be towards the power. Pretty much everything I seen has been this way include PTO shafts, etc.

    spsauerland, Apr 16, 2019
    spsauerland, Apr 16, 2019
    #4
  7. Apr 16, 2019 #5
    Tombstone69

    Tombstone69 Road Train Member

    1,010
    1,346
    Dec 20, 2018
    Jersey shore
    0
    Make sure it's in time.

    Tombstone69, Apr 16, 2019
    Tombstone69, Apr 16, 2019
    #5
    Diesel Dan 92 Thanks this.
  8. Apr 17, 2019 #6
    Diesel Dan 92

    Diesel Dan 92 Light Load Member

    137
    50
    Nov 27, 2015
    0
    stupid question... how do you put the rear shaft together? It has caps for the ujoints not the straps

    Diesel Dan 92, Apr 17, 2019
    Diesel Dan 92, Apr 17, 2019
    #6
  9. Apr 17, 2019 #7
    Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    Show us what your working on. Spicer driveline? My guess is you have a full round u-joint. Four bolt in caps?

    If your unsure what your doing, take the whole shaft to a driveline shop and have it redone and balanced. The quality of the job will be there......but your wallet will be a bit lighter.

    Goodysnap, Apr 17, 2019
    Goodysnap, Apr 17, 2019
    #7
    Diesel Dan 92 Thanks this.
  10. Apr 18, 2019 #9
    Diesel Dan 92

    Diesel Dan 92 Light Load Member

    137
    50
    Nov 27, 2015
    0
    Yes the rear shaft has full round yokes

    Diesel Dan 92, Apr 18, 2019
    Diesel Dan 92, Apr 18, 2019
    #9
  11. Apr 18, 2019 #9
    Diesel Dan 92

    Diesel Dan 92 Light Load Member

    137
    50
    Nov 27, 2015
    0

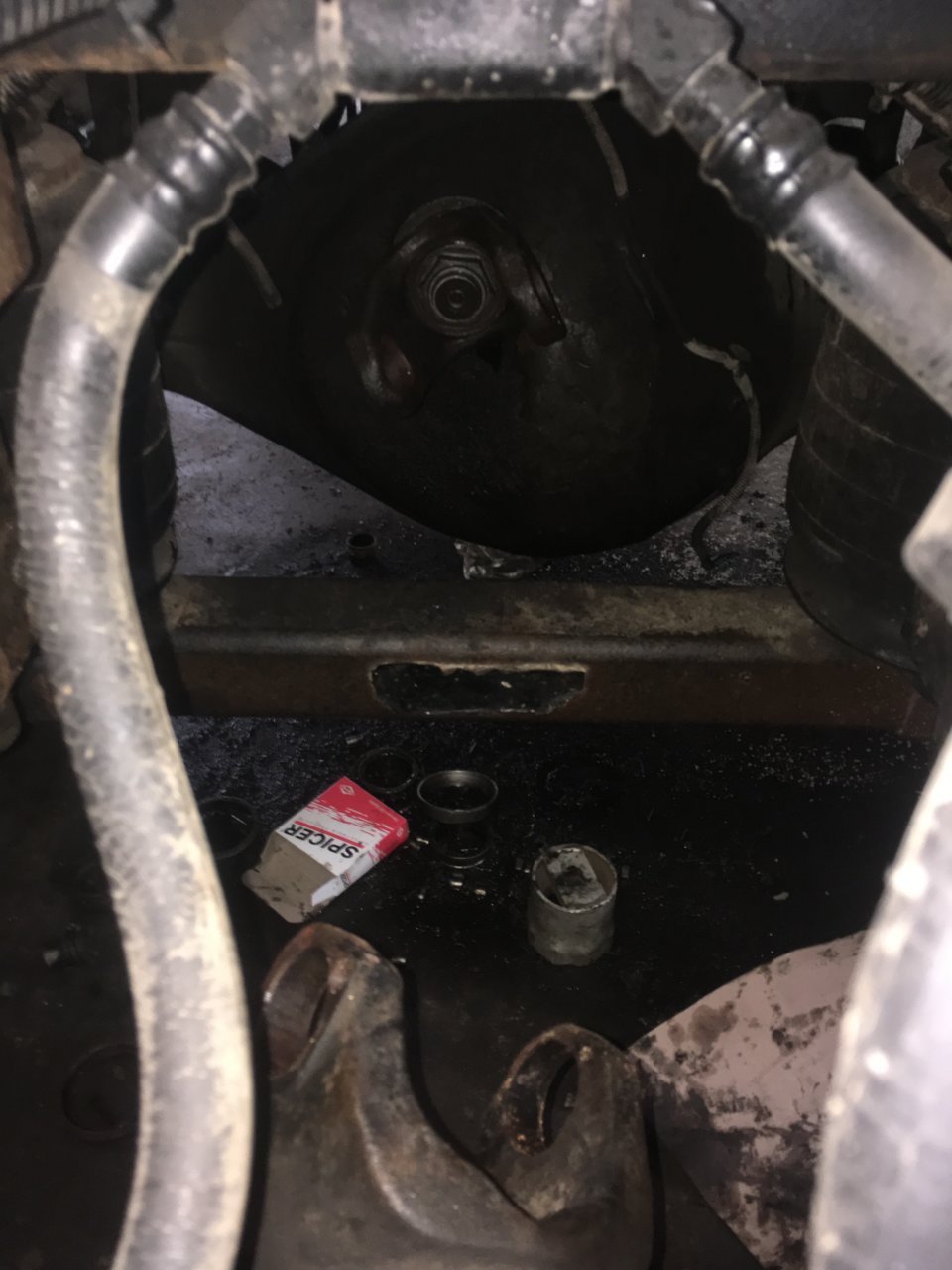

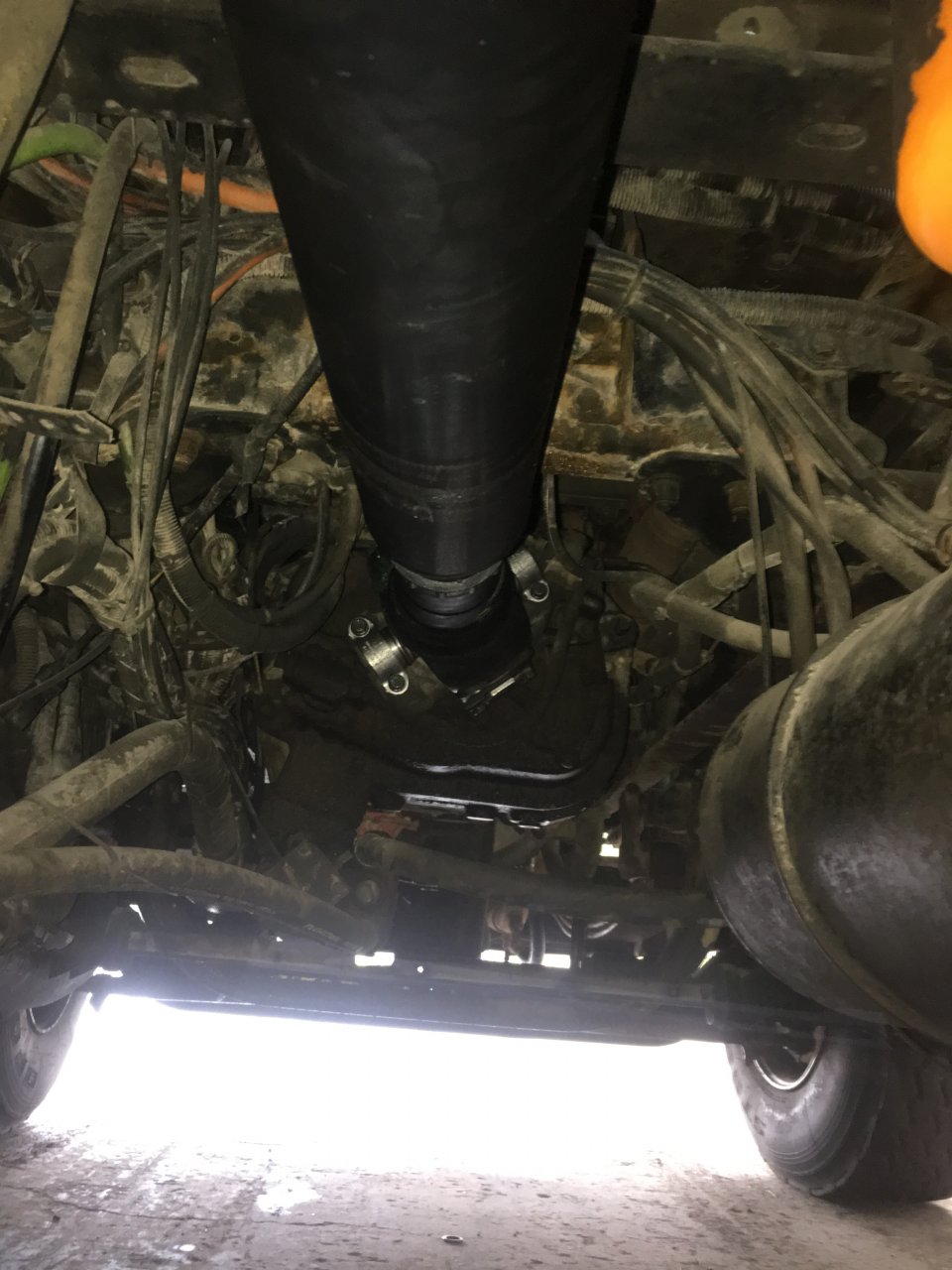

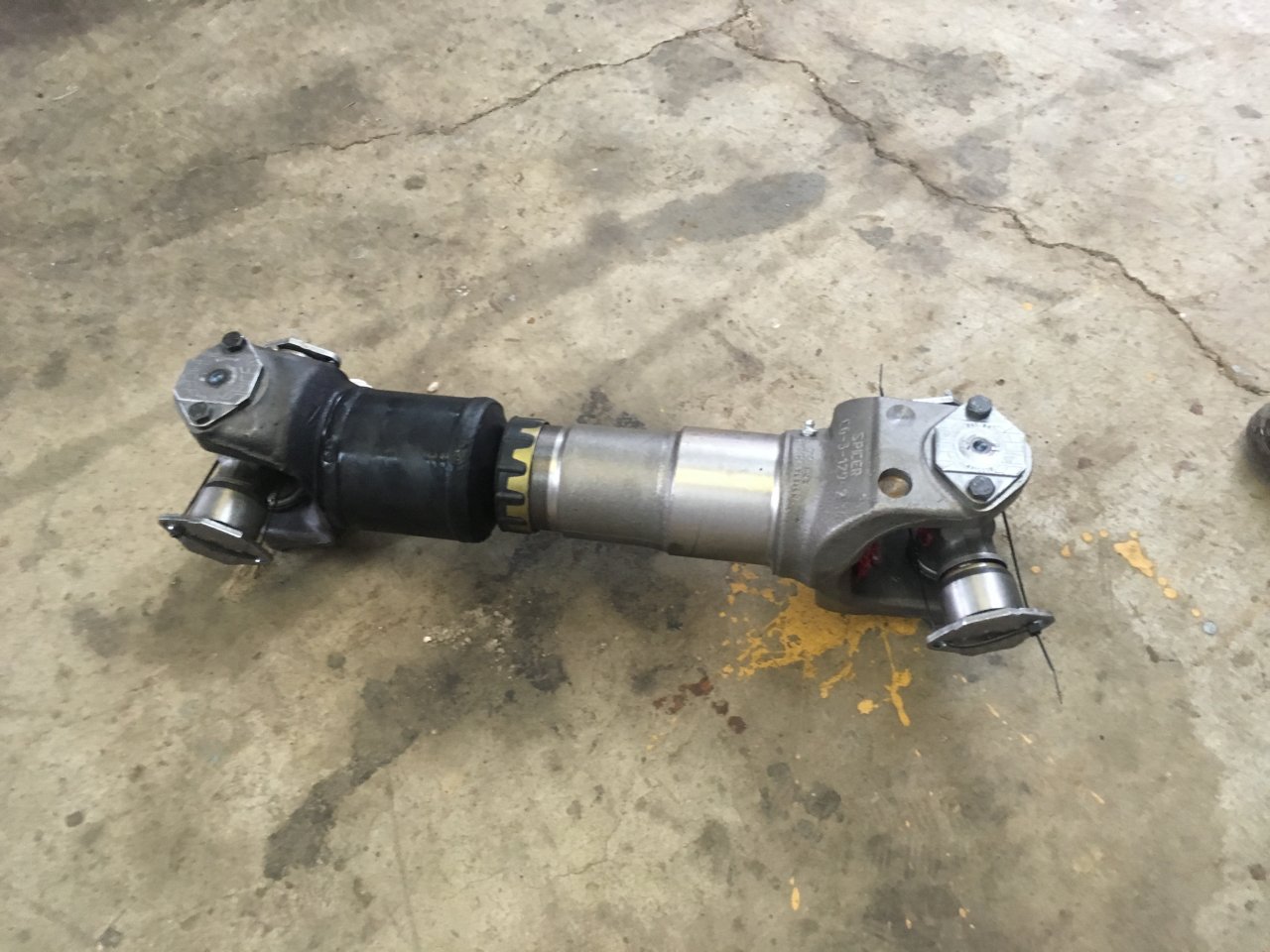

    7D6F3C4D-D1D1-4848-81DA-81BED4CB3FCC.jpeg 53117E43-D960-41CB-BB74-5E465762B157.jpeg 49CFA0FB-6ECC-4C54-A902-78C5DDBDF067.jpeg


    Attached Files:

    Diesel Dan 92, Apr 18, 2019
    Diesel Dan 92, Apr 18, 2019
    #9
  12. Apr 18, 2019 #10
    Goodysnap

    Goodysnap Road Train Member

    3,694
    8,948
    Jul 12, 2017
    0
    Clean the yokes up good and remove all rust. Wire wheel or flap wheel works good. Pull the caps off the new u joints. Get everything lined up and slide the new caps in and torque. A little oil or antisieze help the caps slide in nice and easy. Usually tap them in with a small dead blow.

    Goodysnap, Apr 18, 2019
    Goodysnap, Apr 18, 2019
    #10
    Diesel Dan 92 Thanks this.
