Detroit Wiring Diagrams

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by pushbroom, Jan 8, 2020.

Page 1 of 3
  1. Jan 8, 2020 #1
    pushbroom

    pushbroom Road Train Member

    1,777
    7,253
    Sep 1, 2012
    0
    Time for another one I guess. I don't work on detroits or know jack #### about em but happen to have some handy PDF's kickin around.

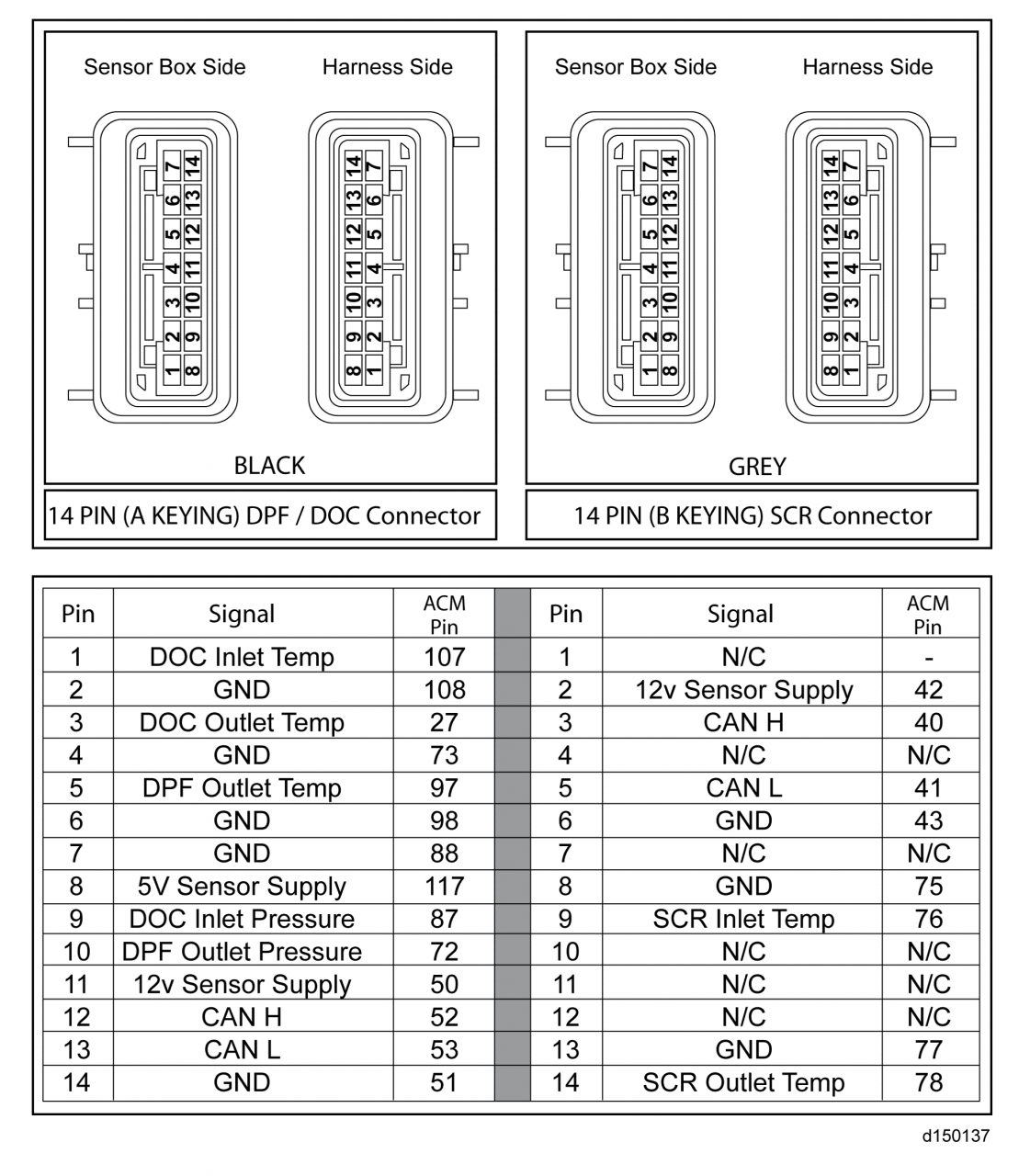

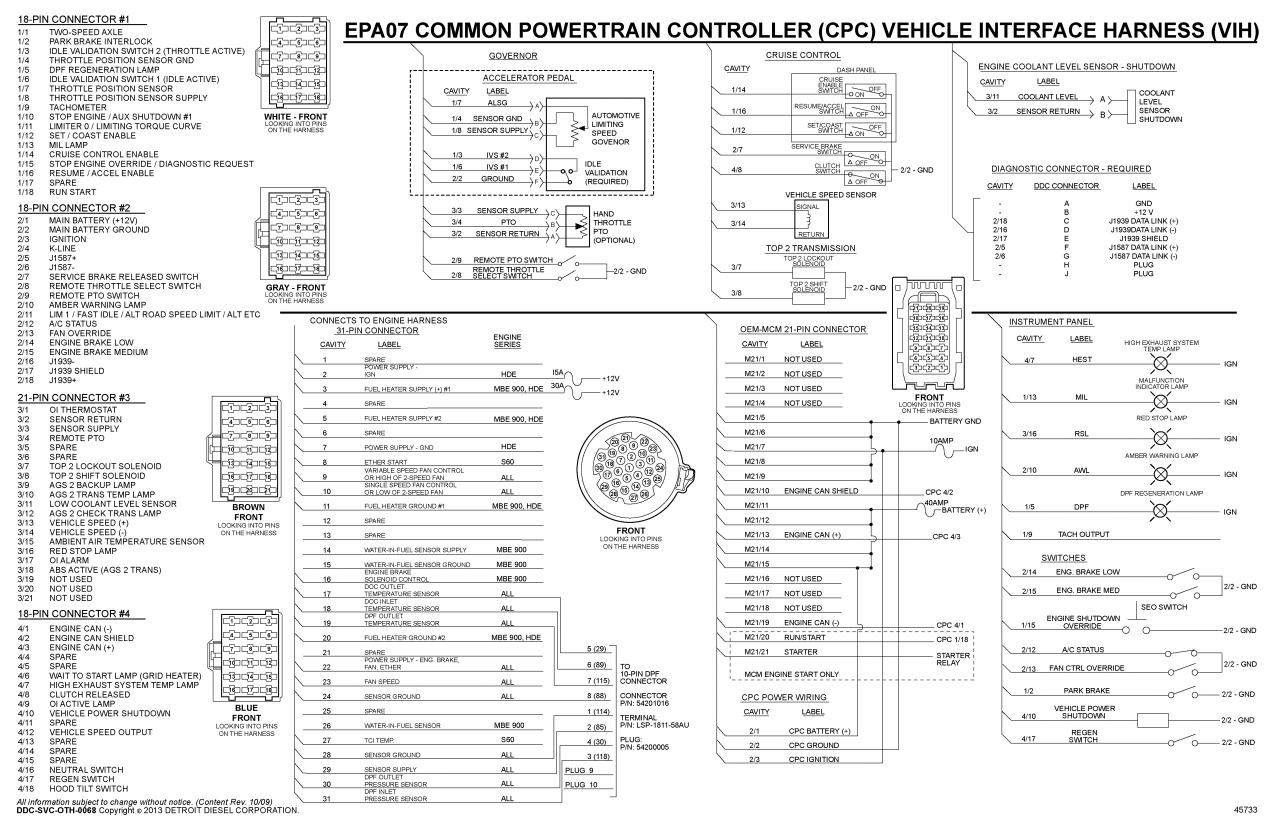

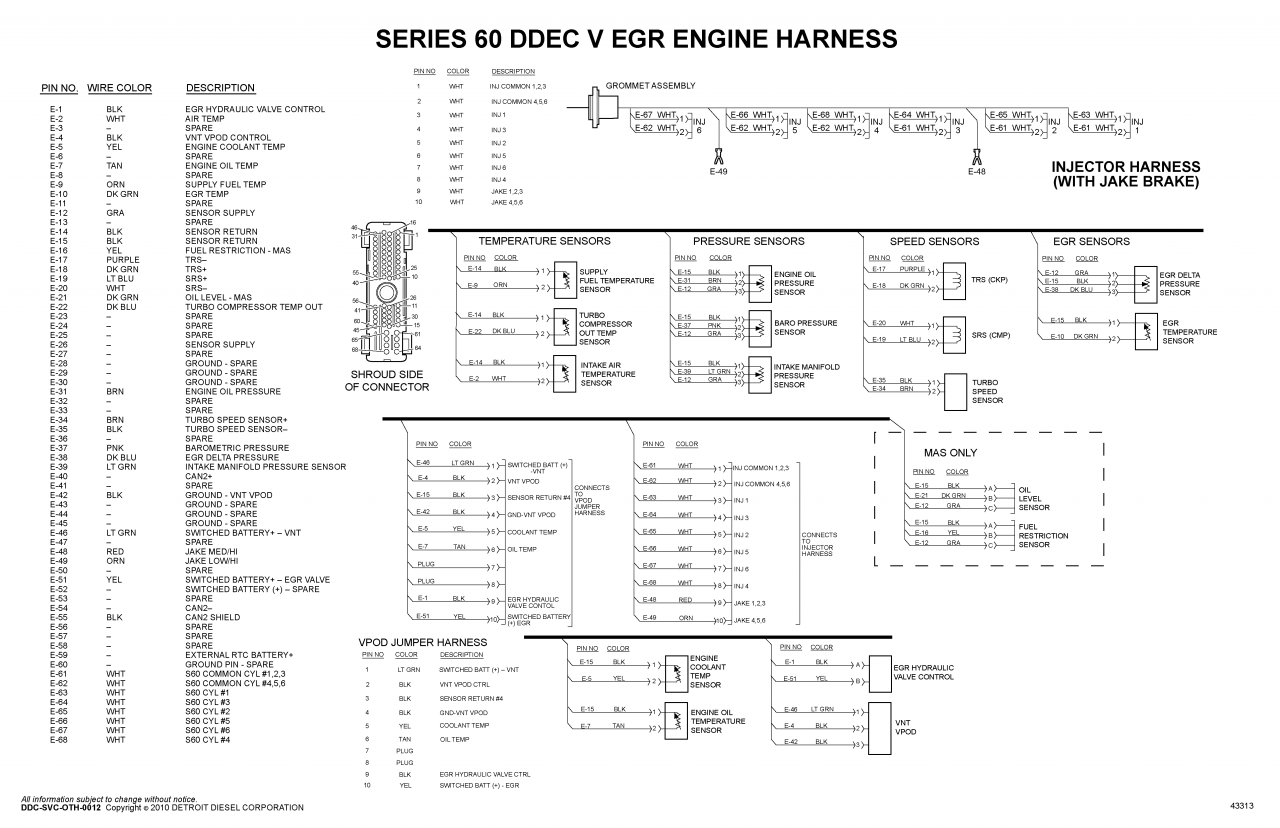

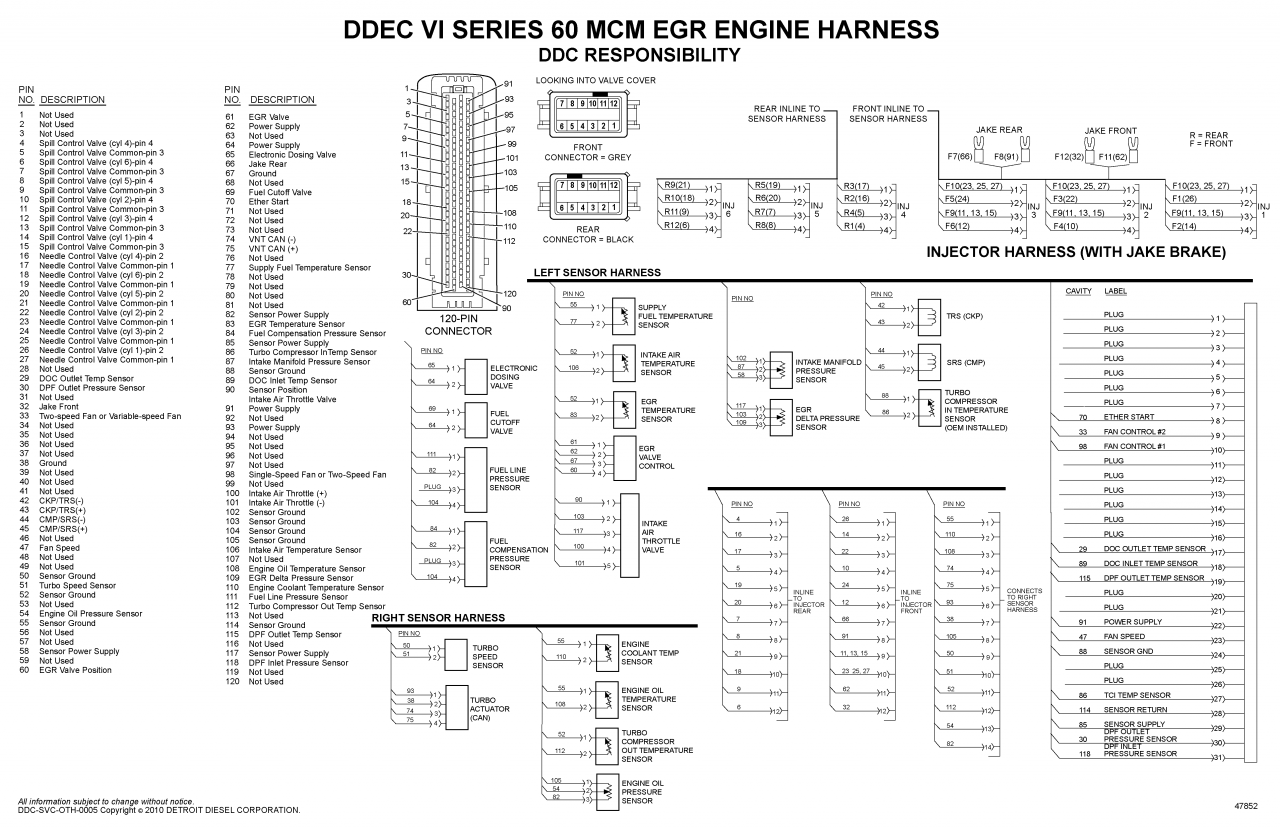

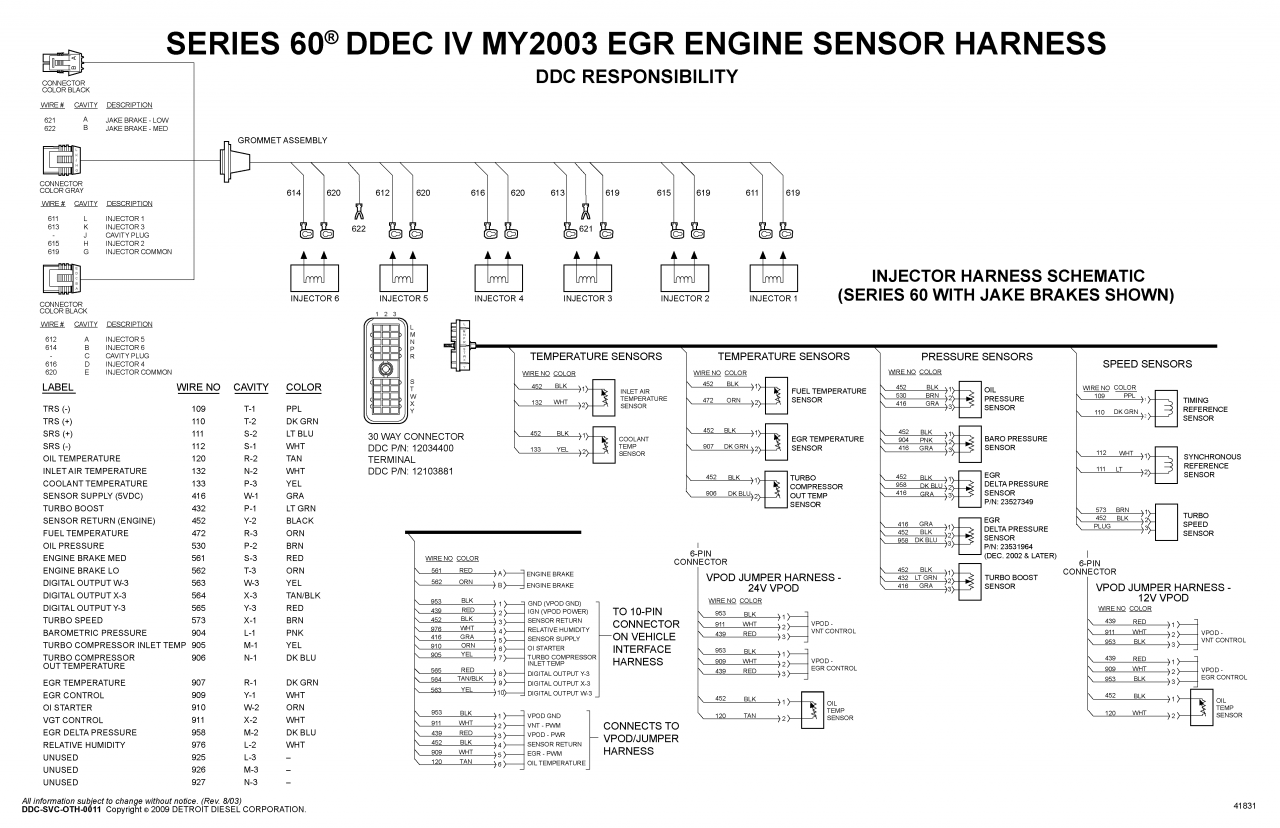

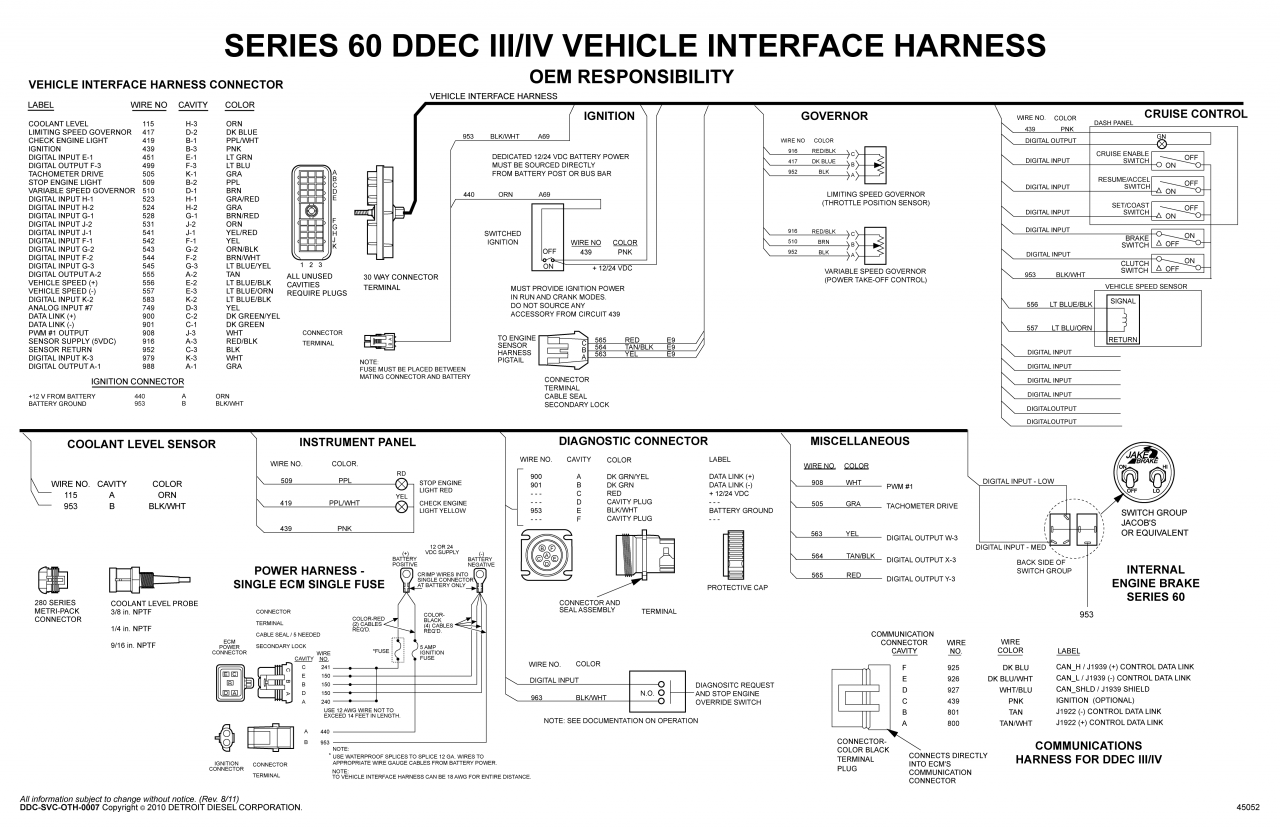

    60 series ddec 3-5


    Attached Files:

    pushbroom, Jan 8, 2020
    pushbroom, Jan 8, 2020
    #1
    Sam987sa, HANS_FTL, sodbuster59 and 17 others Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jan 8, 2020 #2
    pushbroom

    pushbroom Road Train Member

    1,777
    7,253
    Sep 1, 2012
    0

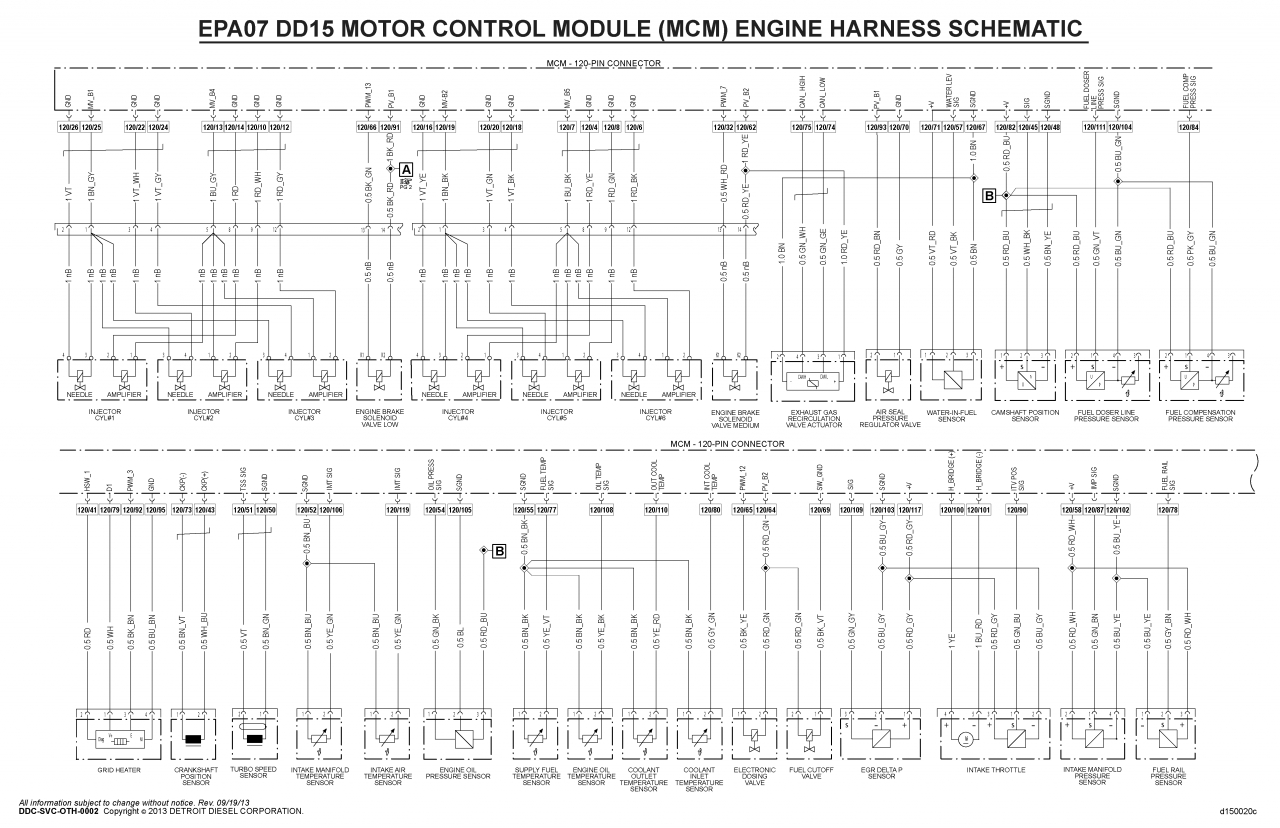

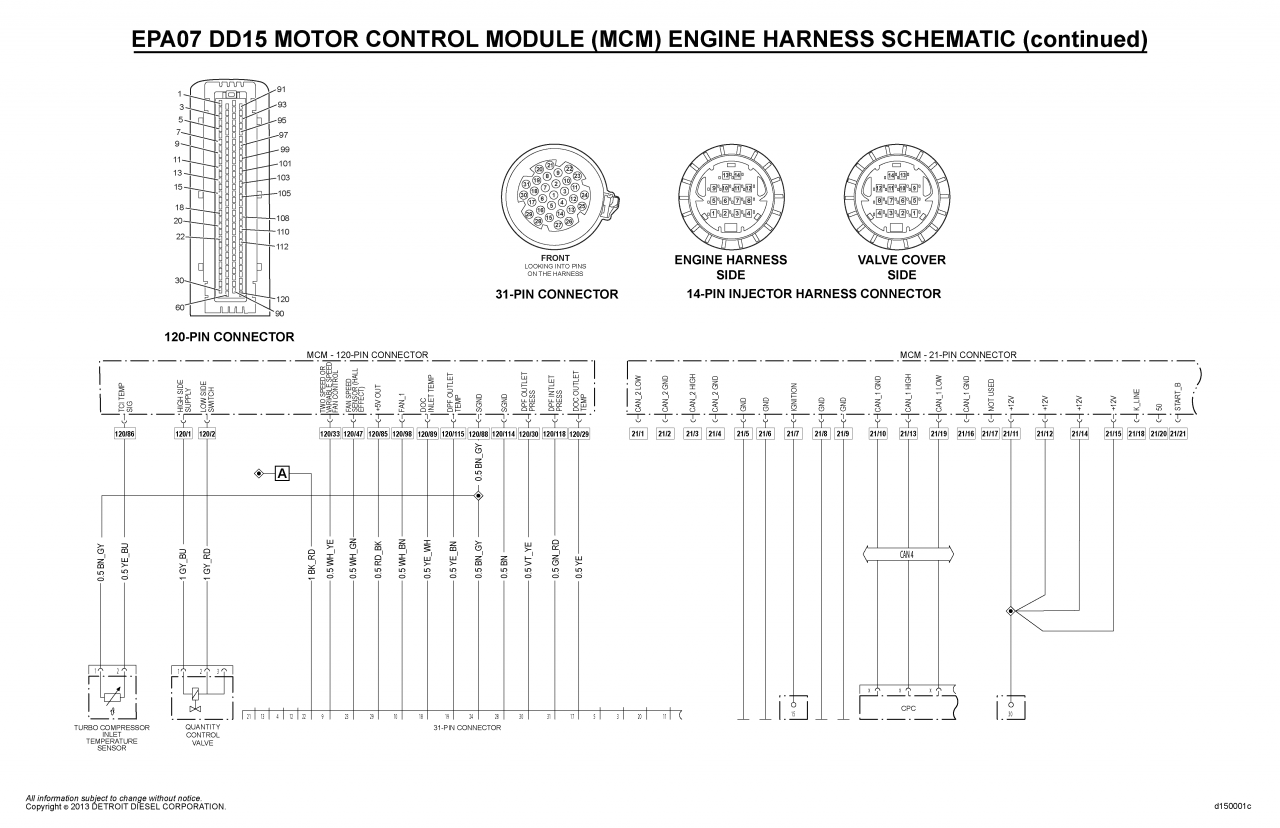

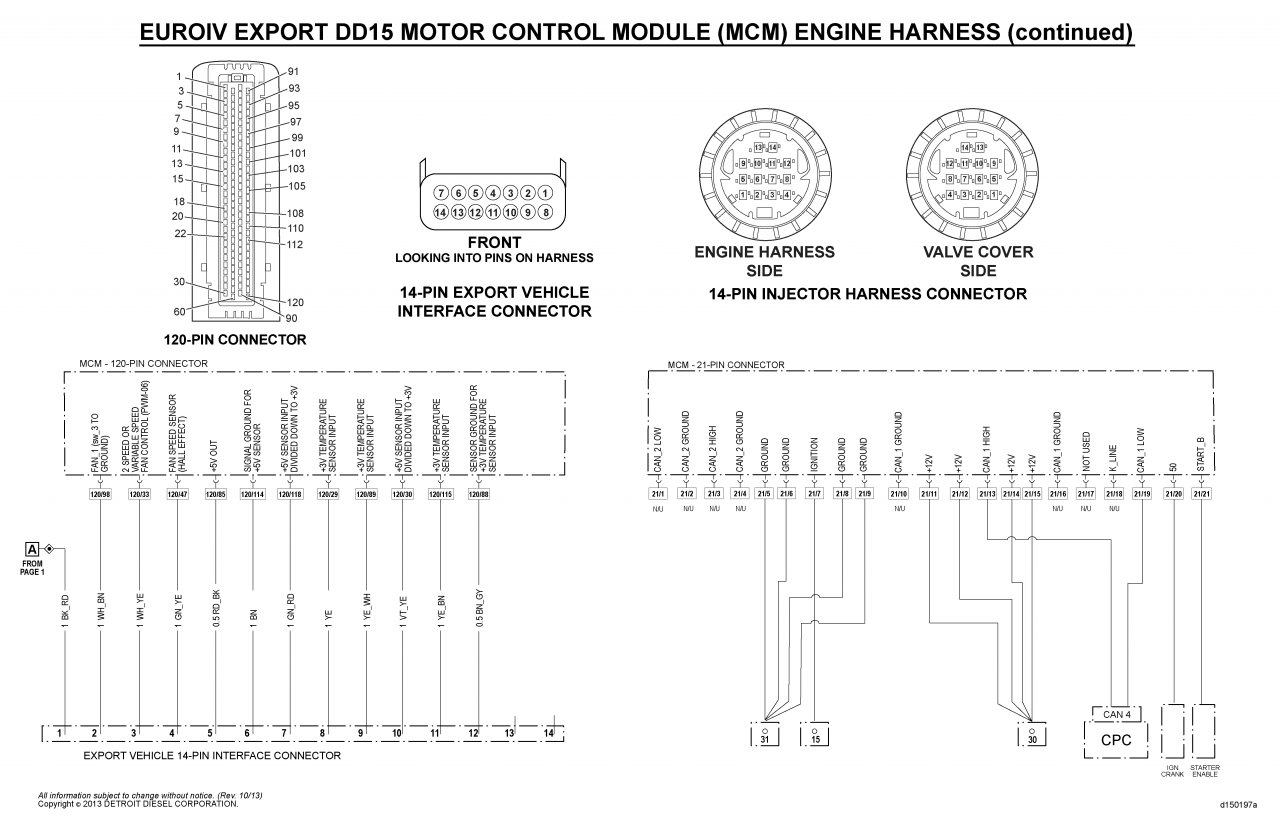

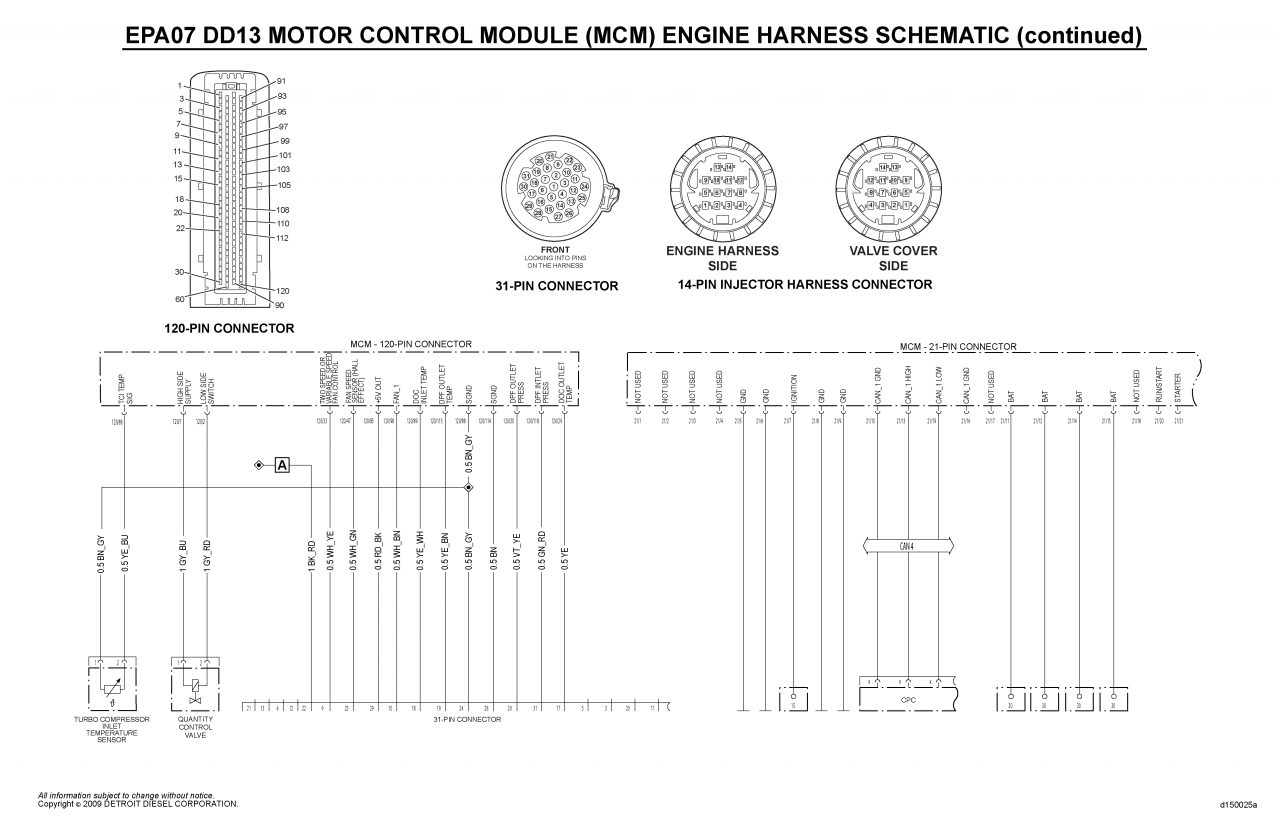

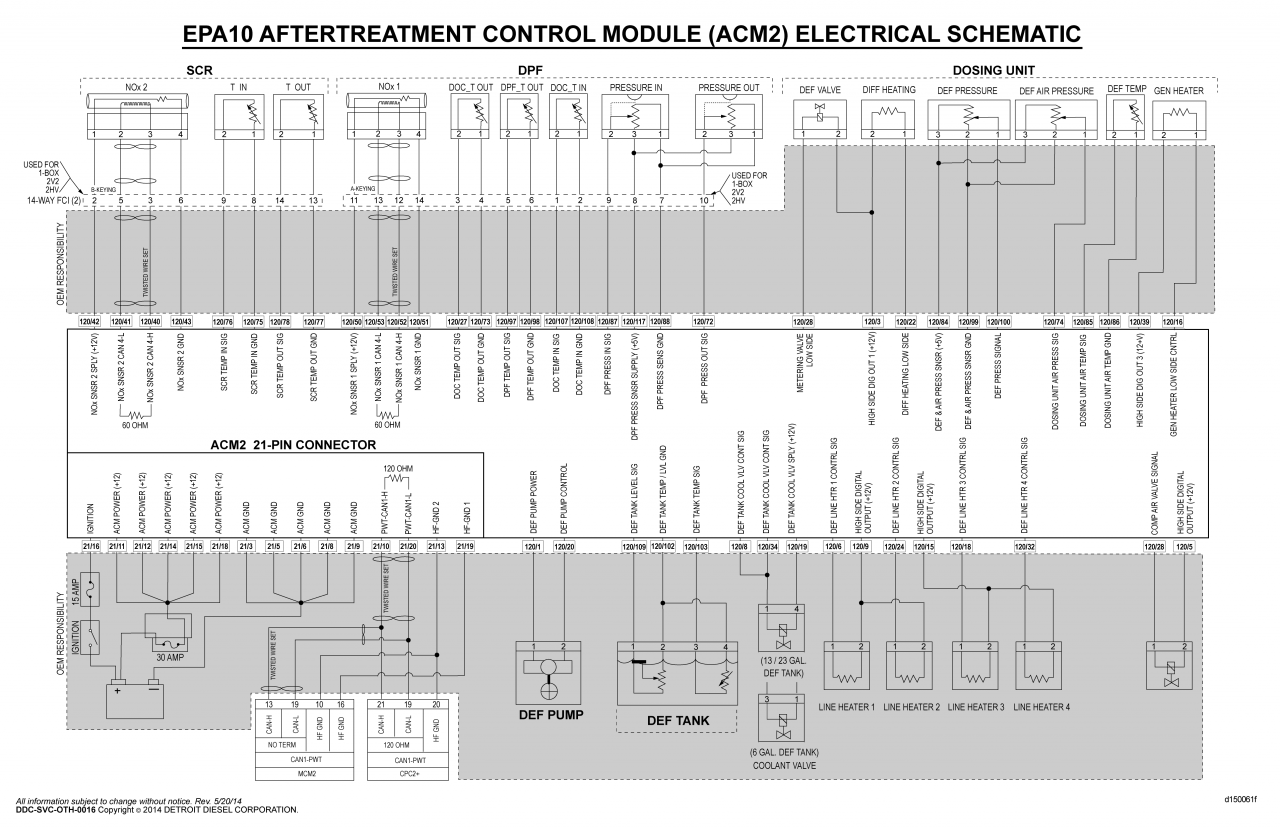

    DD15-13 stuff


    Attached Files:

    pushbroom, Jan 8, 2020
    pushbroom, Jan 8, 2020
    #2
    Stray_Dog, bhlands, habfleet and 10 others Thank this.
  4. Jan 8, 2020 #3
    pushbroom

    pushbroom Road Train Member

    1,777
    7,253
    Sep 1, 2012
    0

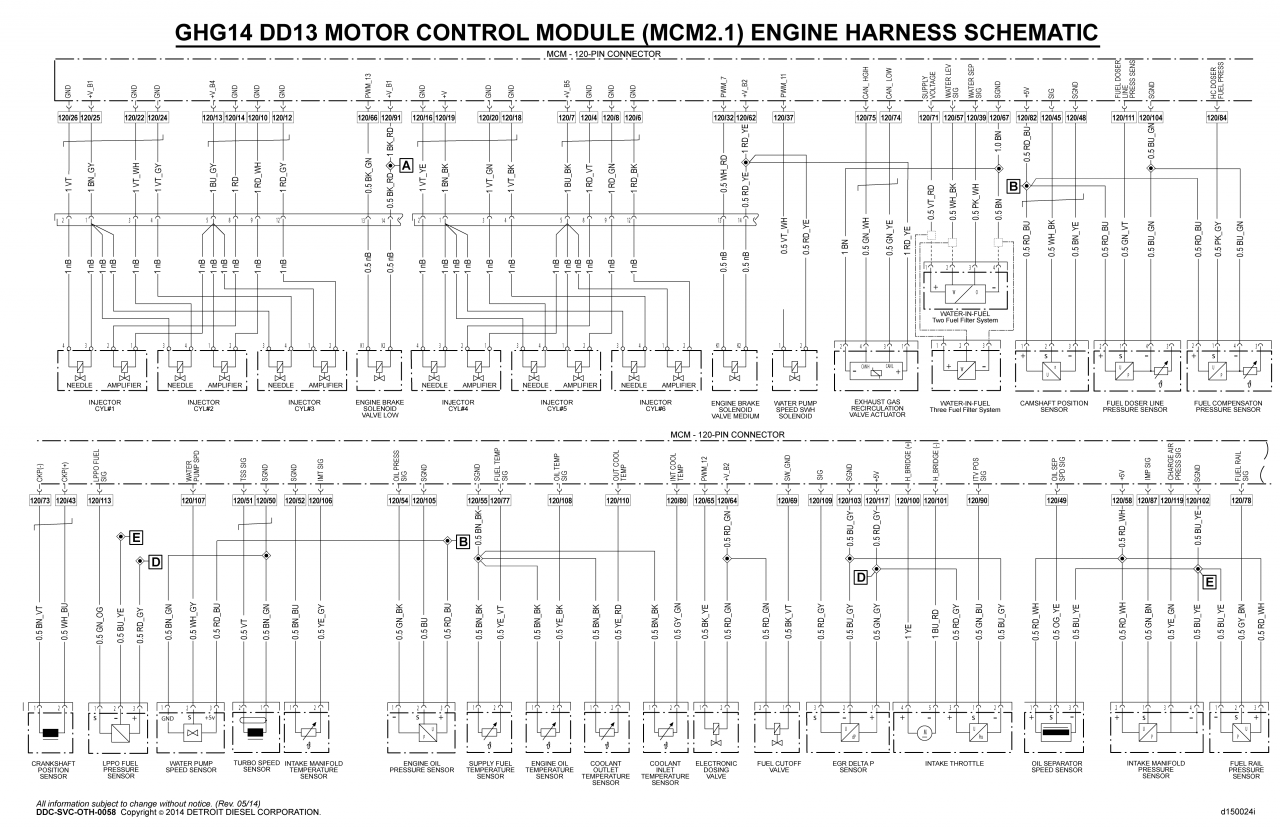

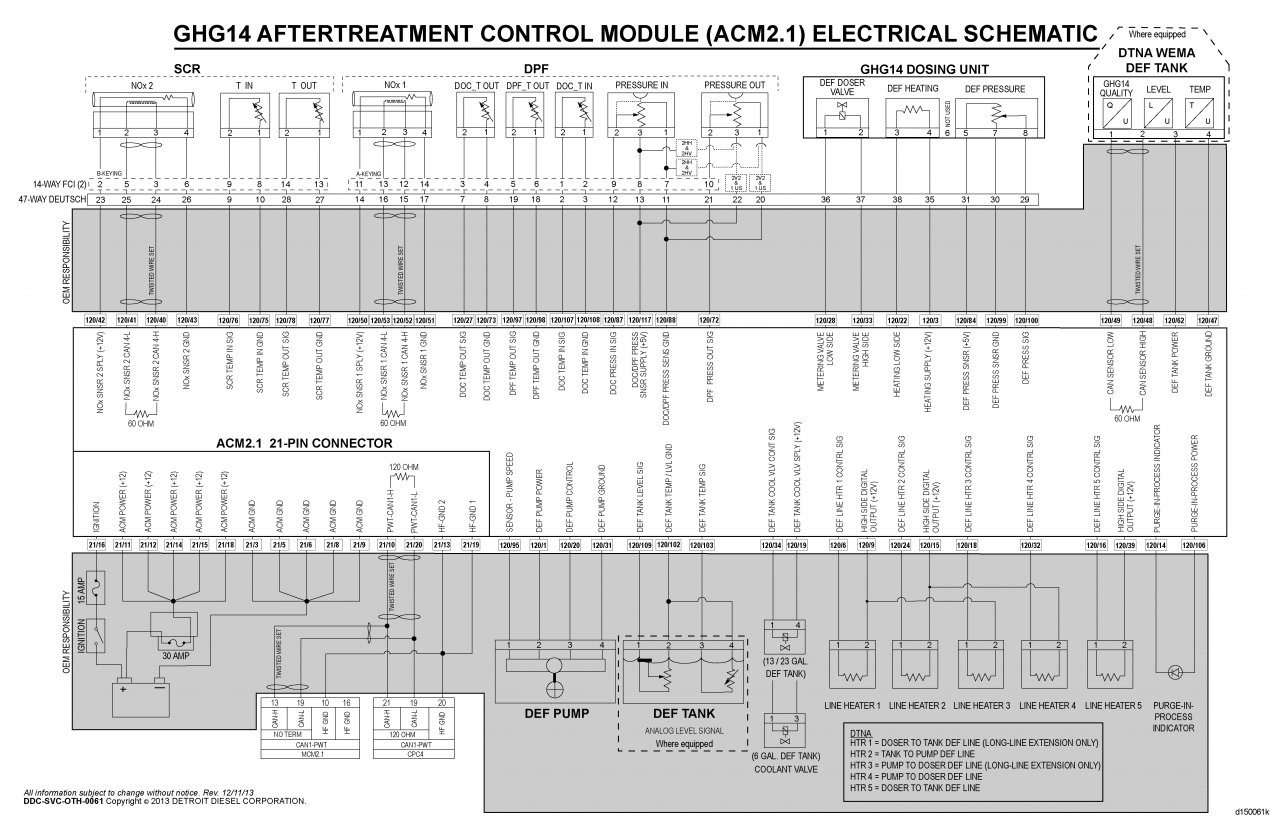

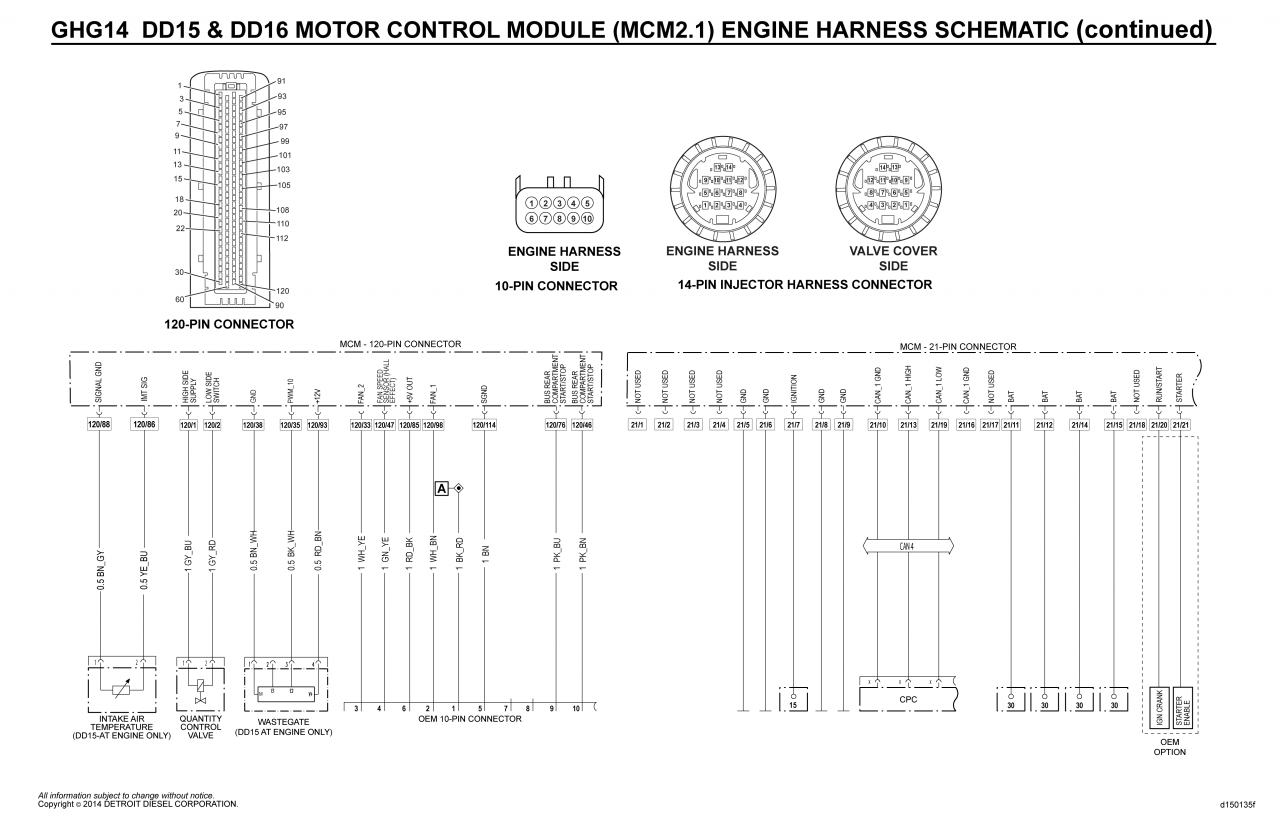

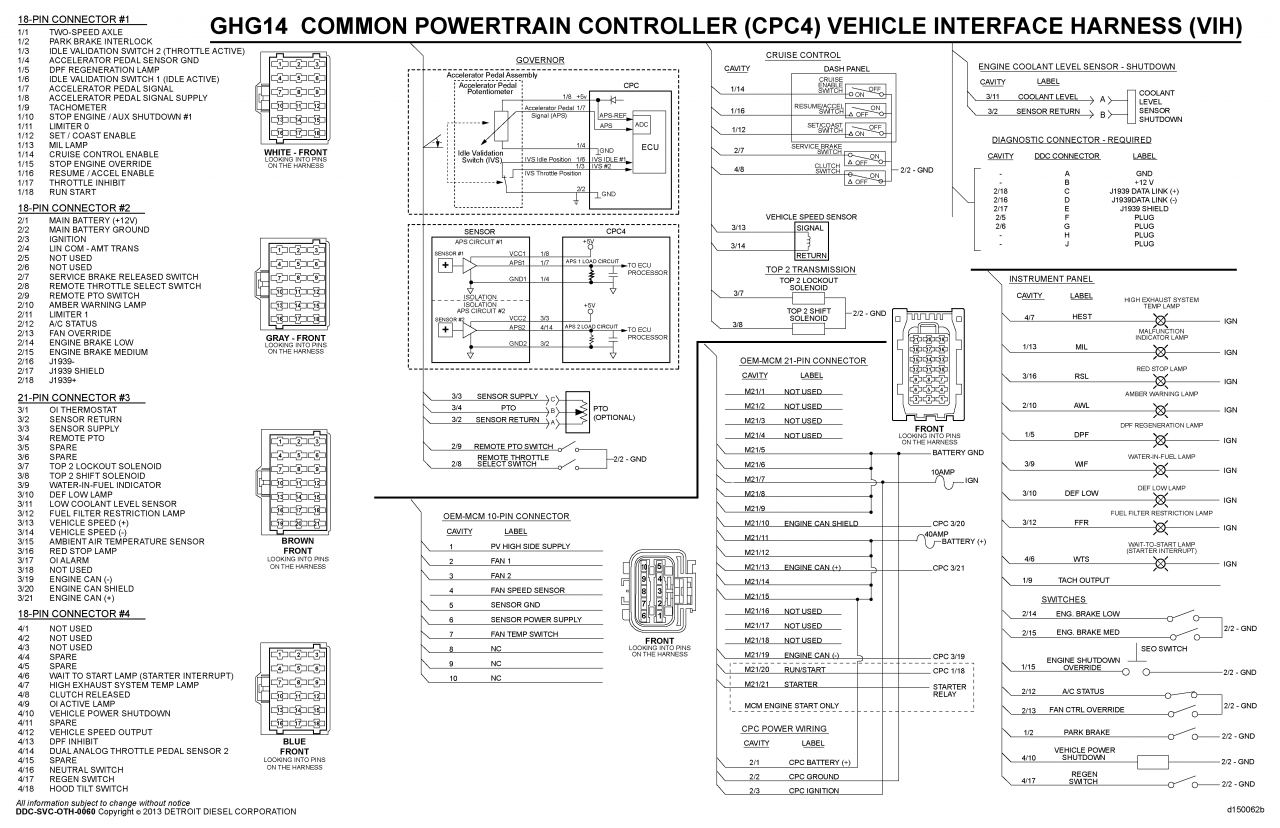

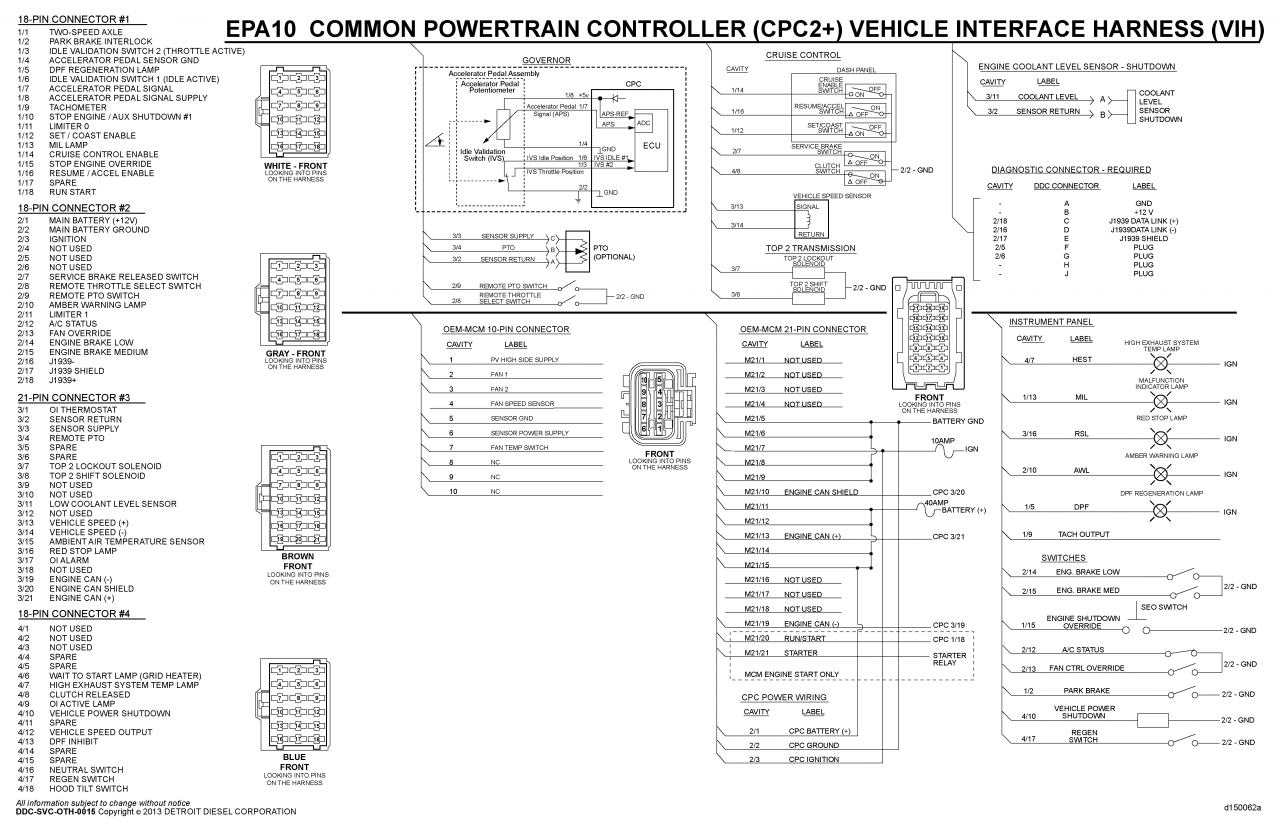

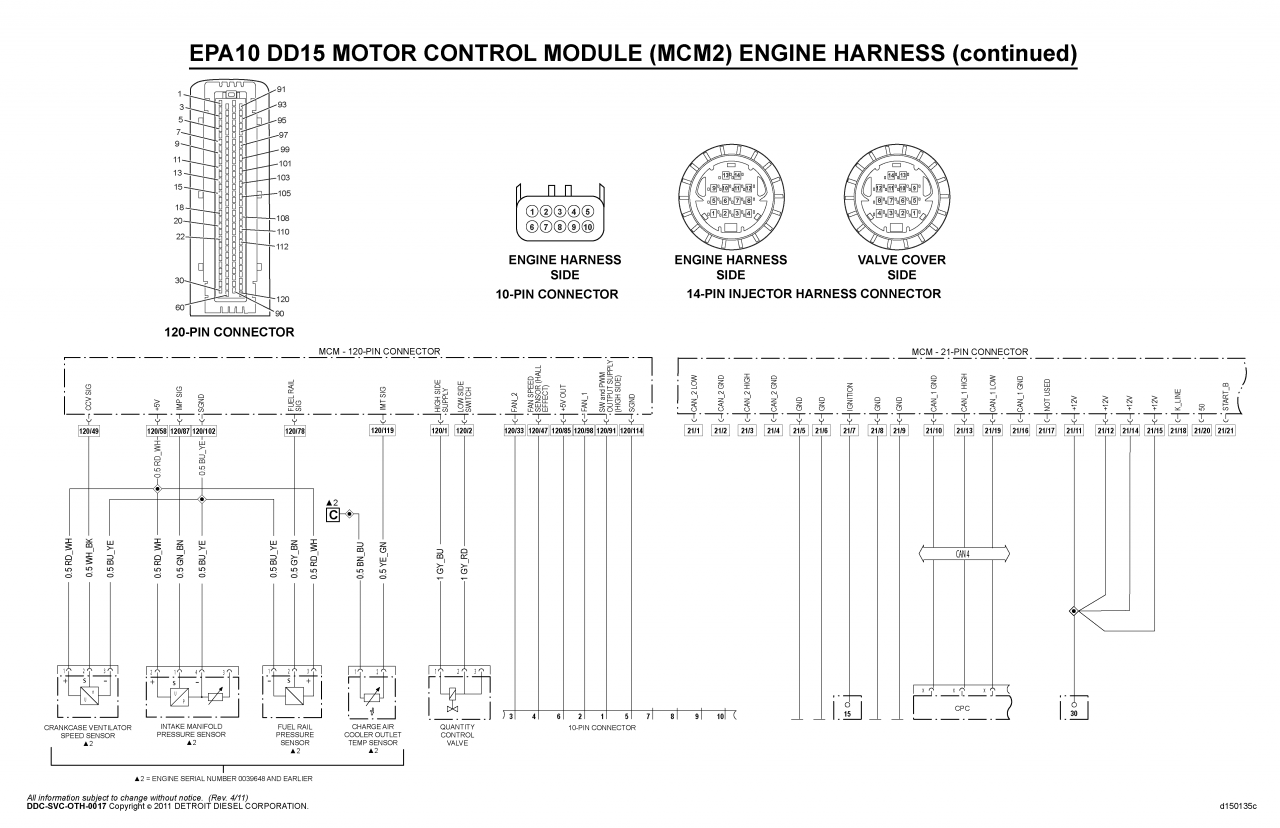

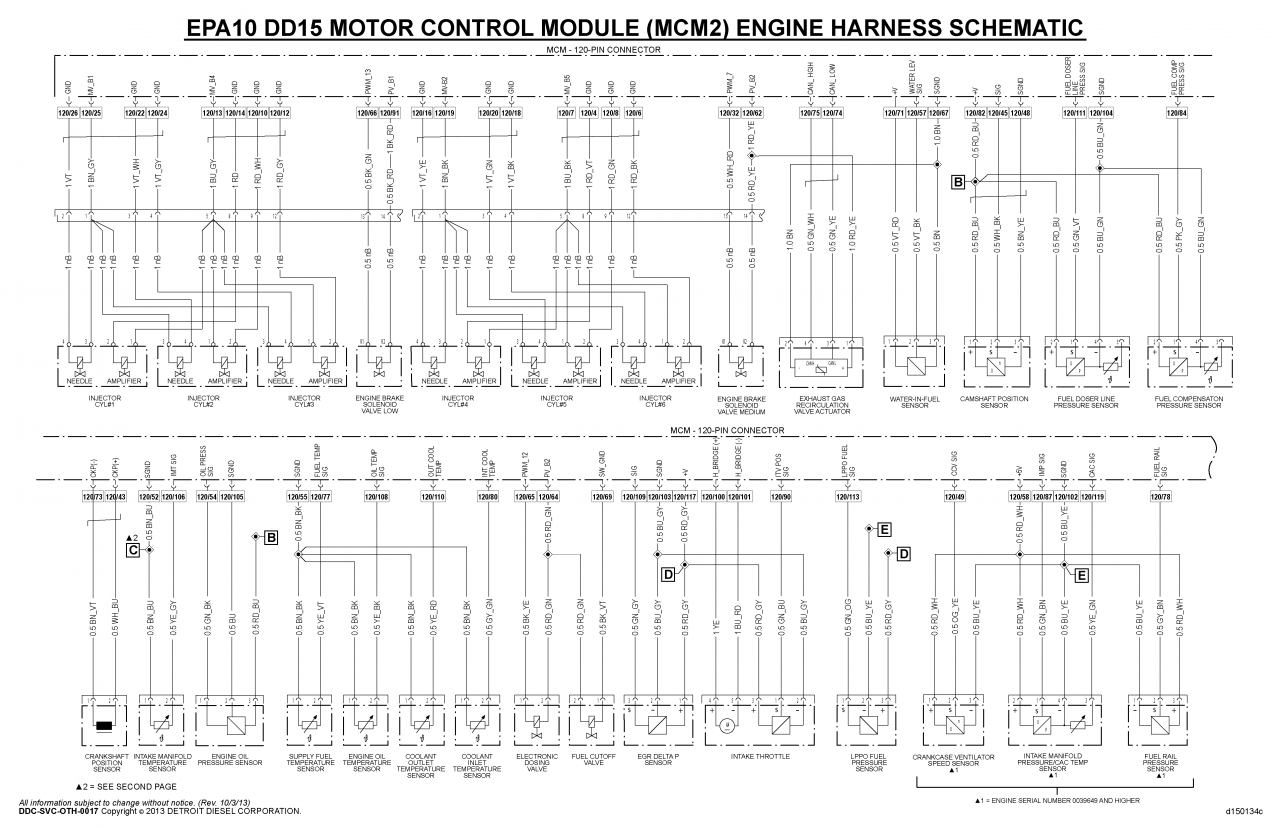

    More DD15


    Attached Files:

    pushbroom, Jan 8, 2020
    pushbroom, Jan 8, 2020
    #3
    Stray_Dog, bhlands, habfleet and 10 others Thank this.
  5. Jan 8, 2020 #4
    pushbroom

    pushbroom Road Train Member

    1,777
    7,253
    Sep 1, 2012
    0

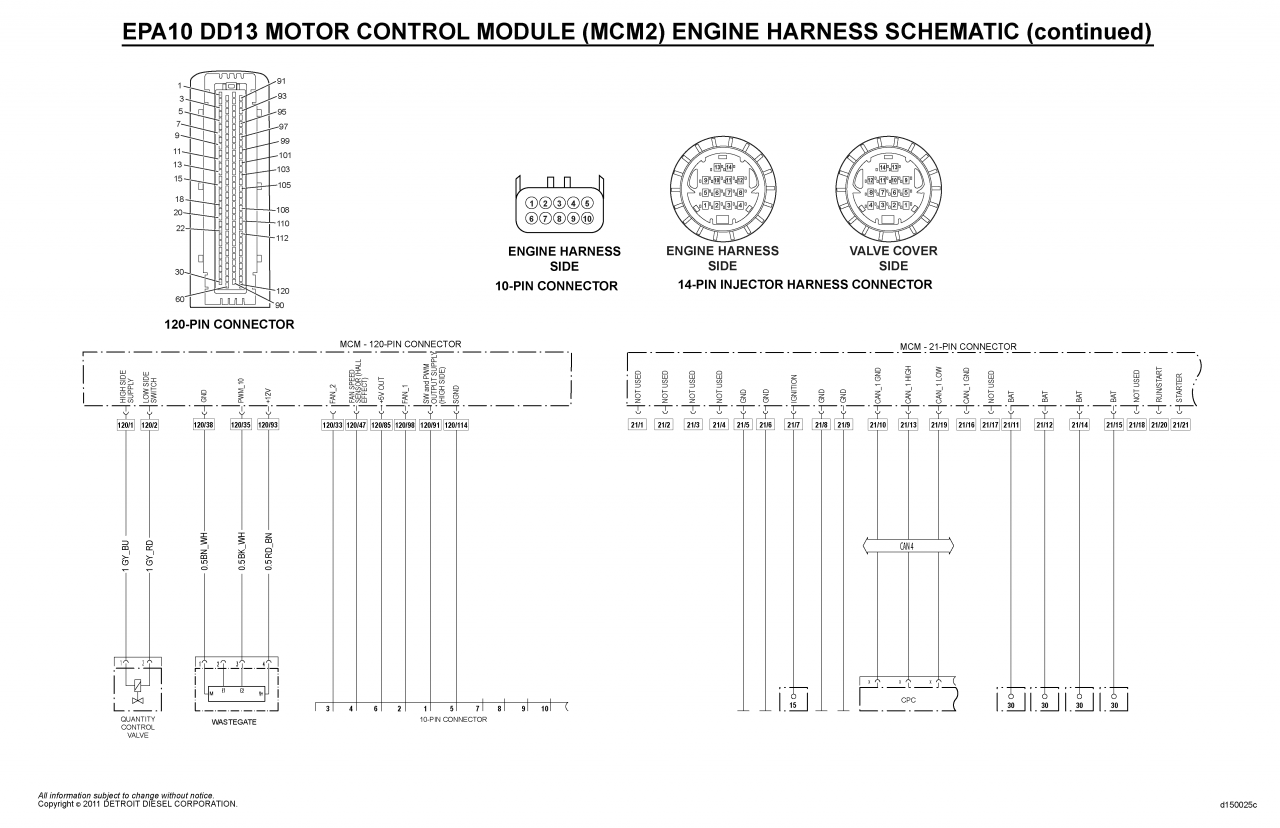

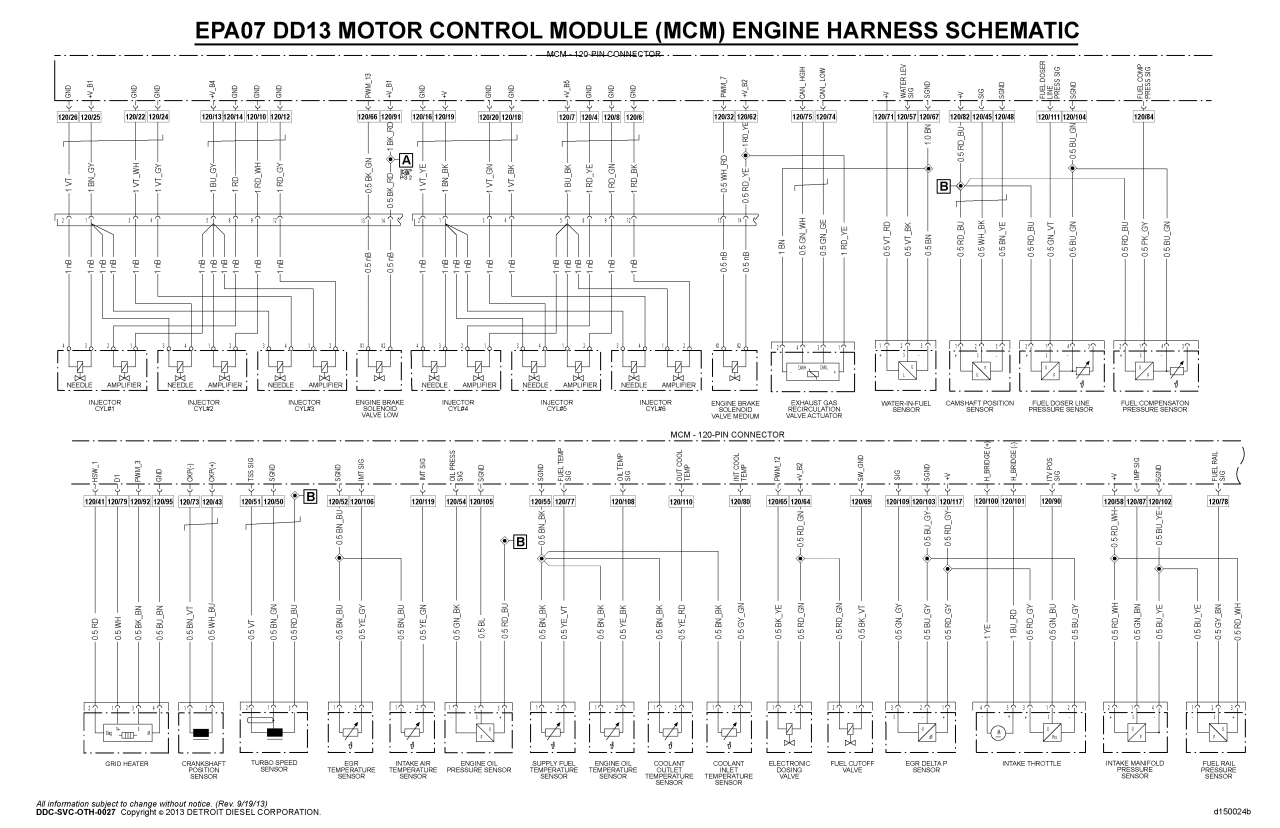

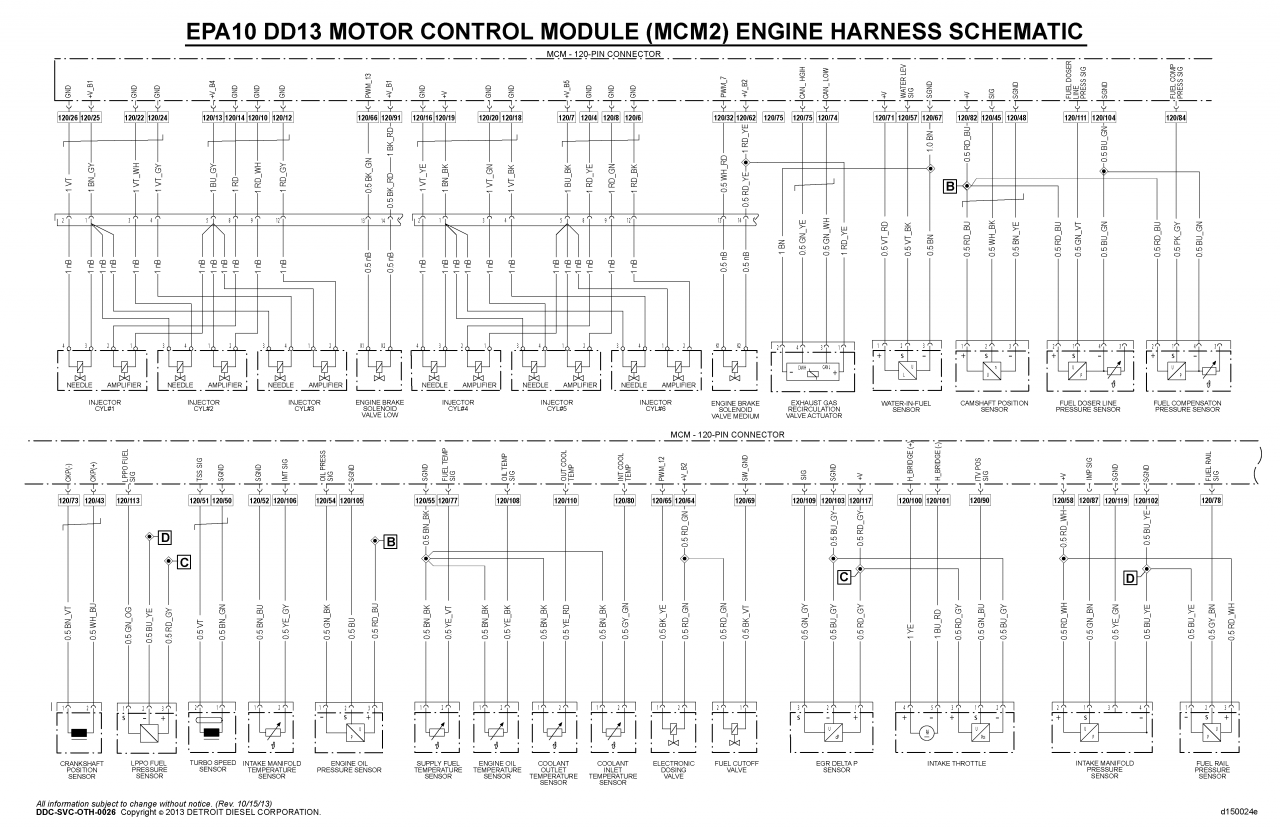

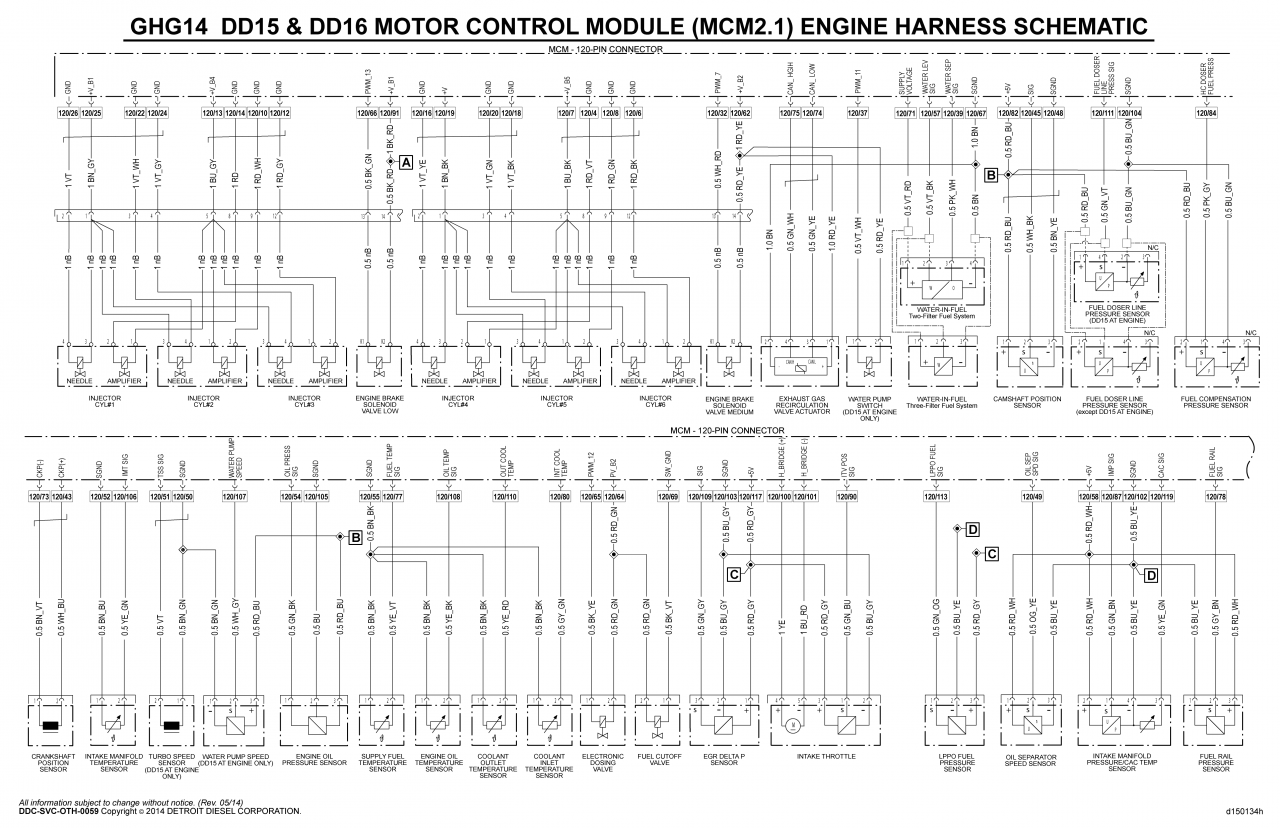

    One more round
