Changing out caterpillar engine cam and crank sensors

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Cam Roberts, Dec 31, 2018.

  1. Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0
    I have a 2ks serial number c12. 2002 model. My tech manual says after install to calibrate sensors. That can only be done with cat ET. When i look in the manual about calibrating, it says to only calibrate if you mess with the timing gears. Maunel contradicts itself. The question is is it really necessary to calibrate the sensor when you never messed with the timing gears? Every where i searched on here and the internet, I read that guys just take 5 minutes and swap the sensors out in their c15's and c12's and start he truck up and drive.

    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    No need to calibrate on your 2KS.

    Oxbow Thanks this.
  4. Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0
    i didnt think so after research. but thougt it would be god to double ceck. thank u

    Oxbow Thanks this.
  5. Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0

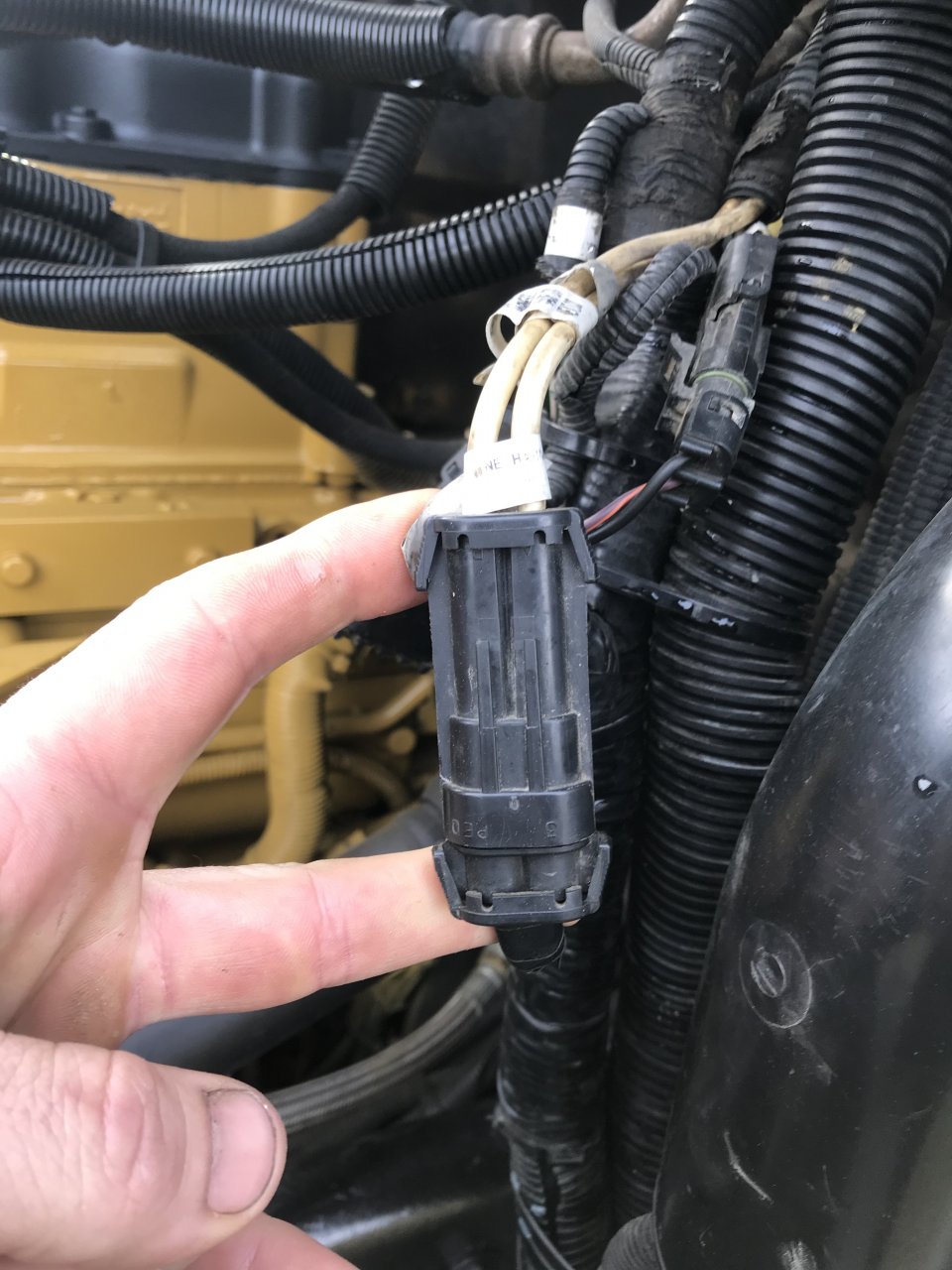

    This plug is for the starter relay on my pete. I need new plug and the pins inside. Do you know the name or part number on this plug and the pins. Having hard time searching for it. Peterbilt didn’t have any and forget the name of it that they told me

    Oxbow Thanks this.
  6. Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0

  7. spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    Looks like a standard weather pack 2 pin connector with 12 gauge wire.

    Oxbow and pushbroom Thank this.
  8. Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0
    Ok thanks. No big deal if I just cut it off and bypass it for now with connectors right?

    Oxbow Thanks this.
