change grill on freightliner classic

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by united972, May 2, 2020.

  1. May 2, 2020 #1
    united972

    united972 Light Load Member

    157
    22
    May 26, 2016
    0
    whats the best or easiest way to swap a grill? would i have to take off hood?

    united972, May 2, 2020
    united972, May 2, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 2, 2020 #2
    Dino soar

    Dino soar Road Train Member

    4,789
    26,858
    Dec 8, 2017
    0
    I think the nuts are on the inside of the hood.

    So if it were me, I would set up a table right under the hood where it's flipped.

    You may have to use 2x4s or something to make it high enough but you should be able to lay the new grill right in there without taking the hood off.

    Dino soar, May 2, 2020
    Dino soar, May 2, 2020
    #2
    Rideandrepair Thanks this.
  4. May 2, 2020 #3
    Rideandrepair

    Rideandrepair Road Train Member

    17,207
    55,821
    Aug 8, 2015
    0

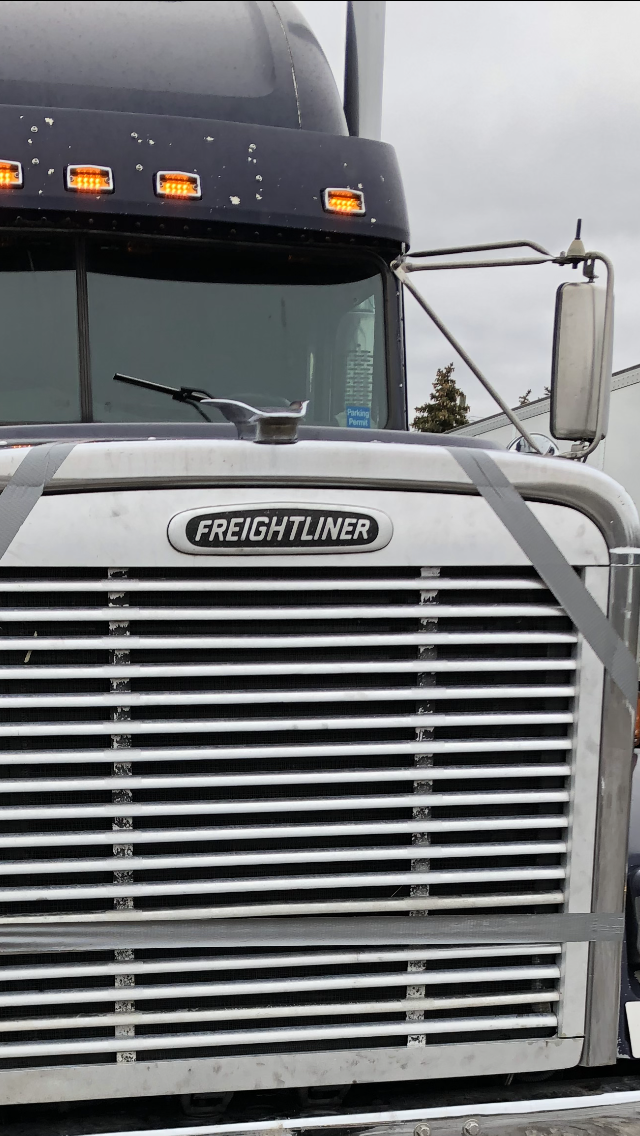

    39975090-32EE-4962-A532-9EF5AFB3967B.png Best way I’ve found, 4 - 7/16 nuts in each inside corner. Rubber mounts/ bolts might break. If so you’ll need to replace mounts,on grill before re installing.

    Rideandrepair, May 2, 2020
    Rideandrepair, May 2, 2020
    #3
    Final Drive Thanks this.
  5. May 2, 2020 #4
    Final Drive

    Final Drive Road Train Member

    1,573
    2,505
    Jan 21, 2015
    0
    I was cheap on the duct tape :)


    Attached Files:

    Final Drive, May 2, 2020
    Final Drive, May 2, 2020
    #4
    Rideandrepair Thanks this.
