Cascadia dash out

Discussion in 'Freightliner Forum' started by Lt89lee, Sep 16, 2019.

Page 1 of 3
  1. Sep 16, 2019 #1
    Lt89lee

    Lt89lee Bobtail Member

    3
    0
    Sep 15, 2019
    0

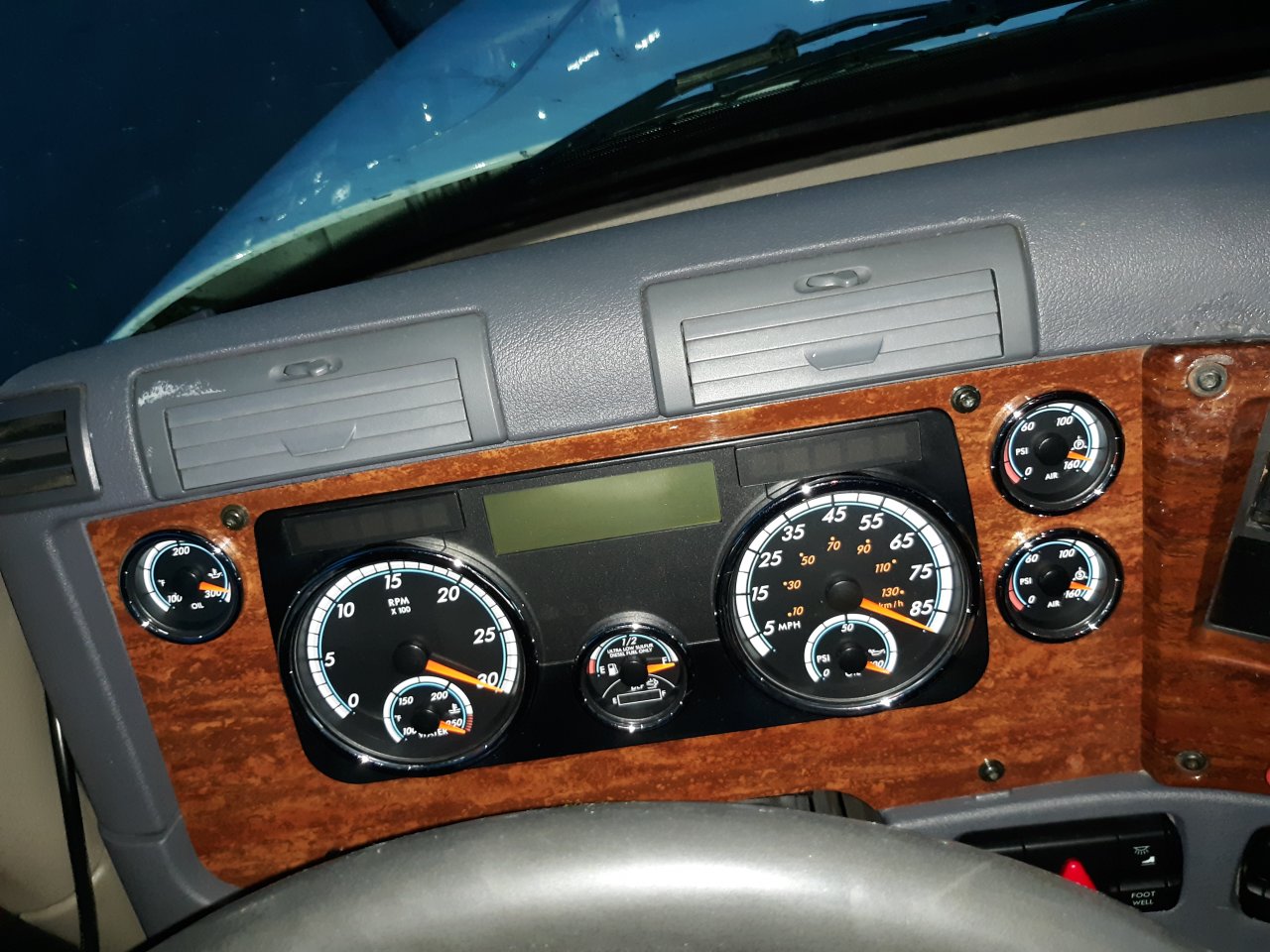

    I've got a 2016 freightliner cascadia, the horn wouldn't stop going off randomly so I pulled the fuse, now my dash isn't lighting up. The accelerator isn't working either and gauges arent responding. How do I fix this?


    Attached Files:

    Lt89lee, Sep 16, 2019
    Lt89lee, Sep 16, 2019
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Sep 16, 2019 #2
    InTooDeep

    InTooDeep Donner party survivor

    4,981
    37,363
    Jan 17, 2016
    Carmichael CA
    0
    Did you put the fuse back in?

    InTooDeep, Sep 16, 2019
    InTooDeep, Sep 16, 2019
    #2
    truckdriver31 Thanks this.
  4. Sep 16, 2019 #3
    Lt89lee

    Lt89lee Bobtail Member

    3
    0
    Sep 15, 2019
    0
    When I do the ###### horn goes off again. So I have it out right now. Do you think that'll fix the dash? What could be the issue with the horn?

    Lt89lee, Sep 16, 2019
    Lt89lee, Sep 16, 2019
    #3
  5. Sep 16, 2019 #4
    wichris

    wichris Road Train Member

    4,243
    8,447
    Jan 17, 2011
    0
    SAM cab module

    wichris, Sep 16, 2019
    wichris, Sep 16, 2019
    #4
    Lt89lee and magoo68 Thank this.
  7. Sep 16, 2019 #5
    magoo68

    magoo68 Road Train Member

    3,393
    5,385
    Jun 11, 2011
    st malo mb canada
    0
    That’s what was wrong when my horn started blowing , lights flashing, plus wipers going full blast.. That’s when I found out most cascadias have a improperly installed windshield and water leaks into the computers and fuse area. 1 tow and 7,000 dollars later I was fixed

    magoo68, Sep 16, 2019
    magoo68, Sep 16, 2019
    #5
    mhyn and Lt89lee Thank this.
  8. Sep 16, 2019 #6
    Lt89lee

    Lt89lee Bobtail Member

    3
    0
    Sep 15, 2019
    0
    Makes sense, my windshield has been leaking

    Lt89lee, Sep 16, 2019
    Lt89lee, Sep 16, 2019
    #6
  9. Sep 16, 2019 #7
    QUALITYTRUCK

    QUALITYTRUCK Road Train Member

    1,801
    1,762
    Jun 14, 2009
    romulus,mi
    0
    Usual culprit is "clock spring" mounted under steering wheel first. Unfortunately must be done with laptop.

    QUALITYTRUCK, Sep 16, 2019
    QUALITYTRUCK, Sep 16, 2019
    #7
    magoo68 and Lt89lee Thank this.
  10. Sep 16, 2019 #8
    Rubber duck kw

    Rubber duck kw Road Train Member

    6,092
    17,685
    Dec 9, 2017
    0
    Find the horn, apply a side cutters to the ground wire, put the fuse back in and keep on driving, that's how I'd fix it.

    Rubber duck kw, Sep 16, 2019
    Rubber duck kw, Sep 16, 2019
    #8
    86mechanic and mhyn Thank this.
  11. Sep 16, 2019 #9
    mhyn

    mhyn Road Train Member

    4,255
    4,510
    Dec 29, 2008
    Northridge, CA
    0
    I had similar situation. After rain horn started with windshield washer . I pulled connector from horn. Washer pump worked long and died. I put plastic piece on sam cab module and rerouted wires that come from id lights of roof. I made them to go lower of module then rise up. plus I cut some insulation and water now go strait down. no way to stop the leak but its possible to make water flow changes )))

    mhyn, Sep 16, 2019
    mhyn, Sep 16, 2019
    #9
    uncleal13, 86mechanic, QUALITYTRUCK and 1 other person Thank this.
  12. Sep 21, 2019 #10
    truckdriver31

    truckdriver31 Road Train Member

    6,989
    8,352
    Sep 18, 2013
    0
    most new freightliners have a cover over the fuse block to aid it the water run off.

    truckdriver31, Sep 21, 2019
    truckdriver31, Sep 21, 2019
    #10
