Belly Strapping Tool Ideas

Discussion in 'Flatbed Trucking Forum' started by donnielford, Feb 25, 2017.

  1. donnielford

    donnielford Bobtail Member

    1
    0
    Feb 25, 2017
    0
    I recently joined the skateboard gang, no issues besides D.O.T around my area is getting more strict on belly straps...so what kind of belly strapping tools have y'all came up with? Need ideas so I can make my own...doesn't seem to be anything on the market so any and all ideas I am willing to consider, because not every place breaks the load down for belly strapping purposes...

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. ChaoSS

    ChaoSS Road Train Member

    3,338
    6,755
    Sep 20, 2014
    0
    I like a piece of rebar, it gets through smaller areas than other things I've seen and if you are a little bit clever you can even get it to bend as needed with the strap if you can't go straight through.

    Riprap, FerrissWheel and donnielford Thank this.
  4. skellr

    skellr Road Train Member

    8,737
    12,184
    Jul 17, 2011
    The Village, Portmeirion
    0
    Keep an eye out for some 2" metal banding. It's stiff enough to push through the small gaps and rolls up decent enough for storage.

    FerrissWheel and donnielford Thank this.
  5. Razororange

    Razororange Road Train Member

    2,453
    23,218
    Dec 20, 2011
    Milwaukee, WI
    0
    4-5 feet long piece of 3/8 steel rod. Bend a 5" wide piece at one end at a 90* angle. Bend a Triangle Handle into the other end and weld it back on itself. Make sure the handle and strap holder are parallel.

    donnielford Thanks this.
  6. Boardhauler

    Boardhauler Road Train Member

    1,688
    3,202
    Dec 21, 2008
    Ballin' in it for Shakey
    0
    10' piece of 1/2" copper pipe, flatten one end & drill a hole in it. Most times I can push the strap through, if not I'll zip tie it to the hole & pull it.

    fargonaz and donnielford Thank this.
  7. Espressolane

    Espressolane Road Train Member

    17,007
    102,653
    Nov 21, 2009
    Just south of the north 40
    0
    About 20 feet of 2 inch metal banding material.

    Flexible to bend around things, Flat, so it fits into small spaces. Strong, wont break and will pull chains or straps.

    Easy to bend a hook in one end. In rare situations If need be, a zip tie or some duct tape will make sure and keep things together.

    Roll it up when done, wrap a bungee around it and toss into tool box.

    Have had the same one going on 12 years.
    Think it was a cast iron pipe place that I picked up the stuff.

    Last edited: Feb 25, 2017
    tucker and donnielford Thank this.
  8. Riprap

    Riprap Light Load Member

    286
    1,979
    May 31, 2014
    Saginaw, MI
    0
    I use a simple piece of 6ft x 3/8" steel fuel line with a J bend on one end to pull chains and a L bend on the other to push or pull straps.
    It's flexible enough to contort between different layers of a load that aren't a straight shot across the trailer, but strong enough that the J&L bends don't easily lose their shape (unless you yank the snot out of it).
    I also use it to snag edge protectors off the top of load after I'm unstrapped and ready to deliver. IMG_0300.JPG

  9. street beater

    street beater Road Train Member

    4,578
    20,669
    Apr 18, 2014
    cold as hell, MN
    0
    I use a piece of all thread rod, bent off at one end

    donnielford Thanks this.
  10. Razororange

    Razororange Road Train Member

    2,453
    23,218
    Dec 20, 2011
    Milwaukee, WI
    0

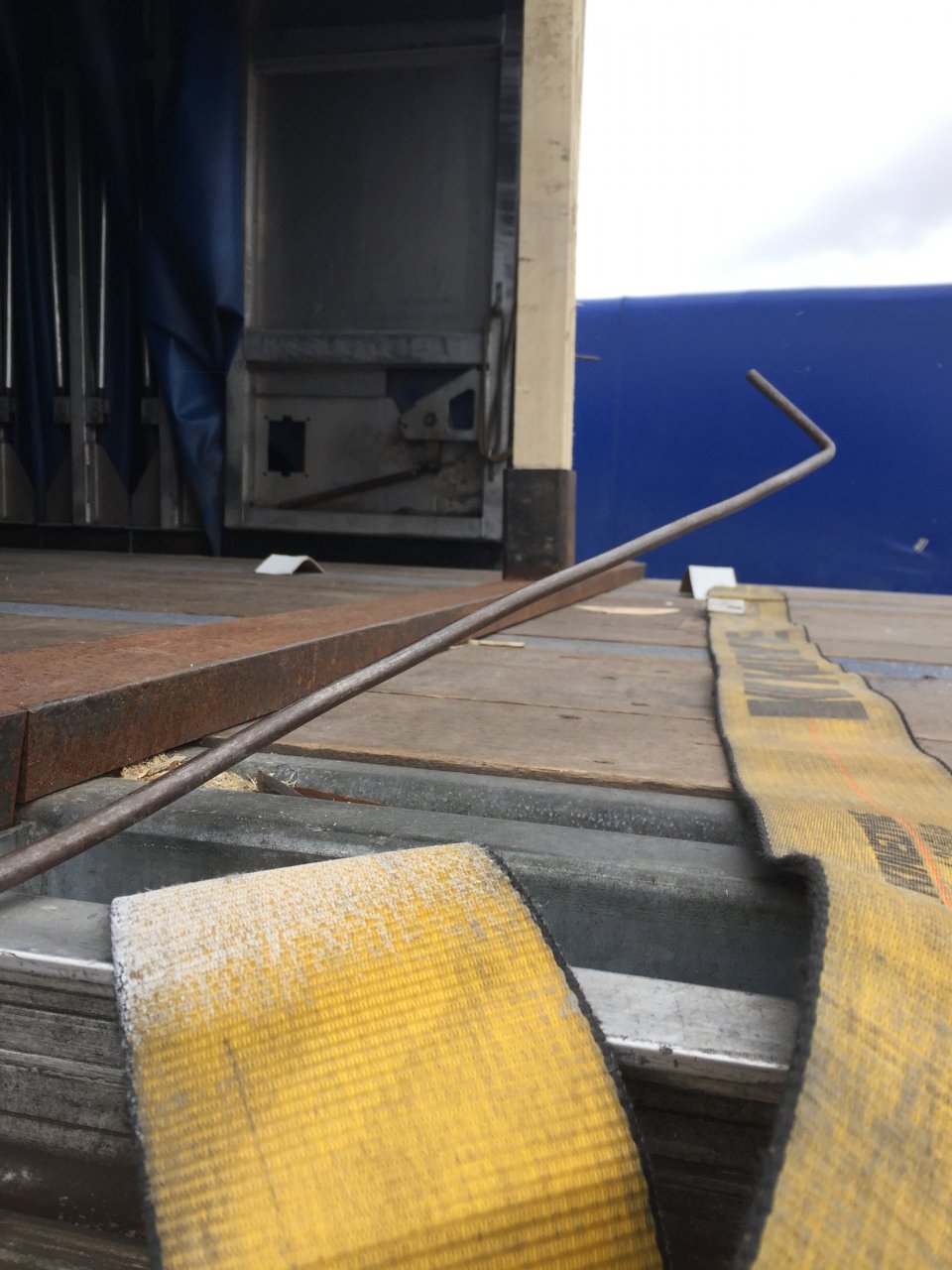

    This is basically what I was describing earlier.

    Riprap and johndeere4020 Thank this.
  11. FerrissWheel

    FerrissWheel Road Train Member

    1,993
    5,896
    Dec 23, 2015
    NV
    0
    Broom handle. But I think I'll be stealing @Riprap s idea.
