Battery cables

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by earnies2, Jan 28, 2018.

  1. earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    Well the other day I was underneath my truck just having a look and I happened to notice the wires on my starter are corroded I also noticed that the wire insulation is exposed ware the terminals are and that's all so corroded I also noticed the positive wire at the altonater is corroded. The truck starts fine it started when it was 1 degree last week....so my question is do I put a new starter in and all new battery cables in? Can i purchase new cables from international pre made? Or should i buy bulk and crimp them my self? Does anyone what gauge the main battery cables are?

    Steel Dragon Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. buddyd157

    buddyd157 Road Train Member

    13,506
    34,549
    May 25, 2017
    under a shade tree
    0
    you could buy your own cables, and cut them to the size you need. may be cheaper than from the dealership, but then, how often does anyone have to replace cables?

    i'd also highly recommend some sort of (like) battery coating terminal spray, to protect the cable ends from moisture/corrosion. i have a can of such, and it is red (the spray chemical) . i got mine at (i think) pep boys.

    sorry, off the top of my head, i can't say what gauge the cable should be.

    Steel Dragon Thanks this.
  4. xsetra

    xsetra Road Train Member

    5,094
    6,941
    Aug 21, 2011
    0
    2/0 size wire.
    Your starter should be ok.
    You can get cables from most auto parts store.

    Steel Dragon Thanks this.
  5. uncleal13

    uncleal13 Road Train Member

    3,797
    6,293
    Apr 9, 2009
    Humboldt, Sk
    0

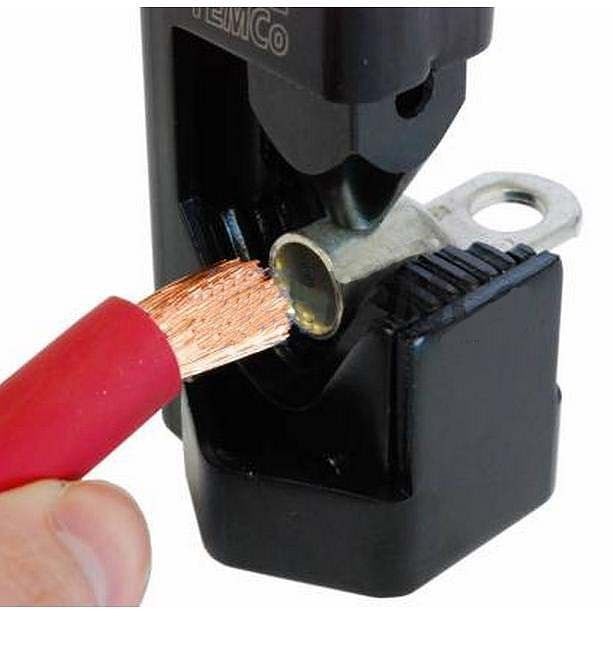

    I make my own. I use a crimper that you hit with a hammer. Does a nice job.

  6. AModelCat

    AModelCat Road Train Member

    28,868
    154,541
    Jul 7, 2015
    Canuckistan
    0
    Why change the starter? What's wrong with it?

    If you're gonna make your own cables I'd put heat shrink with sealant over the crimped area of the lug to keep moisture out of the wire.

    Steel Dragon, earnies2 and xsetra Thank this.
  7. BoxCarKidd

    BoxCarKidd Road Train Member

    4,418
    6,432
    Aug 26, 2014
    0
    You really need to shop that as the mark ups can be crazy like the glass industry.
    Size will change with the number of cables. Normally replace with the same. At one time I bought cable from a welding supply company. There is a truck parts distributor in my area that custom makes cables at a fair price. See what is available in your area. May be better off to make your own as mentioned.

    Steel Dragon and xsetra Thank this.
  8. Heavyd

    Heavyd Road Train Member

    7,750
    6,184
    Feb 4, 2009
    0
    Most of that corrosion will be surface face. You can just disconnect your batteries, then remove your starter and alternator cables and clean them with a wire wheel or even just a barbecue brush to remove it. Then smear dielectric grease over them and reinstall. That is probably all you need. This is regular maintenance that needs to be done every couple years anyway.

    Last edited: Jan 29, 2018
  9. earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    You just made me remember i have one of thoes tpols i use it to swag cable ends thanks

    uncleal13 and Steel Dragon Thank this.
  10. earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0

    The exposed wire is realy corroded i would feel beter replacing them the celoinoid connections are realy rusted im willing to bet the small termanal will break when i remove it maby i can save the starter and replace just the celoinoid

    Steel Dragon Thanks this.
  11. Steel Dragon

    Steel Dragon Road Train Member

    2,681
    2,833
    Nov 23, 2015
    0
    If it ain't broke..don't fix it!
