Any help with these codes? Truck wont start.

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by omeeze, Nov 7, 2020.

  1. Nov 7, 2020 #1
    omeeze

    omeeze Bobtail Member

    9
    3
    May 18, 2018
    0

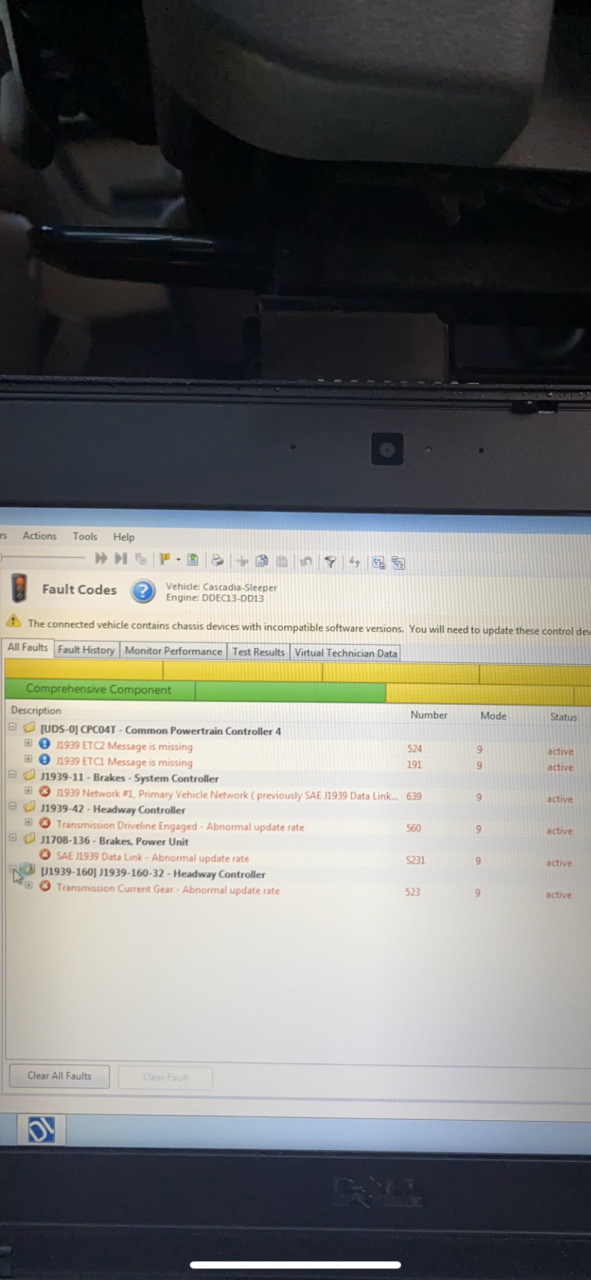

    Was sent a bigroad eld to plug into my ecm port. Connected got some strange fluctuations with my gauges, now truck wont start. Had a mechanic come out and hook up to computer, all these codes wont clear. Any ideas? Is my ecm cooked? 2015 Cascadia DD13. Any help greatly appreciated.
    SPN 524 FMI 9
    Spn 191 FMI 9
    SPN 639 FMI 9
    SPN 569 FMI 9
    SPN S231 FMI 9
    SPN 523 FMI 9


    Attached Files:

    omeeze, Nov 7, 2020
    omeeze, Nov 7, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 7, 2020 #2
    AModelCat

    AModelCat Road Train Member

    28,845
    154,260
    Jul 7, 2015
    Canuckistan
    0
    Did you unplug the ELD and try to start the truck? I've seen some devices spam up the datalink when plugged in but the truck works fine once its disconnected.

    AModelCat, Nov 7, 2020
    AModelCat, Nov 7, 2020
    #2
    omeeze Thanks this.
  4. Nov 7, 2020 #3
    omeeze

    omeeze Bobtail Member

    9
    3
    May 18, 2018
    0
    Yes. i unplugged it, and still wont start. Checked all fuses. Turned main power off for over 30 minutes. Still wont start. Interesting the fuel gauge stays in its place when truck is turned off. But the gauge is alive and cycles from E to F when you turn in “on” position?
    Any tricks to try?

    omeeze, Nov 7, 2020
    omeeze, Nov 7, 2020
    #3
  6. Oct 28, 2022 #5
    Thisisme93

    Thisisme93 Bobtail Member

    2
    0
    Apr 12, 2021
    0
    I know this is old post but wondering if you ever resolved these issues? Im having identical codes and problems. Thank you in advance!

    Thisisme93, Oct 28, 2022
    Thisisme93, Oct 28, 2022
    #5
  8. Nov 11, 2022 #5
    MWTechGuy

    MWTechGuy Bobtail Member

    17
    6
    Nov 8, 2022
    0
    All the codes relate to J1939 messaging. Specifically timeout/missing (FMI 9 per SAE). Are you having similar fluctuations/dropouts on dash? I'd be checking the backbone and unplugging anything "extra" on the network to test. A lot of those are between ECM/TCM so it could be ECM issue related...

    MWTechGuy, Nov 11, 2022
    MWTechGuy, Nov 11, 2022
    #5
  9. Jul 26, 2024 #6
    omeeze

    omeeze Bobtail Member

    9
    3
    May 18, 2018
    0
    Kinda late, but this ended up being a shot TCM. Transmission control module.

    omeeze, Jul 26, 2024
    omeeze, Jul 26, 2024
    #6
