Airbag not seated right?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by HopeOverMope, Nov 29, 2018.

  1. HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,210
    Feb 25, 2016
    I-20 LOUISIANA
    0

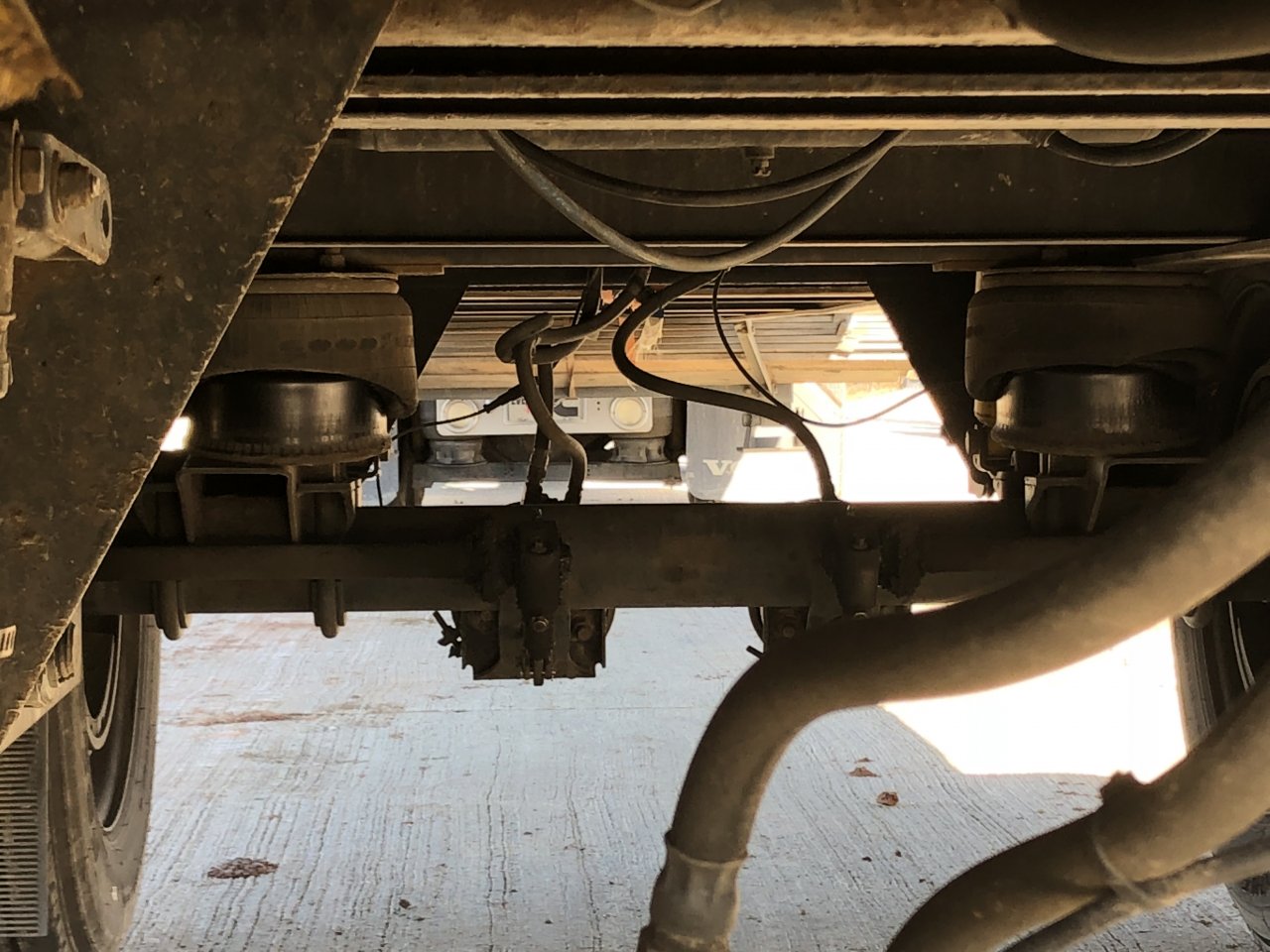

    1B35FBEB-68DB-4EF6-B0F8-9164EBA6F301.jpeg had to make a downhill off road delivery today. After looking over the truck I noticed my front axle trailer airbags don’t look seated right anymore. This isn’t normal right?

    I’ve let all the air out the tanks back there & the bags and I’m trying to pry the bag back over. It wasn’t leaking air but appeared to be pinched in such a way that a good bump would pop it

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,210
    Feb 25, 2016
    I-20 LOUISIANA
    0
    NEVERMIND! I was able to get it. Had to let the air out the tanks, then crack a line loose to the bags, let it all drain, then I guess with trailer trailer completely flat on all four bags, it leveled itself back out once the new air got delivered.

    Thanks

    Last edited: Nov 29, 2018
    stillwurkin and AModelCat Thank this.
  4. swaan

    swaan Road Train Member

    2,942
    4,374
    Jul 12, 2009
    BC canada
    0
    Bag foldage. Nice!!

    Usually cured by overinflation. Or just drive and they will cure themselves .

    HopeOverMope Thanks this.
  5. Luwi67

    Luwi67 Heavy Load Member

    746
    484
    Oct 24, 2012
    Long island
    0
    What swaan said.
    That happens to me once in a while on the rear spread. I just pull the pin that attaches the leveling valve and raise the lever to let air in till the bag unfolds.
    I always feared if I just drove it till it fixed itself I would potentially pinch or damage the bag.

    HopeOverMope Thanks this.
  6. Heavyd

    Heavyd Road Train Member

    7,749
    6,184
    Feb 4, 2009
    0
    I'm like that too early in the morning.

  7. lester

    lester Midwest's #1 Feed Hauler

    2,914
    7,842
    Jan 2, 2012
    NW, Iowa
    0
    I second that you could have just taken the leveling valve lever loose and over inflated the bags

    stillwurkin and HopeOverMope Thank this.
  8. HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,210
    Feb 25, 2016
    I-20 LOUISIANA
    0
    Yeah in hindsight that would of been the simpler fix.

  9. lester

    lester Midwest's #1 Feed Hauler

    2,914
    7,842
    Jan 2, 2012
    NW, Iowa
    0
    That's a trick that will come in handy on the truck for a few different things. Main being a trailer that is sitting to high

    HopeOverMope Thanks this.
  10. I glide 47

    I glide 47 Road Train Member

    1,426
    1,523
    Jun 3, 2017
    0
    Had a lift axle that done that not no more problems solved by restricting the exhaust port let air out slower maintains pressure in side of the bags as billow. s. Lift

  11. stillwurkin

    stillwurkin Road Train Member

    1,756
    2,856
    Dec 2, 2017
    0
    Empty, no weight of a load..right? Well loaded would probably work too, just would snap more when it straightened out.

    HopeOverMope Thanks this.
