Air suspension bag wear

Discussion in 'Questions From New Drivers' started by Wtxsandman, Jan 13, 2024.

  1. Wtxsandman

    Wtxsandman Bobtail Member

    3
    5
    Jan 13, 2024
    0

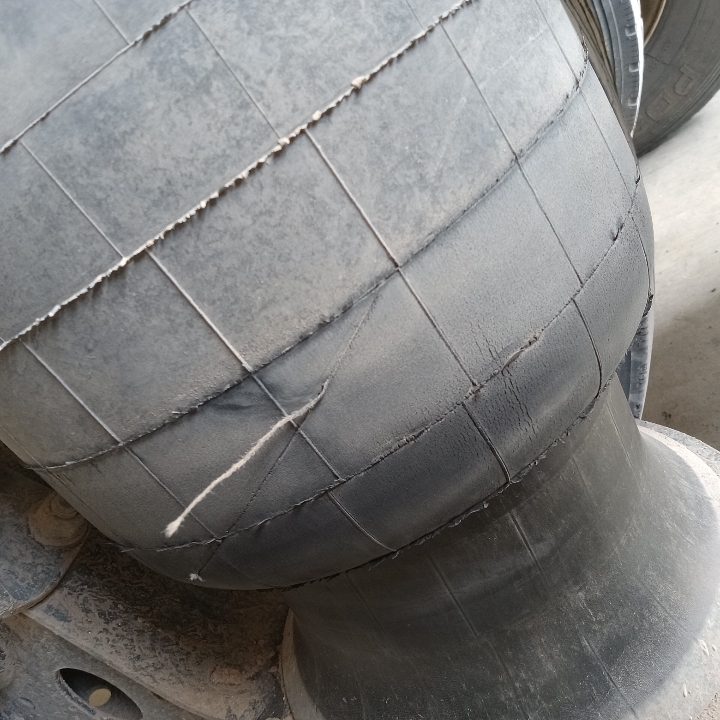

    Does anyone have any information if the air bag has wear marks? Like the strings exposed or broken, if that’s a violation or does it have to be a crack or leaking air?

    nextgentrucker Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Wtxsandman

    Wtxsandman Bobtail Member

    3
    5
    Jan 13, 2024
    0
  4. Iamoverit

    Iamoverit Road Train Member

    1,539
    3,326
    Oct 31, 2023
    0
    I wouldn't worry about it but if it bothers you trim the string flush with the bag.

    Rideandrepair, Freddy57 and AModelCat Thank this.
  5. silverspur

    silverspur Road Train Member

    1,508
    6,765
    Sep 26, 2012
    0
    Fix the problem before it becomes a problem.

    It only takes about an hour to change if the part is available.

    201, JB7, nextgentrucker and 1 other person Thank this.
  6. Wtxsandman

    Wtxsandman Bobtail Member

    3
    5
    Jan 13, 2024
    0
    I changed them. Just didn’t have my OOS criteria book on hand and needed to make a decision. I think I made the right choice. Thanks

  7. nextgentrucker

    nextgentrucker Heavy Load Member

    894
    698
    Sep 25, 2023
    Port Saint Lucie, Fl
    0
    So you just cut it?

  8. 201

    201 Road Train Member

    12,047
    24,587
    Apr 16, 2014
    high plains colorado
    0
    Good call, POW,,when an air bag blows, and the fun stops there. The "string" is no different than a cord on a tire, clearly a weak spot. They look a bit weather checked anyway, I'd think that would raise a red flag at inspection. One more thing, looks like a lot of air in that bag, is the ride adj. lever correct?

    North Pole Nightmare and MACK E-6 Thank this.
  9. Gliding ProStar

    Gliding ProStar Heavy Load Member

    860
    6,132
    Nov 12, 2016
    Waxahachie, Texas
    0
    You are correct. There is either a ton of air in that bag or the suspension is unloaded to the max.

    If the OP's air bags are normally riding like this I would inspect the leveling valve adjustment and the rear suspension ride height like suggested.

    North Pole Nightmare, 201 and MACK E-6 Thank this.
