2013 Freightliner Cascadia DD15 Oil pan removal

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by CDL CPL, Sep 10, 2018.

  1. Sep 10, 2018 #1
    CDL CPL

    CDL CPL Light Load Member

    186
    63
    Aug 14, 2017
    Iowa
    0
    Can someone tell me how to remove the oil pan on a 2013 Freightliner Cascadia DD15? I got it off and it's jacked up but there is minimal room down there to slide it out. Does it come out through the front or the passenger side.
    Any help would be much appreciated!! Thanks

    CDL CPL, Sep 10, 2018
    CDL CPL, Sep 10, 2018
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Sep 10, 2018 #3
    FlyingA

    FlyingA Bobtail Member

    46
    23
    Jun 3, 2018
    Sacramento, Ca
    0
    I will usually let the axle hang down with stands on frame. It will come out of the front.

    FlyingA, Sep 10, 2018
    FlyingA, Sep 10, 2018
    #3
    CDL CPL Thanks this.
  4. Sep 10, 2018 #3
    spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    Put a jack between right front spring and frame and raise the frame to give extra room to slide under front crossmember.

    spsauerland, Sep 10, 2018
    spsauerland, Sep 10, 2018
    #3
    Wagerjim, A5¢, CDL CPL and 1 other person Thank this.
  5. Sep 10, 2018 #4
    CDL CPL

    CDL CPL Light Load Member

    186
    63
    Aug 14, 2017
    Iowa
    0
    Just enough to get the tires off the ground right?

    CDL CPL, Sep 10, 2018
    CDL CPL, Sep 10, 2018
    #4
  7. Sep 10, 2018 #5
    spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0

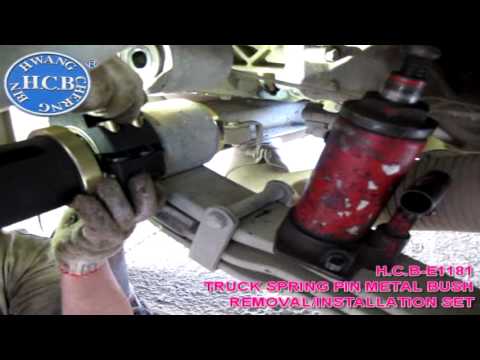

    Put jack like this but closer to center of spring to take weight off spring and raise frame up so axle stays same height giving more room between axle and crossmember.

    spsauerland, Sep 10, 2018
    spsauerland, Sep 10, 2018
    #5
    A5¢ and CDL CPL Thank this.
  8. Sep 10, 2018 #6
    CDL CPL

    CDL CPL Light Load Member

    186
    63
    Aug 14, 2017
    Iowa
    0

    OMG that helps!! Thank you for the picture nowhere in the manual does it say something like that..them sob..many thanks to you!!

    CDL CPL, Sep 10, 2018
    CDL CPL, Sep 10, 2018
    #6
    A5¢ and spsauerland Thank this.
  9. Nov 10, 2018 #7
    chillwill809

    chillwill809 Bobtail Member

    1
    0
    Nov 10, 2018
    0
    so do we have to loosen anything cause i have the same problem base off the photo the bottle jack is between the leaf spring and frame

    chillwill809, Nov 10, 2018
    chillwill809, Nov 10, 2018
    #7
  10. Dec 4, 2018 #8
    duanerasmusson

    duanerasmusson Bobtail Member

    1
    1
    Dec 4, 2018
    0
    also remove shock so spring can travel

    duanerasmusson, Dec 4, 2018
    duanerasmusson, Dec 4, 2018
    #8
    A5¢ Thanks this.
