2009 Volvo d13 crankcase pressure sensor

Discussion in 'Volvo Forum' started by GeorgeStoenchev, May 24, 2016.

  1. May 24, 2016 #1
    GeorgeStoenchev

    GeorgeStoenchev Light Load Member

    70
    13
    Sep 21, 2014
    0
    Hi guys I need your help again. I have fault crankcase sensor and my question is where is located?

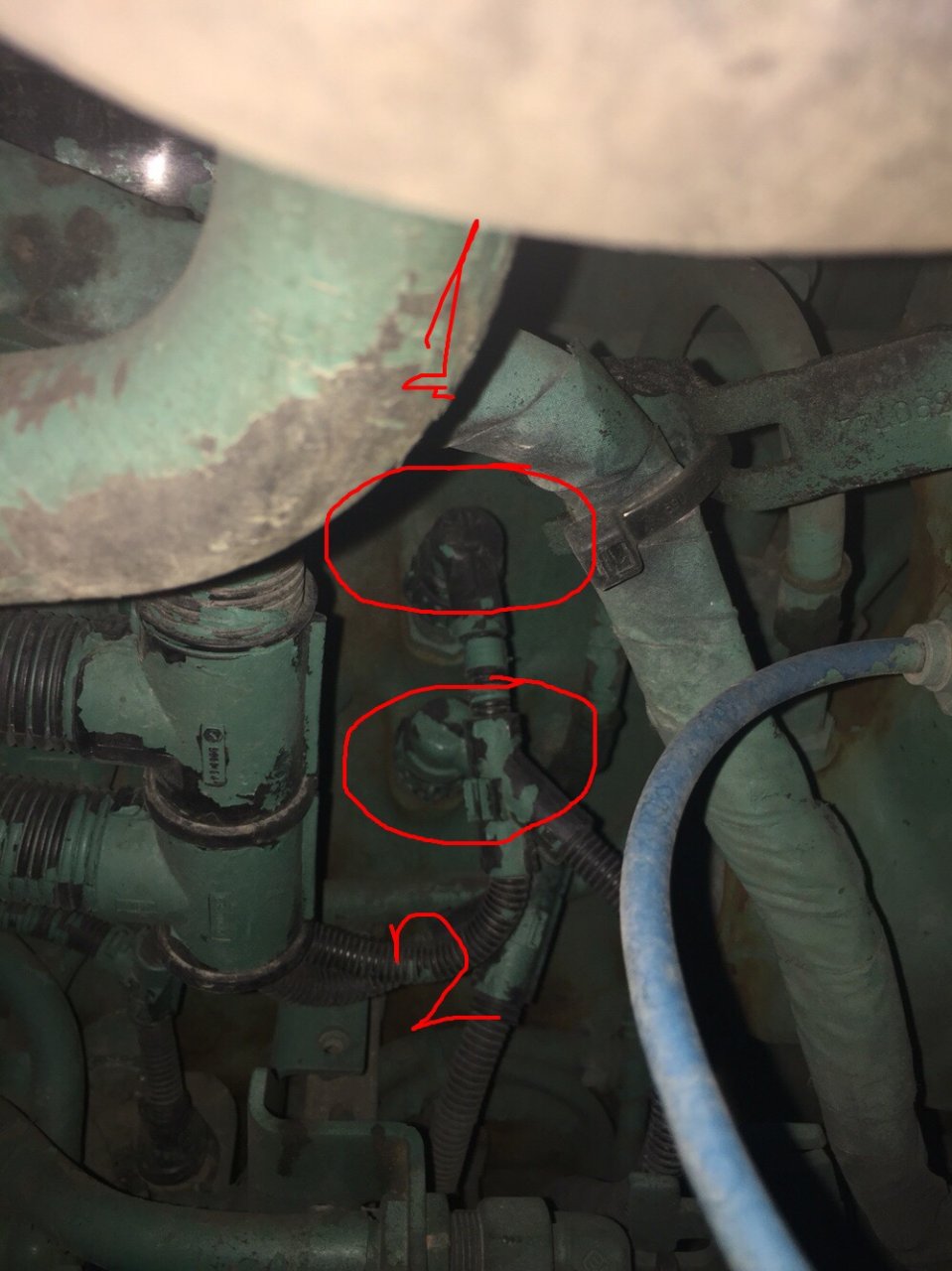

    As much as I know is on driver side between air compressor and engine ecm. There are two sensors upper is oil pressure and lower is crankcase pressure sensor.

    Is crankcase pressure sensor and oil pan pressure sensor is same thing ?

    Part #
    21634017

    Thank you in advance


    Attached Files:

    GeorgeStoenchev, May 24, 2016
    GeorgeStoenchev, May 24, 2016
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 24, 2016 #2
    Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,958
    Dec 6, 2014
    Los Angeles, Ca
    0
    Only advise I can give is remove the plug and look wich one is the right sensor. They both will not be the same style plug. I had mine replaced by the dealer once.

    Socal Xpress, May 24, 2016
    Socal Xpress, May 24, 2016
    #2
    Matt1924 Thanks this.
  4. May 25, 2016 #3
    Mudman78

    Mudman78 Light Load Member

    106
    108
    May 23, 2016
    0
    Oil pressure sensor has a black connector. Crankcase pressure sensor has a yellow connector.

    Mudman78, May 25, 2016
    Mudman78, May 25, 2016
    #3
    QUALITYTRUCK, KB3MMX and Socal Xpress Thank this.
