‘65 Ford H series cab over

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by jazzedman, Apr 24, 2020.

  1. jazzedman

    jazzedman Bobtail Member

    38
    8
    Feb 15, 2019
    0
    Anybody familiar with this truck? My main question is do I have to install the oil deflector(?) on the axle ends? If they are in place, how does the oil get into the hubs and subsequently to the bearings?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. SmallPackage

    SmallPackage Road Train Member

    5,278
    16,471
    Dec 20, 2019
    Marion Texas
    0
    Not sure what you are asking but most of the trucks of that vintage had grease packed wheel bearings on the steer axles. (Just like a car did). If it has a solid steel hubcap with 3 or 4 or 5 bolts holding it on than that is what it has. Stemco type oil filled bearings were very rare in those days.
    The drive axle bearings get oil to them the same way all the new trucks do.

    clausland Thanks this.
  4. 201

    201 Road Train Member

    12,052
    24,606
    Apr 16, 2014
    high plains colorado
    0
    2 story Falcon. What kind of axles, do you know?

  5. SmallPackage

    SmallPackage Road Train Member

    5,278
    16,471
    Dec 20, 2019
    Marion Texas
    0

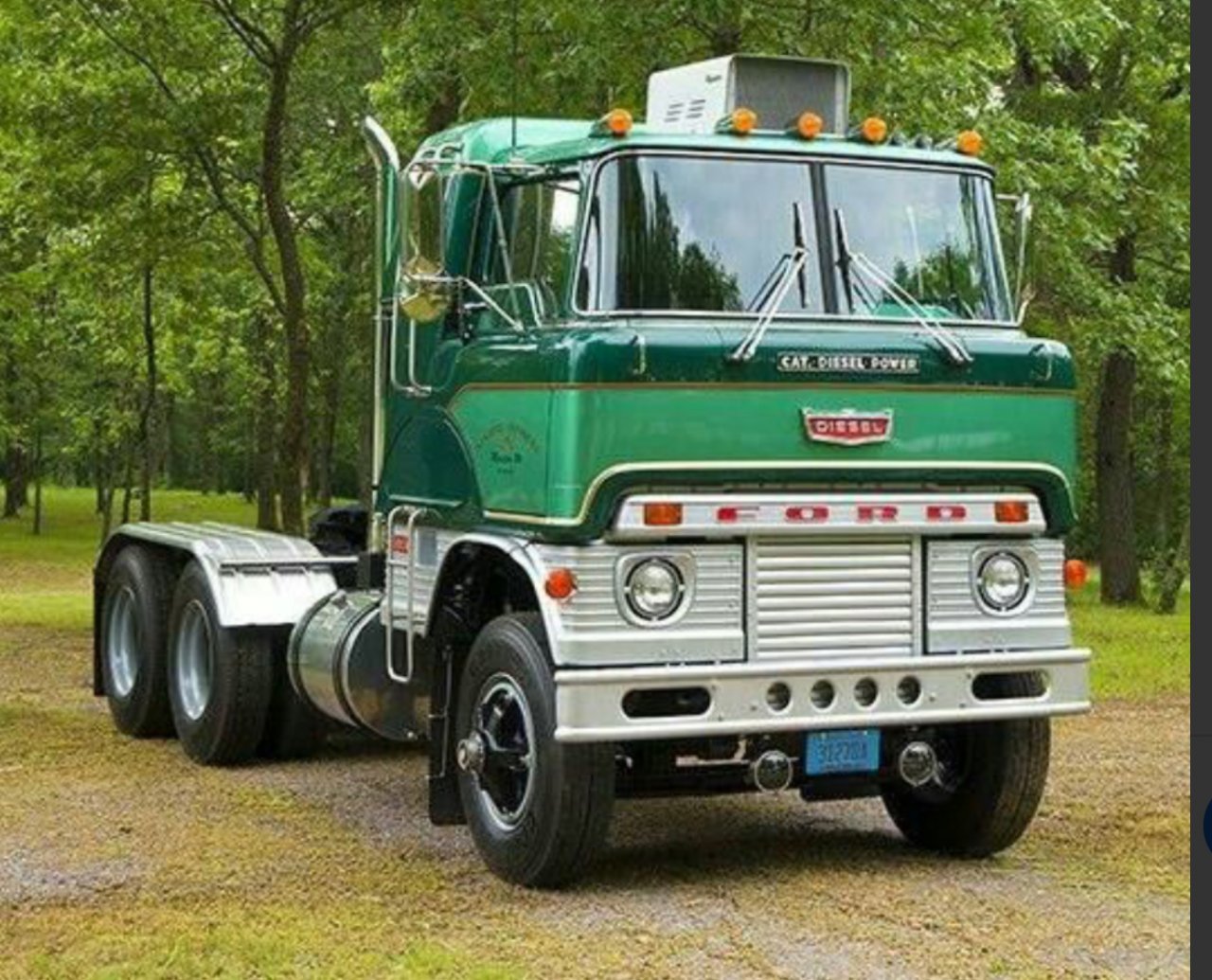

    B25FAA54-B296-45FD-8079-F7C8FEC88C3C.jpeg This one has the centerpoint steering offset and stemco oil filled hub cap and seal.

  6. SmallPackage

    SmallPackage Road Train Member

    5,278
    16,471
    Dec 20, 2019
    Marion Texas
    0
    BD1997B2-7C3C-4DFF-AB9B-F7914363A586.jpeg This one has regular steering offset and grease packed steers.

    clausland, speedyk and 201 Thank this.
  7. 201

    201 Road Train Member

    12,052
    24,606
    Apr 16, 2014
    high plains colorado
    0
    I think I read, the H series was one of the 1st Ford trucks to have a diesel from the factory.

  8. SmallPackage

    SmallPackage Road Train Member

    5,278
    16,471
    Dec 20, 2019
    Marion Texas
    0
    Not sure when the first diesel came out in a Ford. I know a lady that has a ‘65 N series that has an Nh220 743 from birth. The N’s were tighter fit because cab sits much lower.

    201 Thanks this.
  9. SmallPackage

    SmallPackage Road Train Member

    5,278
    16,471
    Dec 20, 2019
    Marion Texas
    0
    1A939733-6B88-48CA-B687-B7E27C806329.jpeg Here’s her truck. She stretched it a little and singled it out on FL airliner rear.

    clausland Thanks this.
  10. jazzedman

    jazzedman Bobtail Member

    38
    8
    Feb 15, 2019
    0
    Sorry, should have specified, the drive axle. It has some type of outer axle seal the looks like it will keep the oil from getting to the bearings. It’s kept in place by the hub/axle shaft studs so you have to have two gaskets.

  11. SmallPackage

    SmallPackage Road Train Member

    5,278
    16,471
    Dec 20, 2019
    Marion Texas
    0
    Are you able to take a picture of it so we oldtimers can see what series rears and hubs it has?

    clausland Thanks this.
